• Model NO.：FBS30
• Lift height：3000~5000mm
• Condition：New
• Wheel Base：2700mm
• Max.Lift Height：3600mm
• Min. Ground Clearance：185mm
• Braking Distance (Full Load)：900m
• Battery Capacity：540ah
• Service Weight：6850kg
• Max.Gradeability：10%
• Min. Turning Radius：4380mm
• The Height of Cab：2426mm
• Front Overhang：730
• Transport Package：Nude Packing, Fixed in Container
• Specification：4130*2000*2537 mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：100sets,Year

Lifting Capacitykg3000Load Centermm500Battery   Voltagev80Braking Distance (full load)m900Overall Lengthmm4130Overall Widthmm2000The max. length of side forkliftmm4262Height   Mast Heightmm2537The Overall Height of Max. liftingmm4368   The height of cabmm2426       Platform heightmm940       Min. ground clearancemm185wheel basemm2700   Track baseFront tiremm1620Rear Tiremm1650Max. lifting heightmm3600Free lifting heightmm90   Fork tilt angleforward°6backward°5Max. lifting speedempty loadmm/s313full loadmm/s260Max. driving speedempty loadkm/h13full loadkm/h11Max. declining speedempty loadmm/s310full loadmm/s410Min. Turning Radiusmm4380Max. Full Load Gradeability%10Operating Weightkg6850Battery CapacityAH540OverhangOverhang Frontmm730Overhang Rear715

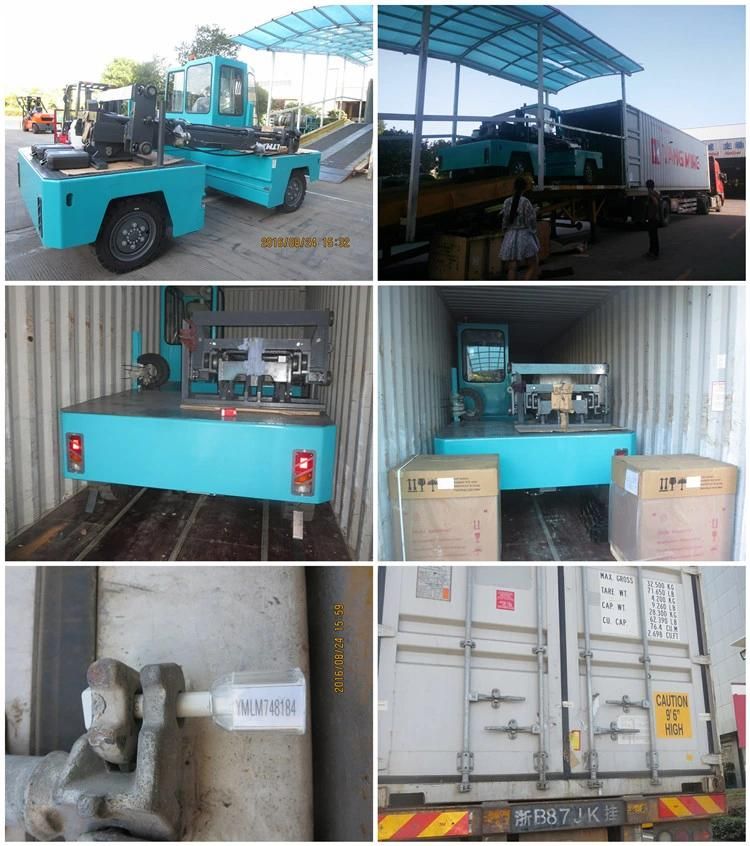

                                                Packing & Shipping
