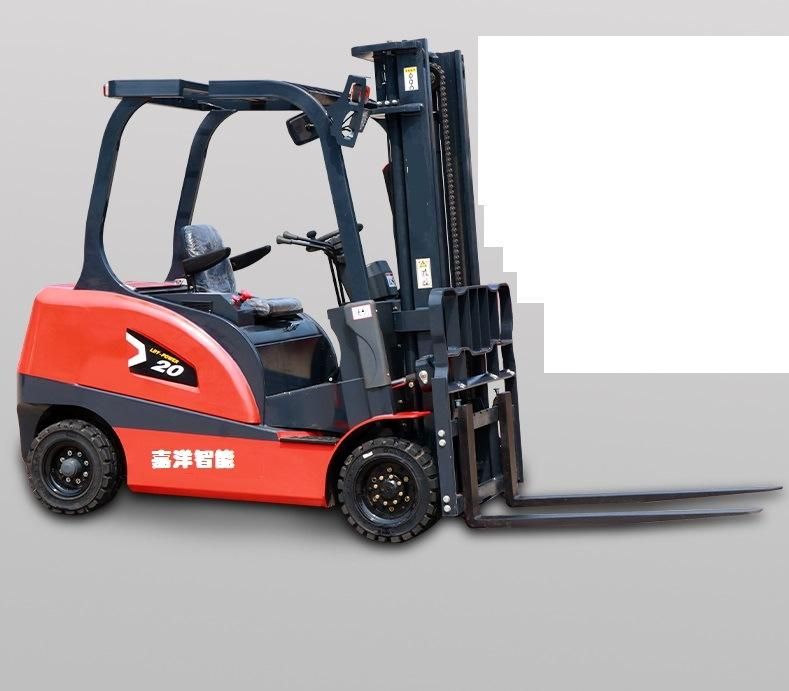

Electric Forklift 2t
Yancheng Jiayang Machinery Co., Ltd.- Cab Location：Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：CP20
- Lift height：3000~5000mm
- Condition：New
- Transport Package：Iron
- Specification：2t
- Trademark：Jiayang
- Origin：China
Description
Model
CPD10
CPD15A
CPD20A
CPD25B
CPD30A
CPD50
Power type
Storage battery
Storage battery
Storage battery
Storage battery
Storage battery
Storage battery
Rated load
kg
1000
1500
2000
2500
3000
5000
Load center distance
mm
480
500
500
500
500
600
Lifting height
mm
3000
3000
4500
3000
3000
3000
Free lifting height
mm
150
150
450
150
150
150
Fork size
mm
920×100×30
1070×100×35
1070×100×40
1070×120×40
1070×120×45
1220×150×55
Door frame dip angle
6/12
6/12
6/12
6/12
6/12
6/12
Min.turning radius
mm
1300
2000
1950
2300
2500
2750
Minimum right channel width
mm
2000
2300
2500
2500
2800
4290
Min .height off the ground
mm
90
90
80/130
90
90
150
Height of retaining feame
mm
1950
2000
2170
2170
2170
2350
Distance from seat surface to top shieid
mm
970
1000
1005
1005
1005
1400
Maximum travel speed
km/h
11
11
11
11
11
14/13
Max.lifting speed
mm/s
340/280
340/280
340/280
340/280
390/360
410/250
Maximum climbing ability
%
12
12
15
15
12
15
overall no fork
mm
1700
2080
2380
2380
2600
2950
overall width
mm
1000
1050
1150
1200
1250
1510
Maximum lifting height of forklift
mm
4000
4000
5000
4000
4000
4180
Gantry height
mm
2020
1990
2080
2080
2080
2180
Front tyre
18×6×121/8
18*6
18*7-8
23×9-10
23×9-15
8.25-5
Rear tyre
15×5×111/4
15*5
18*7-8
18×7-8
18×7-8
7.00-12
Wheelbase
mm
1020
1080
1600
1380
1680
1940
Wheel distance front / back
mm
740/800
890/920
950/960
900/960
1000/980
1250/1200
Self-weight without load, battery
kg
1410
2050
3500
2800
2980
5800
Storage Battey VOltage /Capacity
V/Ah
48
48
60
48
72
80
Motor walking
KW
4
5.5
7.5
10
10
17
Motor lift
KW
3
5.5
8
12
7.5
20
Controller
Curtis
TF
TF
FJ
TF
SZ
control method
AC+DC
AC+DC
AC+DC
AC
DC
AC
battery
160AH
6V×8
60V
2V×24
6V×8
2V×40
240AH
260AH
500AH
240AH
500AH
