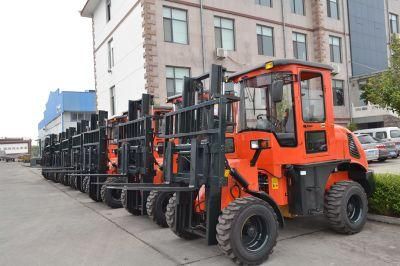

Four Drive off Road Forklift (CPCY 30)

Qingzhou Welift Machinery Co., Ltd.
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Max. Lifting Height：3700 Mm
  • Min. Lifting Height：100 Mm
  • Fork Length：1300 Mm

Base Info

  • Model NO.：CPCY 30
  • Fork Width：150 Mm
  • Model：Xinchai 498 Europe III
  • Place of Origin：Zhejiang China
  • Length：4585 Mm
  • Width：1780 Mm
  • Height：2720 Mm
  • Certification：CE ISO
  • Transport Package：Without Package
  • Specification：CPCY 28
  • Trademark：SWLTD
  • Origin：Mainland, China
  • HS Code：84272090
  • Production Capacity：1000 PCS, Year

Description

                                                     Main Technical  Parameters of  CPCY28ItemParameterNoteRated load (KG)3000
Load center (mm)565
Lifting height (mm)3000
Free lift height (mm)150
Mast tilt angle front/rear (°)6/12
Max lifting speed (full load) (mm/s)372
Running speed (km/h)Advance:I gear/II gear8/16
Backlash:I gear/II gear8/16
Max climbing gradient (%) (full load)50
Max traction (Kgf)2587
Max steering angle (°)±35
Swinging angle of rear axle (°)±12
Min turning radius (mm)4500
External dimensionsLength (mm)4585ToothWidth (mm)1700
Height (mm)2720
Min ground clearance (mm)260
Dead weight (Kg)3268
