• Model NO.：CPCD40
• Lift height：3000~5000mm
• Condition：New
• Tire Type：Pneumatic
• Certification：Ce,ISO
• Fork Size：1070,1220mm
• Weight：6770
• Color：Red, Orange,Blue
• Engine：Optional
• Wheel Base：1400mm
• Travel Speed：15,14 Km,H
• Lifting Speed：15,14 Km,H
• Transmission：Hydraulic,Mechanical
• Transport Package：Naked
• Specification：3091*1485*2250mm
• Trademark：GP
• Origin：China
• HS Code：8427209000
• Production Capacity：500 Units,Month

Basic Info.

Model NO. CPCD40 Lift height 3000~5000mm Condition New Tire Type Pneumatic Certification Ce,ISO Fork Size 1070/1220mm Weight 6770 Color Red, Orange,Blue Engine Optional Wheel Base 1400mm Travel Speed 15/14 Km/H Lifting Speed 15/14 Km/H Transmission Hydraulic/Mechanical Transport Package Naked Specification 3091*1485*2250mm Trademark GP Origin China HS Code 8427209000 Production Capacity 500 Units/Month

Product Description

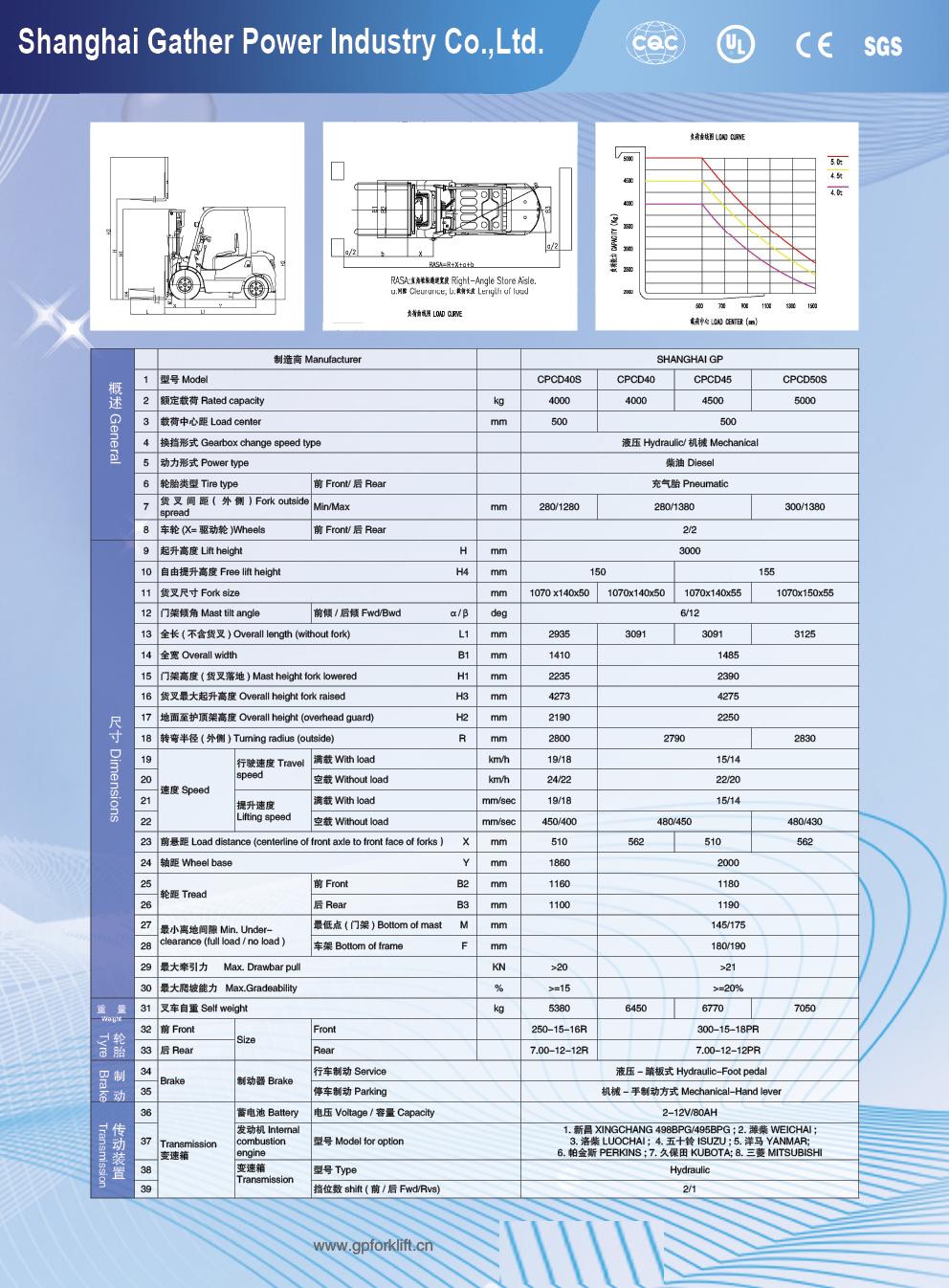

Specific parameters

1. Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92/94/98 engine, and domestic Xinchai 490/495. Economical but powerful enough

2. Transmission: With TCM technology.

3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low tensional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.

4. The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditation.
