Ltmg 6t 7t LPG Gasoline Forklift 6 Ton Forklift with Triplex Mast & Solid Tyres & Forklift Positioner & Side Shifter
Xiamen LTMG Machinery Co., Ltd.- Cab Location：Adjustable
- Type：Powered Pallet Truck
- Power：LP Gas Engine
- Load Capacity：6 Ton
- Fuel：LPG
- Load center：600mm
Base Info
- Lift height：3000mm
- Condition：New
- Fork Size：1220mm*150mm*60mm
- Weight：9150kg
- Engine：Psi
- Wheel Base：2250mm
- Color：Decided by Buyer
- Certificate：EPA ISO CE
- Rated Power：56kw,2200rpm
- Max.Lifting Height：3000mm
- Name：Ltmg 6ton LPG Forklift with Triplex Mast
- Tire：Pneumatic
- Transport Package：Container
- Specification：3450mm*2010mm*2550mm
- Trademark：LTMG
- Origin：China
- HS Code：8427209000
- Production Capacity：800sets,Year
Description
Specification of FD50-70 LPG & Gasoline forkliftModel FG50 FG60 FG70 Power Type LPG LPG LPG Rated Capacity kg 5000 6000 7000 Load Centre mm 600 600 600 Lift Height mm 3000 3000 3000 Fork Size(L×W×T ) mm 1220×150×60 1220×150×60 1220×150×70 Mast Tilt Angle(F/R) Deg 6°/12° 6°/12° 6°/12° Front Overhang (Wheel center to fork face) mm 590 590 595 Ground Clearance(Bottom of mast) mm 200 200 200 Length to face of fork(Without fork) mm 3440 3440 3565 Overall Width mm 2010 2010 2010 Mast Lowered Height mm 2500 2500 2500 Mast Extended Height(With backrest) mm 4415 4415 4415 Overhead Guard Height mm 2430 2430 2430 Turning Radius (outside) mm 3250 3250 3350 Min. insecting aisle mm Travel Speed(Full load) km/h 30 30 30 Lifting Speed(Full load) mm/s 500 500 460 Max.Gradeability (No load/Full load) % 20 20 20 Front Tire mm 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR Rear Tire mm 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR Wheelbase mm 2250 2250 2250 Service weight kg 8150 8750 9750 Battery(Voltage/Capacity) V/Ah 12/120 12/120 12/120 Engine Model PSI4.3L PSI4.3L PSI4.3L Manufacture PSI PSI PSI Rated output/r.p.m. kw 76/2300 76/2300 76/2300 Rated torque/r.p.m. N·m 324/1700 324/1700 324/1700 No.of Cylinder 6 6 6 Bore×Stroke mm 101.6×88.4 101.6×88.4 101.6×88.4 Displacement cc 4300 4300 4300 Fuel Tank Capacity L 125 125 125 Transmission Type Hydraulic Hydraulic Hydraulic Stage FWD/RVS 2/2 2/2 2/2
Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
Packing&Shipping

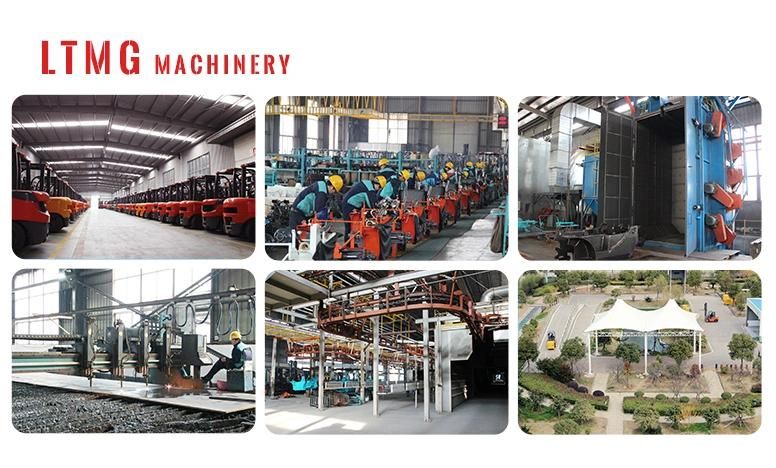

LTMG Factory
After sales service
LTMG always treat after-sale service more important than sale.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
