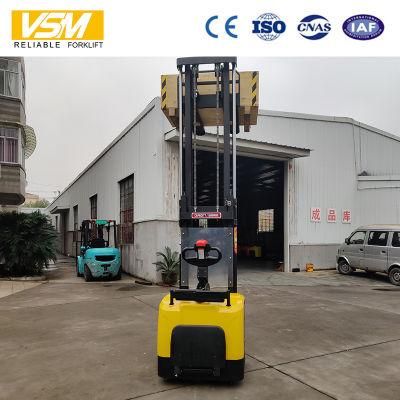

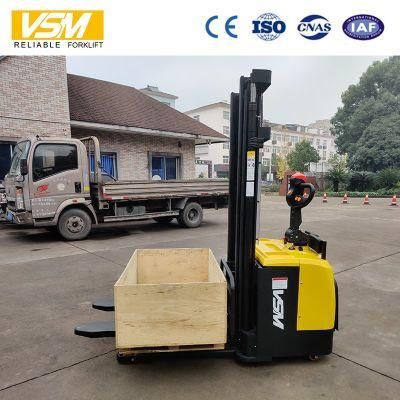

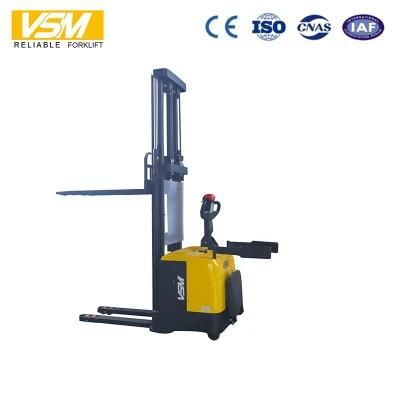

1.2ton 1200kg Economic Warehouse Pallet Stacker
Hangzhou Vans Machinery Co., Ltd.- Cab Location：Not Adjustable
- Type：Electric Stacker
- Power：DC Motor
- Load Capacity：1200kgs
- Fuel：Electric
- Load center：500mm
Base Info
- Model NO.：CD-D12AD
- Lift height：3000mm
- Condition：New
- Operator Type：Standing
- Wheel Type：PU
- Fork Size Lxw：1150X165mm
- Lifting Motor：2.2kw
- Driving Motor：0.75kw
- Battery：24V,210ah
- Transport Package：Exporting Packing
- Specification：1920x800x2080mm
- Trademark：VSM
- Origin：China
- HS Code：8427109000
- Production Capacity：15000 Units,Year
Description
Dimensions14 Lifting height H(mm) 1600/2000/2500/3000 15 Lowest fork height h(mm) 90 16 Fork size LxW mm 1150x165 17 Overall Length(With fork) L1(mm) 1750-1920 18 Overall width B1(mm) 800 19 Overall height H1(mm) 2080/1580/1830/2080 20 Turning Raduis WA(mm) 1688-1768 21 Aisle width for pallets(1000×1200mm) mm 2850 22 Aisle width for pallets(800×1200mm) mm 2770 23 Net Weight kg 518/550/583/616 24 Travelling Speed(laden/unladen) km/h 3.5/4.5 25 Climbing ability(laden/unladen) % 3/6 26 Lifting Speed(laden/unladen) mm/s 80/100 27 Falling Speed(laden/unladen) mm/s 150/120 28 Battery V/Ah 2×12V/135Ah 29 Weight kg 480 30 Lifting motor KW 2.2 31 Driving Motor KW 0.75
