• Model NO.：ES12-12WA
• Lift height：2930mm
• Condition：New
• Rated Loading Capacity：1200kg
• Max. Lifting Height：2930mm
• Min. Lifting Height：100mm
• Fork Length：1150mm
• Fork Width：170mm
• Service Weight：950kg
• Tyre Type：PU
• Travel Speed：5,5.5 Km,H
• Lifting Speed：0.11,0.16 M,S
• Battery Voltage：24V,165ah
• Transport Package：Standard Export Packing
• Specification：1826mm*800mm*2930mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. ES12-12WA Lift height 2930mm Condition New Rated Loading Capacity 1200kg Max. Lifting Height 2930mm Min. Lifting Height 100mm Fork Length 1150mm Fork Width 170mm Service Weight 950kg Tyre Type PU Travel Speed 5/5.5 Km/H Lifting Speed 0.11/0.16 M/S Battery Voltage 24V/165ah Transport Package Standard Export Packing Specification 1826mm*800mm*2930mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

Distinguishing mark
1.1	Manufacturer			EP	EP	EP	EP
1.2	Model designation			ES10-10WA	ES12-12WA	ES14-14WA	ES16-16WA
1.3	Drive unit			Battery	Battery	Battery	Battery
1.4	Operator type			Pedestrian	Pedestrian	Pedestrian	Pedestrian
1.5	rated capacity	Q	kg	1000	1200	1400	1600
1.6	Load center distance	c	mm	600	600	600	600
1.8	Load distance,centre of drive axle to fork	x	mm	688	688	693	693
1.9	Wheelbase	y	mm	1225	1225	1305	1305
Weight
2.1	Service weight (include battery)		kg	925	950	1050	1070
2.2	Axle loading, laden driving side/loading side		kg	640/1285	715/1435	755/1695	780/1890
2.3	Axle loading, unladen  driving side/loading side		kg	630/295	645/305	715/335	730/340
Types,Chassis
3.1	Tyre type Driving wheels/Loading wheels			PU/PU	PU/PU	PU/PU	PU/PU
3.2	Tyre size, driving wheels(diameter×width)		mm	Ф230×75	Ф230×75	Ф230×75	Ф230×75
3.3	Tyre size, loading wheels(diameter×width)		mm	Ф85×70	Ф85×70	Ф85×70	Ф85×70
3.4	Tyre size, caster wheels(diameter×width)		mm	Ф130×55	Ф130×55	Ф130×55	Ф130×55
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1x +1/4	1x +1/4	1x +1/4	1x +1/4
3.6	Track width, front,driving side	b10	mm	538	538	538	538
3.7	Track width,rear,loading side	b11	mm	380/430/515	380/430/515	360/410/495	360/410/495

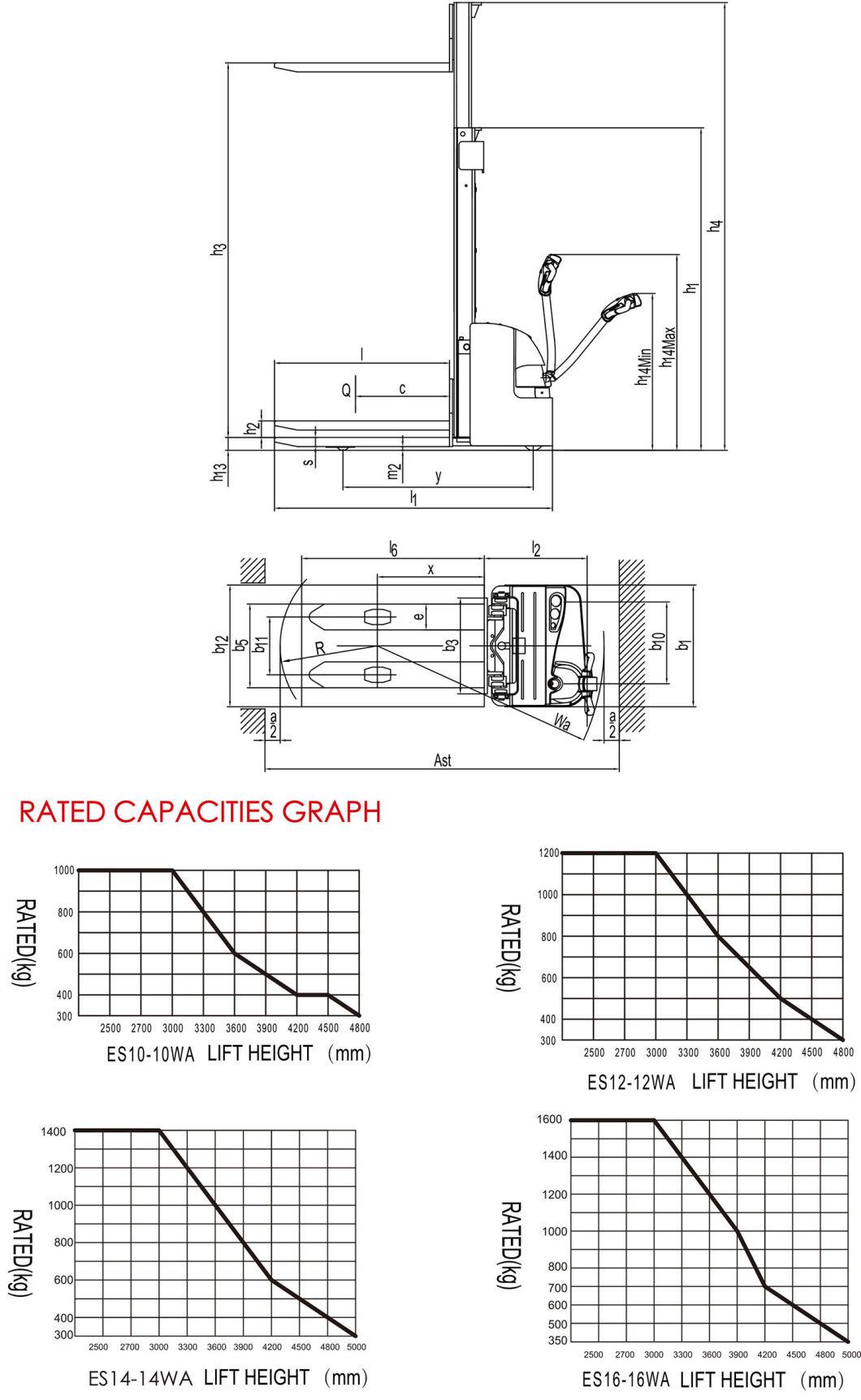

Dimensions
4.2	Height, mast lowered	h1	mm	1970	1970	2030	2030
4.3	Free lift	h2	mm	100	100	100	100
4.4	Lift height	h3	mm	2930	2930	2950	2950
4.5	Height, mast extended	h4	mm	3420	3420	3465	3465
4.9	Height drawbar in driving position min./max.	h14	mm	715/1200	715/1200	715/1200	715/1200
4.15	Lowered height	h13	mm	88	88	88	88
4.19	Overall length	l1	mm	1826	1826	1940	1940
4.20	Length to face of forks	l2	mm	676	676	787	787
4.21	Overall width	b1	mm	800	800	800	800
4.22	Fork dimensions	s/ e/ l	mm	60×170×1150	60×170×1150	60×190×1150	60×190×1150
4.24	Fork carriage width	b3	mm	680	680	680	680
4.25	Distance between fork-arms	b5	mm	550/600/685	550/600/685	550/600/685	550/600/685
4.32	Ground clearance, center of wheelbase	m2	mm	28	28	30	30
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	2333	2333	2465	2465
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2303	2303	2440	2440
4.35	Turning radius	Wa	mm	1463	1463	1589	1589
Performance data
5.1	Travel speed, laden/ unladen		km/ h	5.0/5.5	5.0/5.5	5.0/5.5	5.0/5.5
5.2	Lifting speed, laden/ unladen		m/ s	0.10/0.16	0.10/0.16	0.13/0.16	0.13/0.16
5.3	Lowering speed, laden/ unladen		m/ s	0.19/0.18	0.19/0.18	0.22/0.13	0.22/0.13
5.8	Max. gradeability, laden/unladen		%	8/16	8/16	8/16	8/16
5.10	Service brake type			Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.1	1.1	1.1	1.1
6.2	Lift motor rating at S3 15%		kW	2.2	2.2	3	3
6.3	The maximum allowed size battery		mm	788×180×560	788×180×560	788×180×560	788×180×560
6.4	Battery voltage/nominal capacity K5		V/ Ah	24/165	24/210	24/210	24/230
6.5	Battery weight		kg	165	190	190	210
Addition data
8.1	Type of drive unit			AC	AC	AC	AC
10.5	Steering type			Machanical Steering	Machanical Steering	Machanical Steering	Machanical Steering
10.7	Sound pressure level at the driver's ear		dB (A)	74	74	74	74
