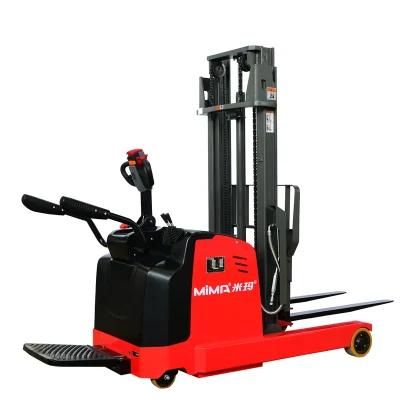

Multi-Direction Reach Truck with Full AC System Mqb Series
Banyitong Science & Technology Developing Co., Ltd.- Type：Stacker
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
- Lift height：7500mm
Base Info
- Model NO.：MQB
- Condition：New
- Drive Motor：AC Motor
- AC Controller：Curtis
- Max. Lifting Height：5000m
- Max. Loading Capacity：2000kg
- Warranty：12months
- Lift Motor：AC Motor
- Operation Type：Stand on
- Transport Package：Standard Packing
- Specification：SGS, ISO
- Trademark：MiMA
- Origin：China
- HS Code：8427109000
- Production Capacity：1000 Units,Year
Description
Multi directional forkliftModel MQB2530 MQB2545SQ Operate type Stand on Stand on Rated capacity kg 2500 2500 Load center mm 500 500 Wheelbase mm 1700 1700 Service weight(incl. battery) kg 3700 3900 Wheel type PU PU Left front wheel, double wheels mm Φ254*65 Φ254*65 Right front wheel, single wheel mm Φ254*135 Φ254*135 Rear drive wheel, single wheels mm Φ380*165 Φ380*165 Rear balance wheel, double wheels mm Φ204*76 Φ204*76 Mast closed height mm 2082 2292 Free lift height mm 80 1320 Lifting height mm 3000 4500 Mast height with backrest mm 3960 5460 Overhead guard height mm 2300 2300 Overall length mm 2250 2300 Overall width mm 1752 1752 Fork size mm 920*120*40 920*122*40 Turning radius mm 1975 1975 Driving motor(S2-60min) kw 5.5AC 5.5AC Lifting motor(S3 15%) kw 8.6AC 8.6AC Battery voltage/capacity V/Ah 48/400 48/400 Battery weight kg 665 665 Brake type Electromagnetic Electromagnetic Steering system EPS EPS
Why choose us
BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".
Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.
Our workshop and warehouse
Many of our models are in stock, for more details please feel free to contact us.
Package and delivery
Exhibition
Why choose us
BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".
Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.
Our workshop and warehouse
Many of our models are in stock, for more details please feel free to contact us.
Package and delivery
Exhibition
