• Condition：New
• Controller Brand：Curtis
• Certificate：Ce
• Power Type：Battery
• Operate Type：Seat
• Rated Capacity：1500-5000kgs
• Lift Motor Type：DC
• Drive Motor：AC Motor
• Brand：Mima
• Color：Red
• Lifting Height：6000mm
• Transport Package：Standard Packing
• Specification：ISO9001
• Trademark：MIMA
• Origin：Hefei
• HS Code：84271090
• Production Capacity：2000 Units,Year

         Model No. MK15MK20MK25MK30MK35StandardPower type BatteryBatteryBatteryBatteryBatteryOperate type SeatedSeatedSeatedSeatedSeatedRated capacityQ(kg)15002000250030003500Load center C(mm)500500500500500WheelWheel type Pneumatic tireSolid tireLoading wheel 5.00-818×7-818×7-818×7-818×7-8Driving wheel 6.00-921×8-921×8-923×9-1023×10-12Wheel tread, drive 9109509609701080Wheel tread, load 930960960960990Number of wheels. -front/rear (X=Drive wheel) 2X / 22X / 22X / 22X / 22X / 2DimensionMast tiltingα/β(º)6/106/106/106/106/10Lift Heighth1(mm)30003000300030003000Height--Free Lifth2(mm)135140145145150Mast  closed heighth3(mm)19951995199521102100Mast extended heighth4(mm)40304030403042564256Height-Overhead guard--mmh6(mm)21002100210021302130Mast Clearanceh8(mm)8585859090Overall Length11(mm)32053410341036203770Length-to Fork Face12(mm)21352340234025502700Wheelbasey(mm)13801505170017001800Front Overhangx(mm)380420425433484Overall Widthb1/b2(mm)11101160116012001330Fork Dimensionsmm1070*100*351070*100*401070*100*451070*125*451070*125*50Fork spreadb5(mm)222-1000222-1000222-1000250-1050250-1050Trurning radiusWa(mm)20002100210023002450FunctionDriving Speed, lode/unload km/h10/1210/1210/1210/1210/12Max. Gradeability -load/unload%14/1514/1514/1514/1514/15Driving Motor  (S2 60)kwAC6.8AC6.8AC6.8AC9.1AC14Lift motor type DCDCDCDCDCLift Motor   (S3 15%)kw8.28.68.61010Battery  V/AHV/AH48/40048/49048/56048/63080/400WeightBatterykg6457508859801070Service Weightkg29903380360043704870SteeringSteering type Full hydraulicParking Brake model Hydraulic powerParking Operation type Pedal
Why choose us
BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

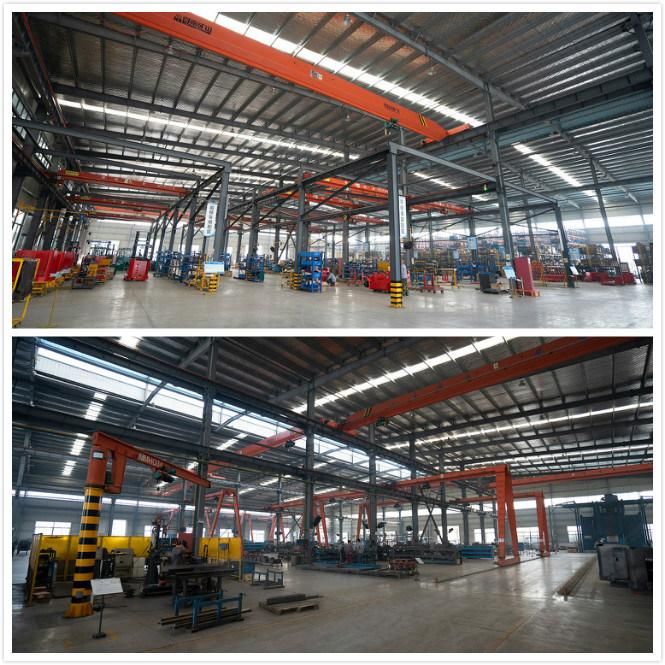

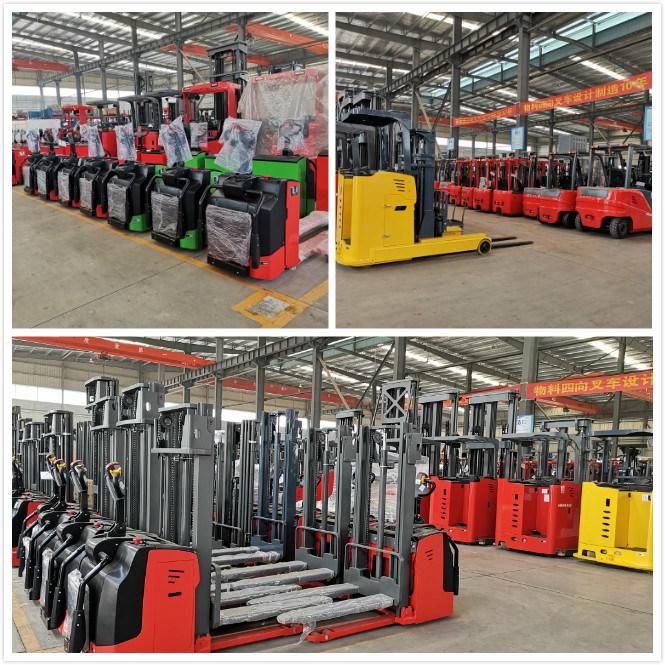

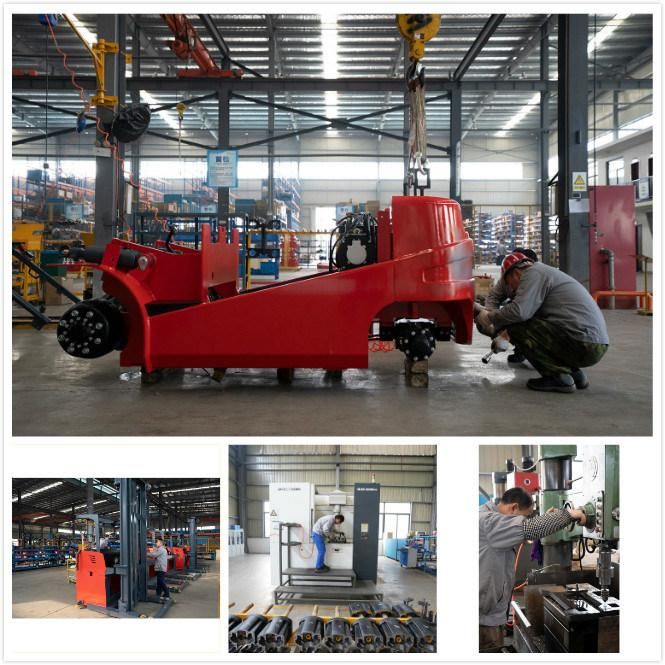

Our workshop and warehouse







Many of our models are in stock, for more details please feel free to contact us.

Exhibition
