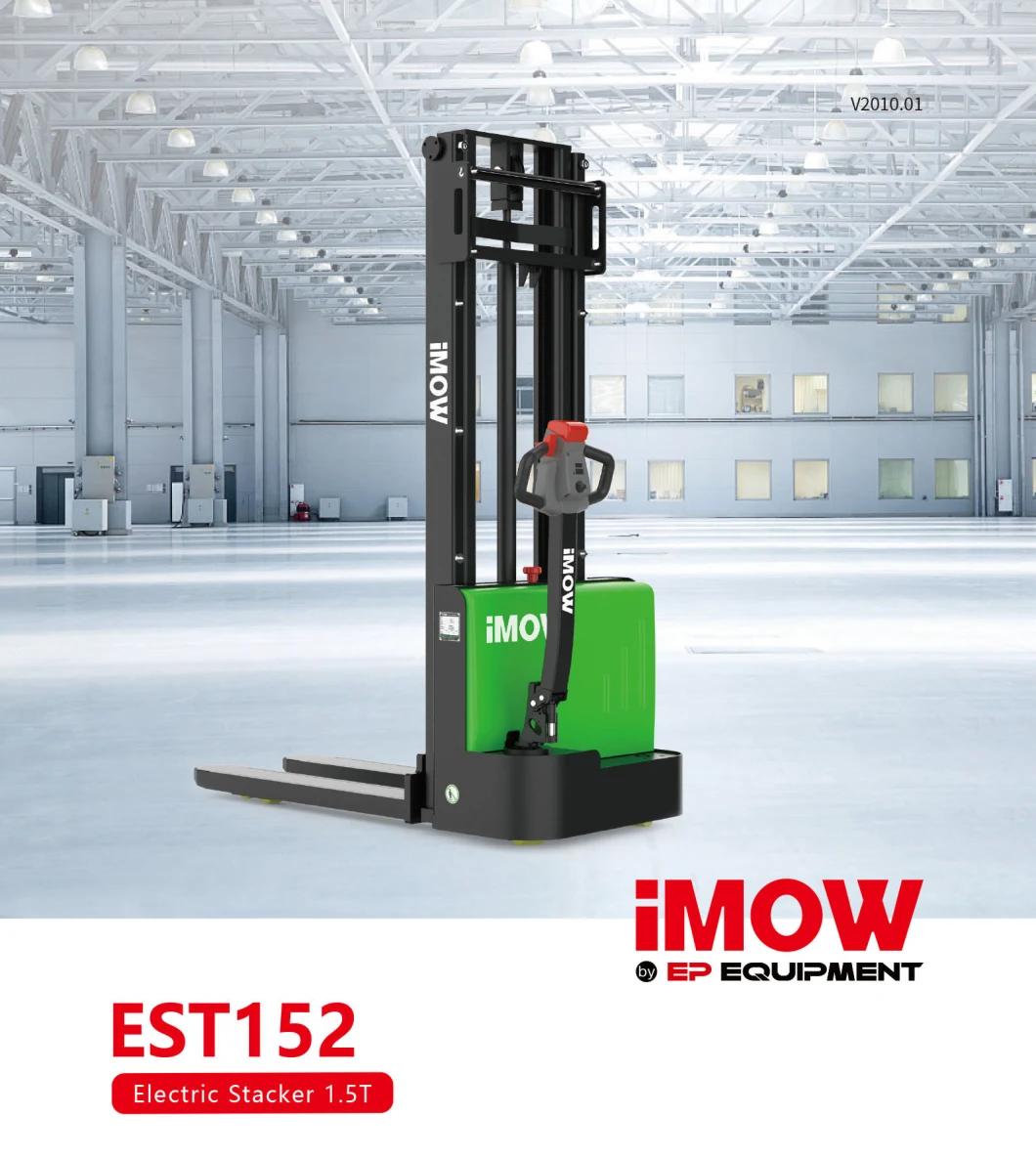

Convenient Vertical 1500kg Self Loading Electric Pallet Stacker Price
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- Cab Location:Walkie
- Type:Stacker
- Power:DC Motor
- Load Capacity:1T - 5T
- Fuel:Electric
- Load center:600mm
Base Info
- Model NO.:EST152
- Lift height:3000~5000mm
- Condition:New
- Rated Loading Capacity:1500kg
- Max. Lifting Height:3600mm
- Min. Lifting Height:85mm
- Fork Length:1150mm
- Fork Width:170mm
- Service Weight:605kg
- Tyre Type:PU,PU
- Travel Speed:3.6,3.8 Km,H
- Battery Voltage:24V,85ah
- Turning Radius:1390 mm
- Lifting Speed:0.098,0.14 M,S
- Lowering Speed:0.1,0.094 M,S
- Wheelbase:1212 mm
- Service Brake Type:Electromagnetic
- Steering Type:Mechanical
- Transport Package:Standard Export Packing
- Specification:1717mm*796mm*2090mm
- Trademark:iMOW
- Origin:Zhejiang
- HS Code:8427109000
- Production Capacity:50000,Year
Description
Basic Info.
Model NO. EST152 Lift height 3000~5000mm Condition New Rated Loading Capacity 1500kg Max. Lifting Height 3600mm Min. Lifting Height 85mm Fork Length 1150mm Fork Width 170mm Service Weight 605kg Tyre Type PU/PU Travel Speed 3.6/3.8 Km/H Battery Voltage 24V/85ah Turning Radius 1390 mm Lifting Speed 0.098/0.14 M/S Lowering Speed 0.1/0.094 M/S Wheelbase 1212 mm Service Brake Type Electromagnetic Steering Type Mechanical Transport Package Standard Export Packing Specification 1717mm*796mm*2090mm Trademark iMOW Origin Zhejiang HS Code 8427109000 Production Capacity 50000/YearProduct Description
Convenient vertical 1500kg self loading electric pallet stacker priceMain features:
- Capacity 1500KG,lifting height 2400MM OR 3000MM.
- DC motor, internal charger
- Acid battery:2x12V/85AH
- Economical choice, better price, high performance
- Mini type for narrow aisle
- Anti-burst hydraulic oil tube
- Single chain design, providing wider view
- Robot cables with excellent twist resistance offers longer life span.
- Handy emergency discount button&durable driving unit ensure safety under any situation.
- Charger with temperature indicator protects battery.
- Compact design and small dimensions(the turning radius is only 1342mm),offering excellent visivility.
- Convenient control handle with all function on it.
- The comfortable and ergonomic handles enables easy maneuvering.
- The plastic shell is formed by injection moulding.
- The fork is formed by injection moulding and made of thickness steel plate reinforcement.
- Fix forks for standard configuration.
No | Item | Data |
1 | Capacity | 1500kg |
2 | Max lifting height | 2500/3000/3300/3500mm |
3 | Service weight | 605kg |
4 | Tires type | PU |
5 | Travel speed(laden/unladen) | 3.6/3.8km/h |
6 | Type of drive motor | DC |
7 | Steering type | mechanic |
8 | Battery | 24V/85Ah |
More details:
