Ltmg 0.5 Ton Self Loading Stacker 500kg Electric Forklift with DC Motor Controller

Xiamen LTMG Machinery Co., Ltd.
  • Product Name：Ltmg 500kg Semi Electric Stacker with 3m Lifting H
  • Fork Width：155mm
  • Load Center：400mm
  • Fork Size：1570*786*1597mm
  • Item：Stacker
  • Max. Lifting Height：1300mm

Base Info

  • Model NO.：ERB05Z
  • Certification：CE ISO
  • Overall Length：1570mm
  • Min.Turning Radius：1110
  • Warranty：1 Year,2000 Working Hours
  • Battery Capacity：12V,45ah
  • Operating Weight：245kg
  • Min. Lifting Height：85mm
  • Transport Package：Container
  • Specification：1570*786*1597mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8428109000
  • Production Capacity：1000sets,Year

Description

Main SpecificationPower unitBatteryOperator typeManual Driving,Electrical LiftingRated load500kgOperating weight245kgBattery performance12V/45AHMax. lifting height1300mmLoad center400mmMax. fork width535mmLowered fork height85mmOverall dimension(L*W*H)1570*786*1597mmMin. turning radius1100mmRated powerDC0.8kwLifting speed55mm/sLowering speed70mm/sMastSingle mast

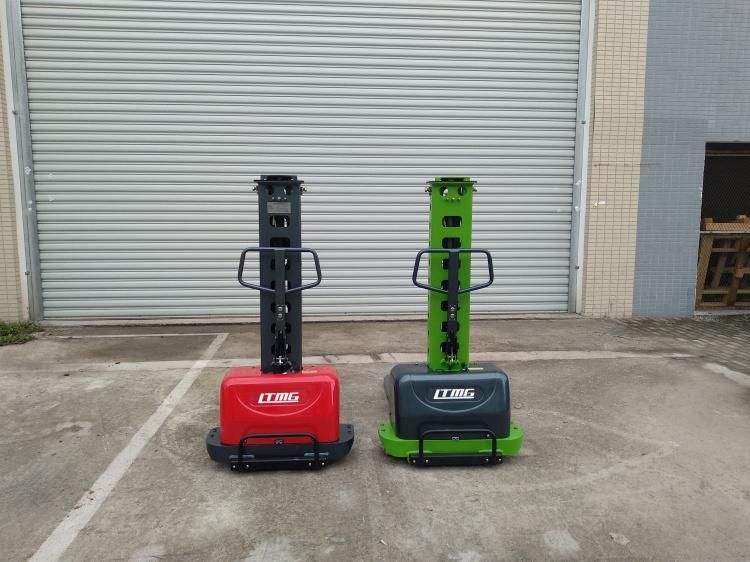

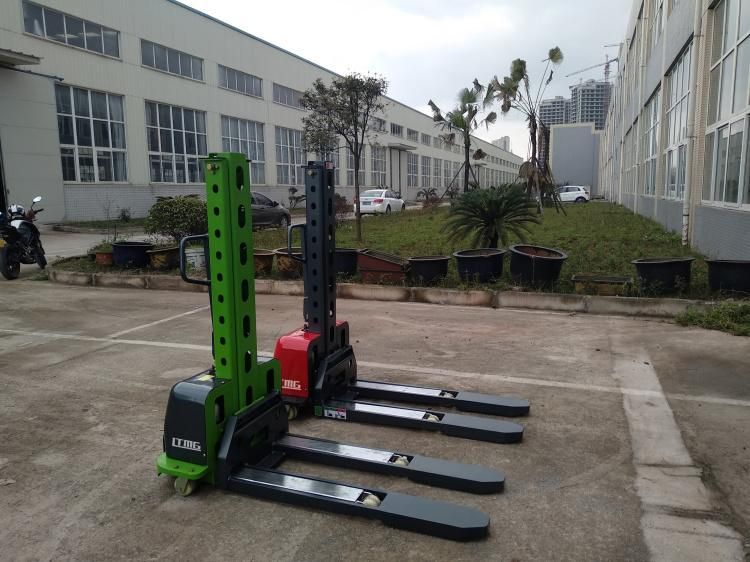

LTMG 500Kg semi electric stacker with 3m lifting height

Ltmg 0.5 Ton Self Loading Stacker 500kg Electric Forklift with DC Motor Controller
Ltmg 0.5 Ton Self Loading Stacker 500kg Electric Forklift with DC Motor Controller

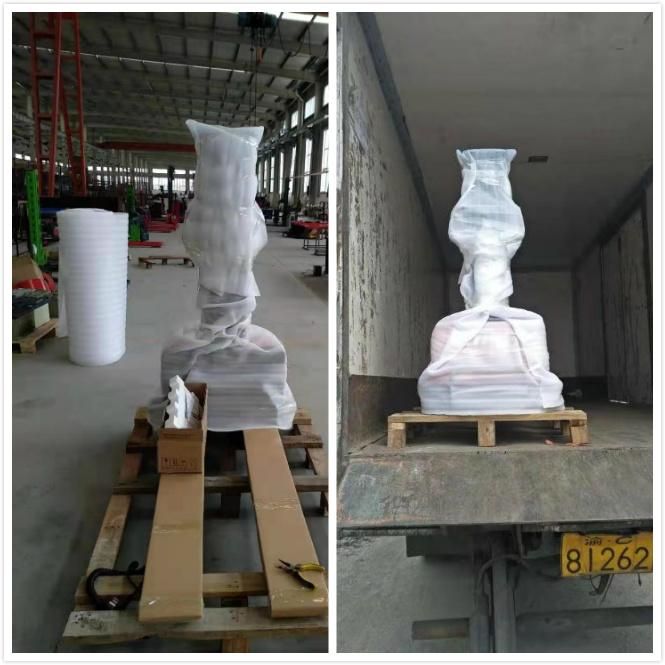

Packing and shipping

Ltmg 0.5 Ton Self Loading Stacker 500kg Electric Forklift with DC Motor Controller

Our Customer

Ltmg 0.5 Ton Self Loading Stacker 500kg Electric Forklift with DC Motor Controller

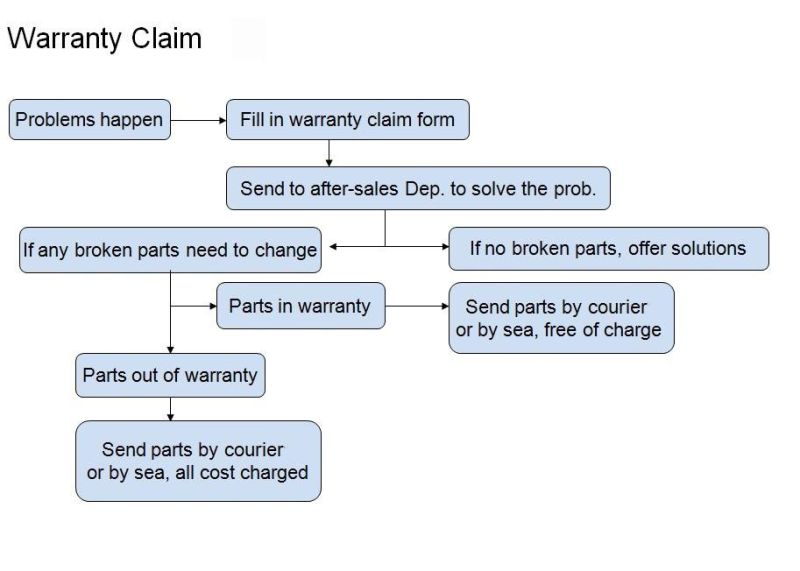

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
