Lonking 3tons Diesel Forklift Model Fd30 (T)

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：1 Year Warranty
  • Warranty：1 Year Warranty
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：FD30(T)
  • Fuel：Diesel
  • Load center：>500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Transport Package：Nude Packing
  • Specification：3 ton
  • Trademark：LONKING
  • Origin：China
  • HS Code：842720900
  • Production Capacity：300pieces,Year

Description

UnitFD20(T)FD25(T)FD30(T)CPC(D)20CPC(D)25CPC(D)30power type/DieselDieselDieselrated capacitykg200025003000J load centermm500500500H1 STD lifting heightmm300030003000H3 free lifting heightmm150150165L5*W*T forke sizemm1070*120*401070*120*401070*125*45

Mast tilt angle

deg

Forward 6/Rear12

Forward 6/Rear12

Forward 6/Rear12

L3  Front overhang

mm460460 479

L4 Rear  overhang

 mm 410 470 522

L1 Overall length(with fork)

 mm 3590 3650 3770

W1 Overall width

 mm 1160 1160 1225

h2 STD mast lower height

 mm 2000 2000 2075

h4 OverHead guard  height

 mm 2110 2110 2130

the height of Load-backrest

 mm 975 975 1280

R1  Min. turning radius

 mm 2250 2300 2460

Ra Min intersecting aisle

 mm 3900 3970 4155

Max travel speed(load/unload)

KM/H18/2018/2018.5/20

 Max lifting speed(load/unload)

mm/s550/530550/530505/485

Gradeablity(load/unload)

%202020Weightkg340038004220

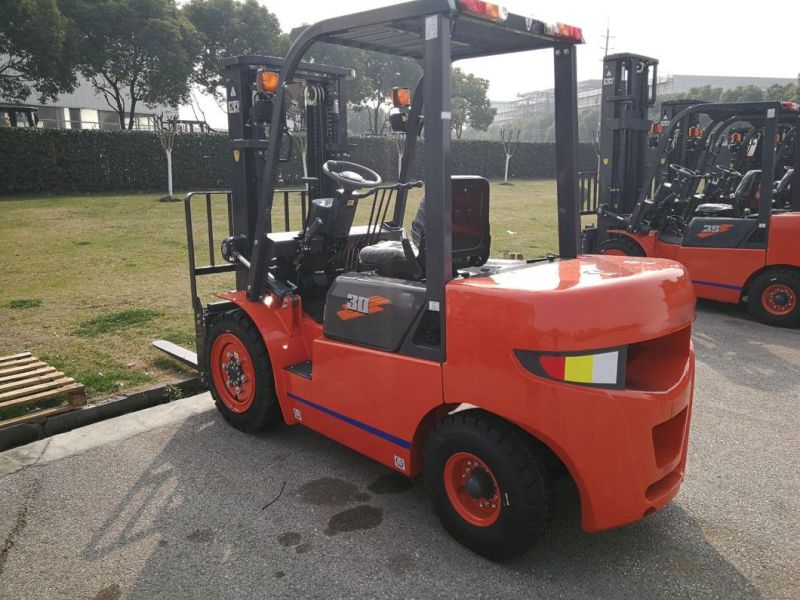

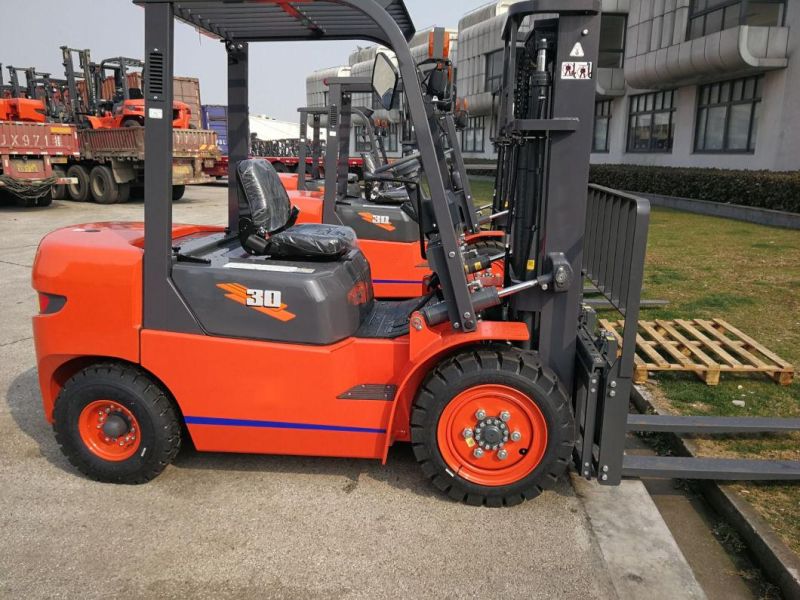

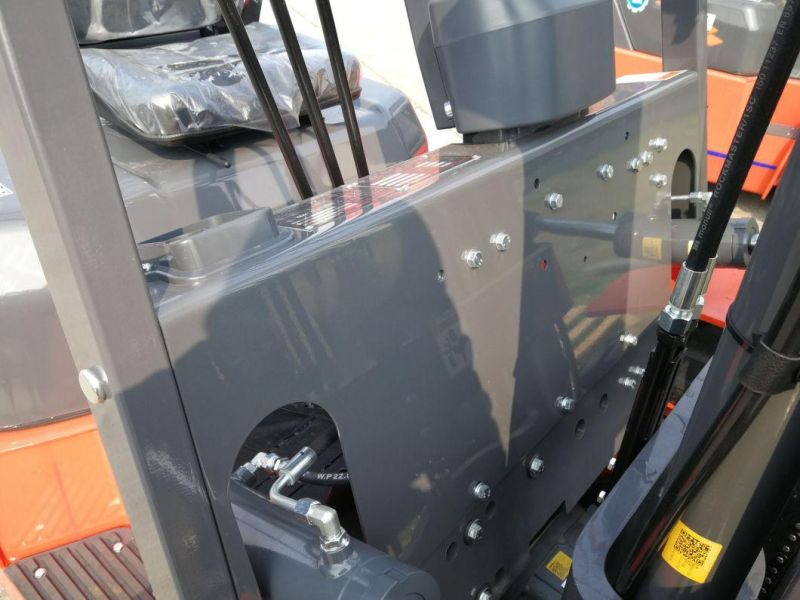

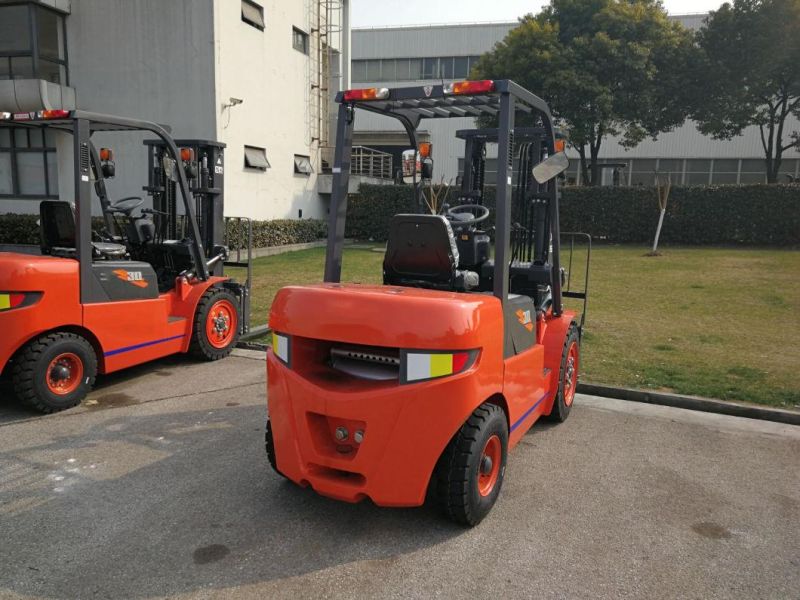

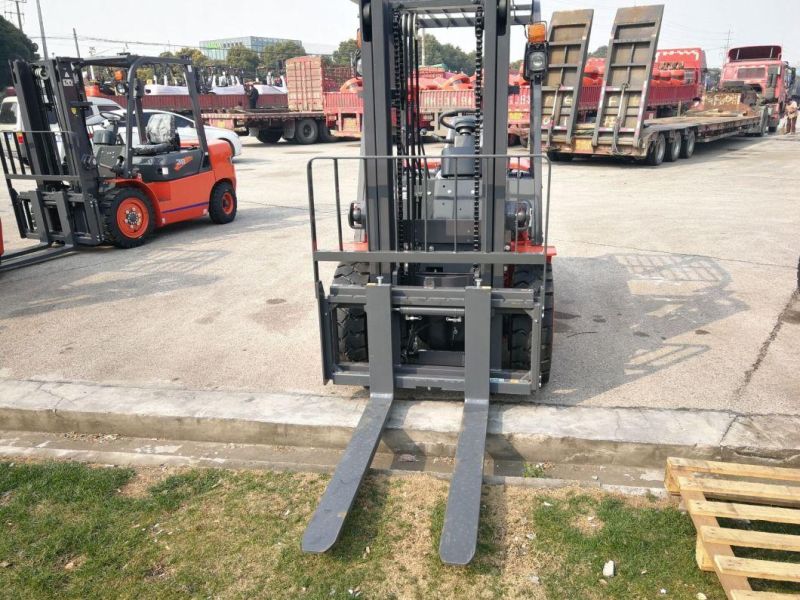

Product Image
Lonking 3tons Diesel Forklift Model Fd30 (T)Lonking 3tons Diesel Forklift Model Fd30 (T)Lonking 3tons Diesel Forklift Model Fd30 (T)Lonking 3tons Diesel Forklift Model Fd30 (T)Lonking 3tons Diesel Forklift Model Fd30 (T)
