Full AC Electric Forklift Price High Mast Reach Truck CE Certificated Safe Operation for Confined Space Aisle Width Easy Maintenance
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- After-sales Service：Local Service
- Warranty：2 Years
- Cab Location：Not Adjustable
- Type：Reach Forklift
- Power：AC Motor
- Load Capacity：1.6t
Base Info
- Model NO.：CQD16L
- Fuel：Electric
- Load center：600mm
- Lift height：2700-8000mm
- Condition：New
- Battery Capacity：48V,360ah(Li-ion)
- Drive Motor：7kw
- Lift Motor：20kw
- Self Weight：2522kg
- Tyre：PU
- Mast Lowered Height：2050mm
- Fork Dimension：40*100*1070mm
- Turning Radius：1770mm
- Travel Speed：10,11 Km,H
- Lifting Speed：0.38,0.55 M,S
- Lowering Speed：0.41,0.38 M,S
- Reaching Speed：0.18,0.18 M,S
- Type of Drive Unit：AC
- Ground Clearance：60-75
- Wheelbase：1515
- Transport Package：Standard Export Packing
- Specification：2463*1270*3219mm
- Trademark：EP
- Origin：Zhejiang
- HS Code：8427109000
- Production Capacity：3500units
Description
DimensionsreElectric-engine Drive motor rating S2 60 min (kW) 4 Lift motor rating at S3 15% (kW) 11.75 Battery voltage/nominal capacity K5 (V/ Ah) 48/360 Battery weight (kg) 450

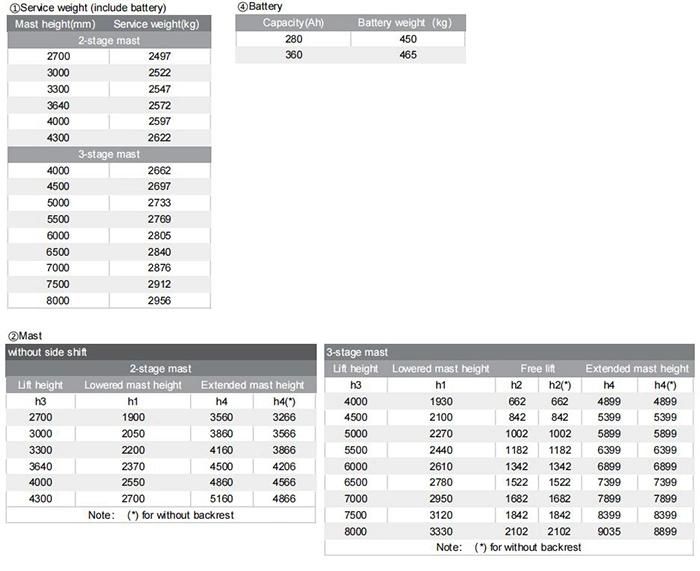

Mast option:

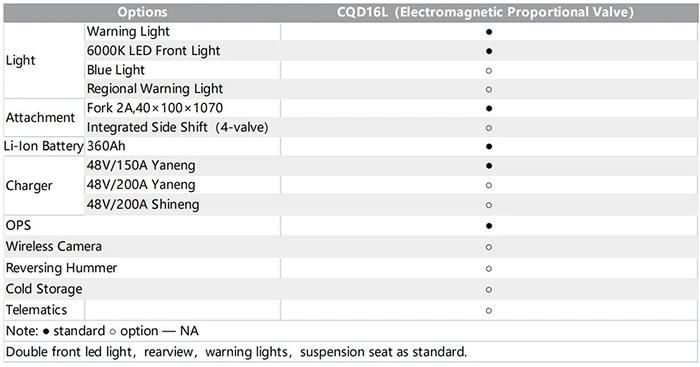

Option:

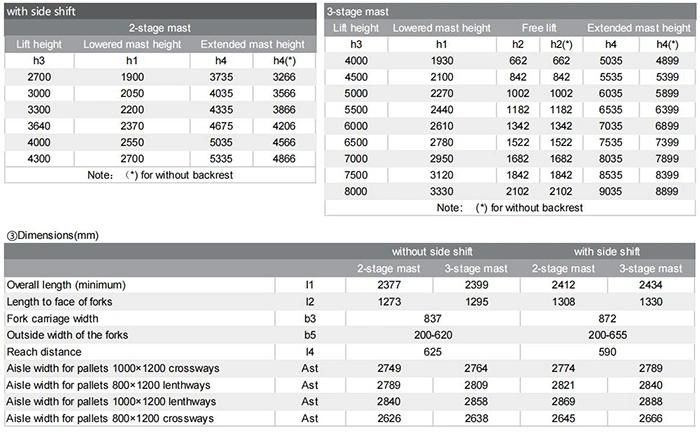

Mast option:
Option:We are your best , most sincere and most reliable electric forklift supplier . Please don't hesitate to contact me. I am willing to serve you at any time.

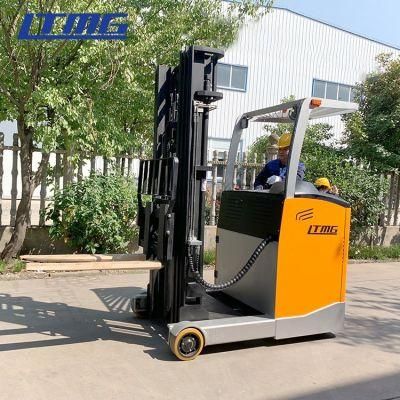

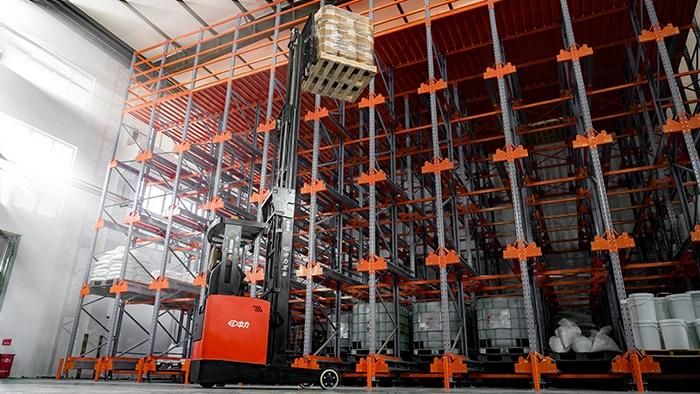

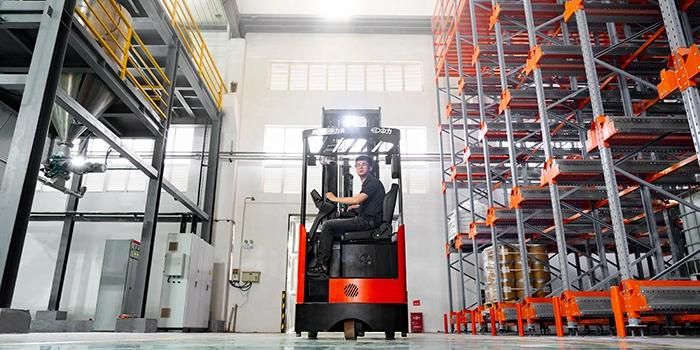

Real shots for export:
