• Model NO.：FD30
• Lift height：3000mm-6000mm
• Condition：New
• Engine：China,Japan for Choice
• Mast：Duplex,Full Free Lift Mast
• Options：LED Light, Lux Seat, Fan, Solid Tire Ect
• Transmission：Automatic Transmission
• Attachements：Side Shifter, Clamps, Positioner Ect
• Color：Customer Customzied
• Transport Package：Container Shipment
• Specification：4250kg
• Trademark：SNSC
• Origin：China, Wuhu
• HS Code：84272090
• Production Capacity：15000pieces,Years

SpecificationsUnitFD301CharacteristicsPower diesel2Rated Capacitykg30003Center of loadmm5004Lifting heightmm30005Free lifting heightmm1456Forks L×W×Hmm1070×125×457Tilt Forward/Backward.6/128Min.turning radiusmm26009Min.ground clearance(Mast)mm12010Overhead guard heightmm217011Height from seat to overhead guardmm48012Front overhangmm54513PerfMax.traveling speed(loaded)km/h2014Max.lifting speed(loaded/empty)mm/s470/52015Drawbar pull/GradeabilitykN/%18/2016DimensionsOverall length (without fork)mm282517Overall widthmm123018Mast lowered height mm206519Mast extended heightmm426020ChassisTireFront 28×9-15-12PR21Rear 6.50-10-10PR22Wheelbasemm180023Tread widthFront/Rearmm1000/97024Curb weightNone-loadkg425025PowertrainBatteryVoltage/CapacityV/Ah12/9026EngineModel QC490GP27Rated powerkw/r.p.m39/265028Rated torqueNm/r.p.m157/198029Cylinder amount 430Bore×Stroke mm90×10531Displacement 2.6732Fuel tankL7033Transmission 1/1 automatic transmission34Working pressureMPa17.5
OUR COMPANY

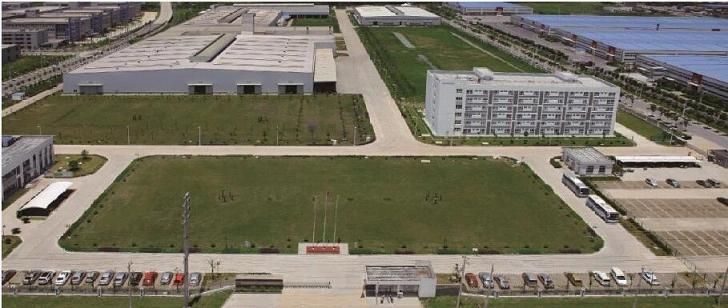

We are first calss in Chinese forklift  manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume

Our R&D research is in Britain, and we invested over 600 million in fork lifter factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.

Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions

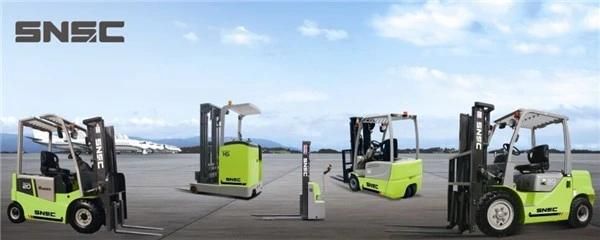

OUR PRODUCTS


I. Diesel forklift range from 1.5 to 16tons;(FD15/18/20/25/30/35/40/45/50/60/70/80/100/160)
II. Battery forklift range from 1.5 to 3.5tons;(FB15/20/25/30/35)
III.LPG and gasoline forklift range from 1.5 to 3.5 ton;(FL15/20/25/30/35)
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)

OUR CERTIFICATIONS
Our all kinds of forklift forsale has passed all kinds of international certificates, eg:Russian Gost certificates or European CE(EC) certificates, especially, our CE certificates are made in Turkey. Quality is guaranteed and performance stable.

OUR SERVICES

WARRANTY TIME:
The warranty period for forklift is 12 months or 2000 working hours begins from the forklift arrival date of oversea port, depends on which come first.

SPARE PARTS SERVICE:
We have free wearing parts to present you with the forklift.
Warranty period of Spare parts is 6 months, begins from 30 days after shipment.

MAINTENANCE SERVICE
Our products are all well-designed and strictly tested. If any maintenance problem you can not handle, we can also offer training and maintenance services in our factory field or at your site.Your requirements will be handled promptly and appropriately.

OUR MAITRMANCE PLANMandatory maintance timeThe first  mandatory maintanceThe second  mandatory maintanceThe third  mandatory maintanceThe fourth  mandatory maintanceThe fifth  mandatory maintanceThe sixth  mandatory maintanceRunning time50hours200 hours500 hours800 hours1100 hours1400 hours
OUR QUALITY CONTROL

We use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.Every forklift part is produced by ourselves, our products are all well-designed and strictly tested, We traite  every process from  prepare materials- structure-painting-assambly to delivery to make customer's satisfaction.

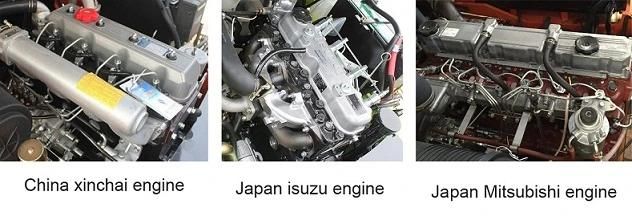

PRODUCT DESCRPTIONSJapan ISUZU engine for your choice3tons diesel forklift adapts china engine, optional Japan engine, eg: Imported ISUZU brand/ Yanmar / Kubota/ Perkins/ Mitsubishi engine for your choosing, Stable quality and reliable performance. you can get spare parts in oversea market easily. Automatic hydraulic Transmission 3tons diesel forklift uses automatic transimission with finger, make your work very comfortable and efficient.
If you like hand transmission or mechanical transmission, price will be much more competitive.
Japan shimadzu Hydraulic System & USA Eaton Redirector
we use Japan shimadzu hydraulic system and USA Eaton Redirector to 3tons diesel forklift , to guarantee forklift performance more stable and reliable.

What's more, spare parts are available in oversea markets.
 Different mast &lifting height for 3ton diesel forkliftOur 3ton diesel forklift used standard 3000mm lifting height duplex mast.
But we can also do different lifting height mast  according customers' different working condition, eg: 3m duplex standard mast/ 4.5m duplex full free mast/ 6m triplex full free mast and others. Our mast lifting height capacity from 3m to 7m for customers choosing.

PACKAGE AND DELIVERY


3ton diesel forklift use Container Package or RO-RO.Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 2 Units,     1*40'GP - 4 Units
