CE Approval Warehouse 8m High Lifter 1600kgs Capacity 1-2 Ton Electric Battery Reach Truck

ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.
  • After-sales Service：Local Service
  • Warranty：2 Years
  • Cab Location：Not Adjustable
  • Type：Reach Forklift
  • Power：AC Motor
  • Load Capacity：1.6t

Base Info

  • Model NO.：CQD16L
  • Fuel：Electric
  • Load center：600mm
  • Lift height：2700-8000mm
  • Condition：New
  • Battery Capacity：48V,360ah(Li-ion)
  • Drive Motor：7kw
  • Lift Motor：20kw
  • Self Weight：2522kg
  • Tyre：PU
  • Mast Lowered Height：2050mm
  • Fork Dimension：40*100*1070mm
  • Turning Radius：1770mm
  • Travel Speed：10,11 Km,H
  • Lifting Speed：0.38,0.55 M,S
  • Lowering Speed：0.41,0.38 M,S
  • Reaching Speed：0.18,0.18 M,S
  • Type of Drive Unit：AC
  • Ground Clearance：60-75
  • Wheelbase：1515
  • Transport Package：Standard Export Packing
  • Specification：2463*1270*3219mm
  • Trademark：EP
  • Origin：Zhejiang
  • HS Code：8427109000
  • Production Capacity：3500units

Description

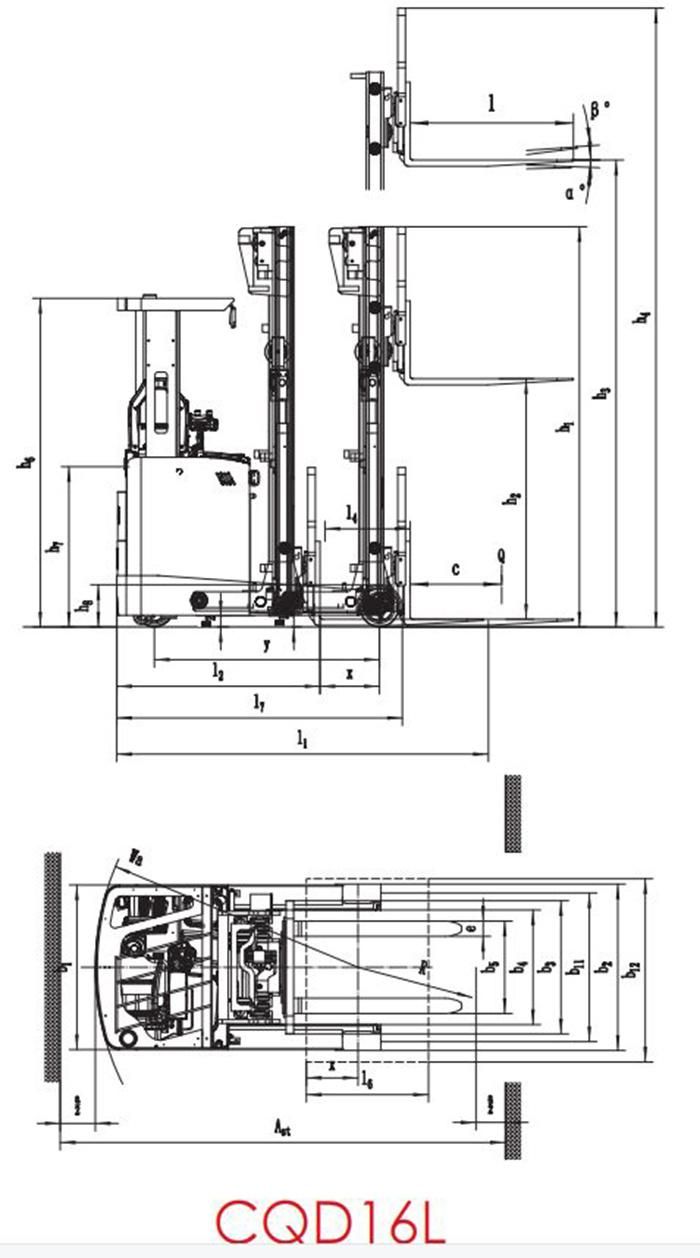

DimensionsreElectric-engine      Drive motor rating S2 60 min (kW) 4Lift motor rating at S3 15% (kW) 11.75Battery voltage/nominal capacity K5 (V/ Ah) 48/360Battery weight (kg) 450CE Approval Warehouse 8m High Lifter 1600kgs Capacity 1-2 Ton Electric Battery Reach Truck

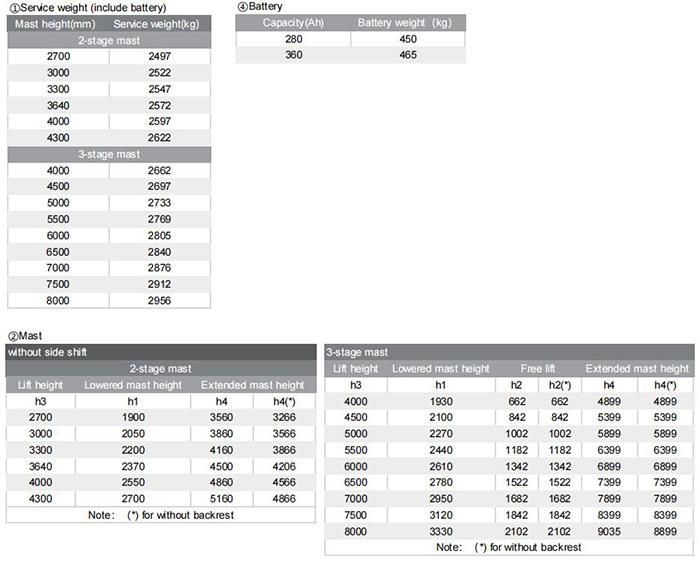

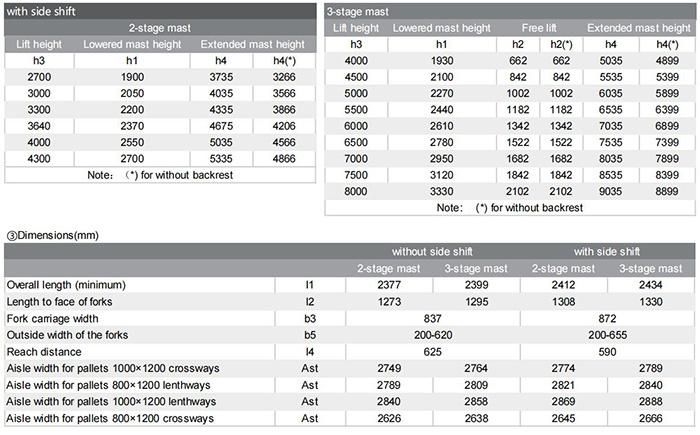

Mast option:

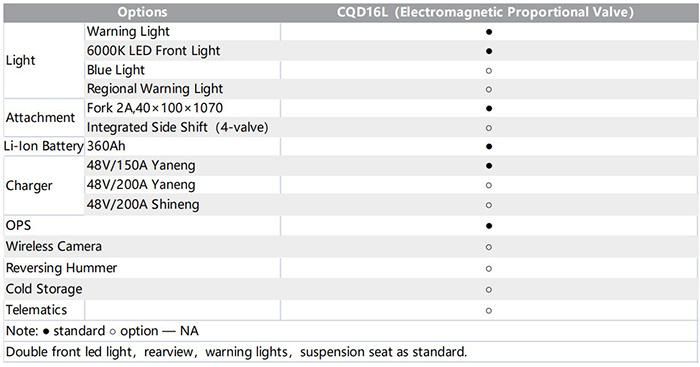

CE Approval Warehouse 8m High Lifter 1600kgs Capacity 1-2 Ton Electric Battery Reach TruckCE Approval Warehouse 8m High Lifter 1600kgs Capacity 1-2 Ton Electric Battery Reach TruckOption:CE Approval Warehouse 8m High Lifter 1600kgs Capacity 1-2 Ton Electric Battery Reach Truck

We are your best , most sincere and most reliable electric forklift supplier . Please don't hesitate to contact me. I am willing to serve you at any time.

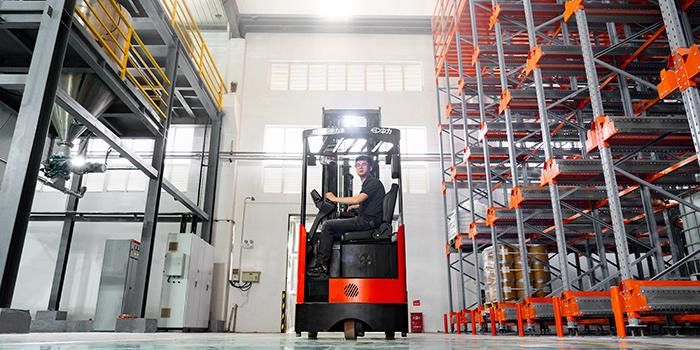

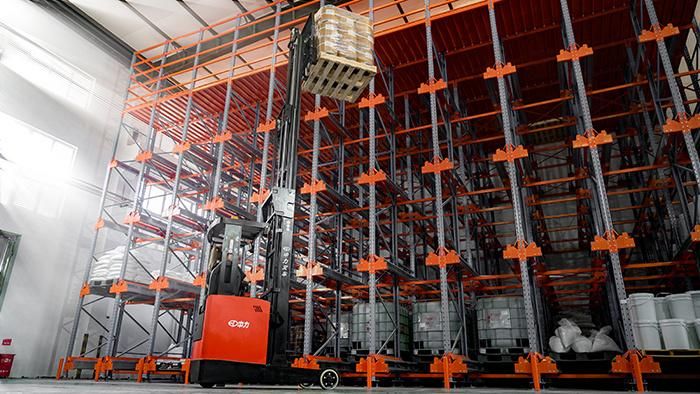

Real shots for export:

CE Approval Warehouse 8m High Lifter 1600kgs Capacity 1-2 Ton Electric Battery Reach Truck
CE Approval Warehouse 8m High Lifter 1600kgs Capacity 1-2 Ton Electric Battery Reach Truck
