• Model NO.：MBC16,20
• Lift height：3000~5000mm
• Condition：New
• Controller：Curtis
• Battery：24V,210ah
• Steering Type：Mechanical
• Fork Size：1150,190,56
• Operation Type：Walkie
• Battery Type：Lithium Optional
• Transport Package：Standard Packing
• Specification：1990*820mm
• Trademark：MIMA
• Origin：China
• HS Code：8427109000
• Production Capacity：More Than 1000PCS,Year

Basic Info.

Model NO. MBC16/20 Lift height 3000~5000mm Condition New Controller Curtis Battery 24V/210ah Steering Type Mechanical Fork Size 1150/190/56 Operation Type Walkie Battery Type Lithium Optional Transport Package Standard Packing Specification 1990*820mm Trademark MIMA Origin China HS Code 8427109000 Production Capacity More Than 1000PCS/Year

Product Description

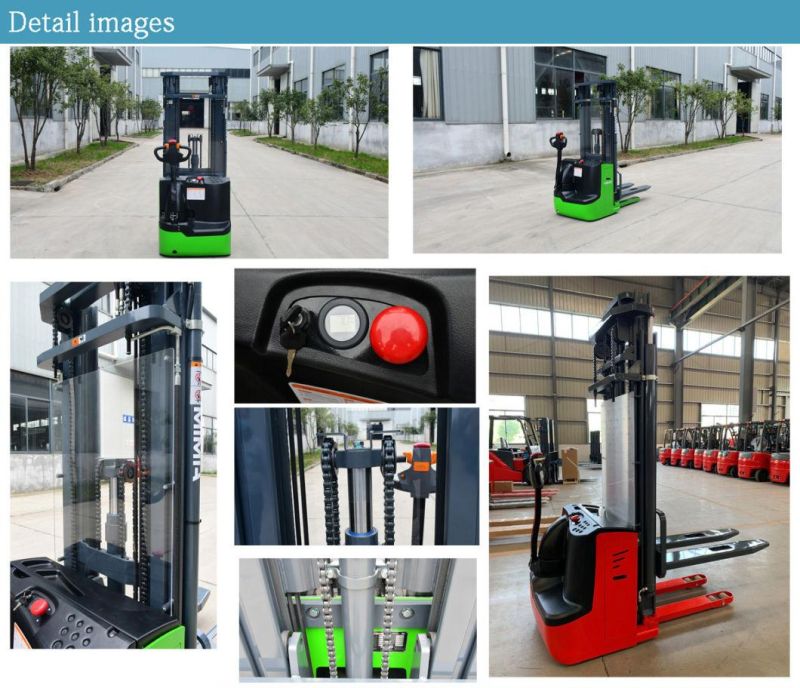

Electric Pallet Truck Stacker 1.6 Ton 2.0 Ton max lifting height 5 metersLoading capacity: 1600kg-2000kg, lifting height: 3000mm-5000mm
1. Electromagnetic brake, fast reaction brake,more safe and reliable;
2. Integrated joystick, simple and beautiful;
3. Curtis controller, AMP waterproof and dust-proof plug-in make electrical system safer, and greatly reduce electrical failure.
4. Compact design with long handle and ergonomics;
5. Emergency reverse driving function,emergency of handle head.
6.The reverse button can effectively avoid injuries  to the driver when driving backward.

Brand		MIMA	MIMA
Model		MBC1630	MBC16S	MBC2030	MBC20S
Power type		Battery	Battery	Battery	Battery
Operation type		Walkie	Walkie	Walkie	Walkie
Service weight(incl. battery)	kg	1200	1300	1200	1300
Rated capacity	kg	1600	1600	2000	2000
Load center	mm	600	600	600	600
Lift height	mm	3000	3000	3000	3000
Overall length	mm	1990	1990	1990	1990
Overall width	mm	820	820	820	820
Fork size	mm	1150/190/56	1150/190/56	1150/190/56	1150/190/56
Fork outside width	mm	570/680*	570/680*	570/680*	570/680*
Turning radius	mm	1490	1490	1490	1490
Max. gradeability	%(tanθ )	≤6/≤12	≤6/≤12	≤6/≤12	≤6/≤12
Driving speed(load,unload)	km/h	5.0/6.0	5.0/6.0	5.0/6.0	5.0/6.0
Lifting speed(load,unload)	mm/s	125/175	90/130	125/175	90/130
Lowering speed(load,unload)	mm/s	115/135	95/100	115/135	95/100
Brake type		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Steering system		Mechanical	Mechanical	Mechanical	Mechanical

BANYITONG SCIENCE AND TECHNOLOGY DEVELOPING CO., LTD.
   Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.






Many of our models are in stock so we can support fast shipping.
For more details please feel free to contact us.




1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.

2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.

3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.

4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.

5.Can you provide training for the customer?
Yeah. We can provide training for our customer.

6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.

7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
