• Model NO.：ME
• Entry Type：2 Way
• Material：Steel
• Transport Package：Standard Packing
• Specification：Nonstandard, SGS, ISO
• Trademark：MIMA
• Origin：Hefei, Anhui, China
• HS Code：8427102000
• Production Capacity：More Than 1000PCS,Year

Basic Info.

Model NO. ME Entry Type 2 Way Material Steel Transport Package Standard Packing Specification Nonstandard, SGS, ISO Trademark MIMA Origin Hefei, Anhui, China HS Code 8427102000 Production Capacity More Than 1000PCS/Year

Product Description

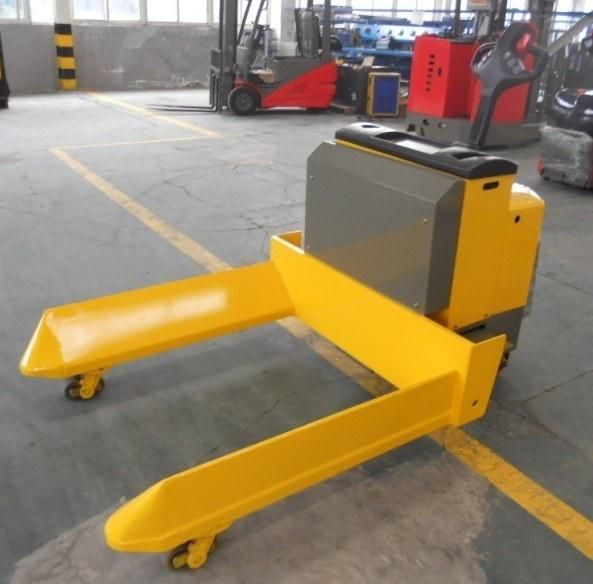

Electric Pallet Truck with Paper Roll
Procut details

ME20,ME25 ,ME30,ME40
Load Capacity:2000kg,2500kg;3000kg,4000kg

Main Features:
1.EPS make operation easy and safe.

2.Arm rest safety function: when the arm rest is put down, the traveling  speed will decrease 30-40%. It increase operator's safety.

3.The dismountable pedal make it convenient to change the driving wheel.

4.The turnning speed limit protect forklift from turnning over.

5. Pull Rod lifting provides a long working life.

Brand		MIMA	MIMA	MIMA	MIMA
Model		ME20	ME25	ME30	ME40
Power type		Electric	Electric	Electric	Electric
Operation type		Stand on	Stand on	Stand on	Stand on
Service weight(incl. battery)	kg	376	676	860	900
Rated capacity	kg	2000	2500	3000	4000
Load centre	mm	500	500	500	500
Lift height	mm	120	120	110	110
Fork size	mm	1150/170/56	1150/170/56	1150/175/75	1150/205/75
Fork outside width	mm	680	680	685	685
Turning radius, pedal on/off	mm	2065/1730	2065/1730	2220/1800	2170/1750
Aisle width for pallet 800×1200mm, pedal on/off	mm	2550/2100	2550/2100	2200/3640	2200/2640
Aisle width for pallet 1000×1200mm, pedal on/off	mm	2500/2050	2500/2050	2150/2590	2150/2590
Driving speed	km/h	6/6	6/6	5/6	5/6
Lifting speed	mm/s	40/55	40/55	29/33	23/33
Lowering speed	mm/s	35/35	35/35	23/18	25/18
Brake type		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic

The above parameters are standard model parameters. For more details of special forklift please contact our sales engineer.

Company Introduction


   BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD.

Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

Certificates and qualifications

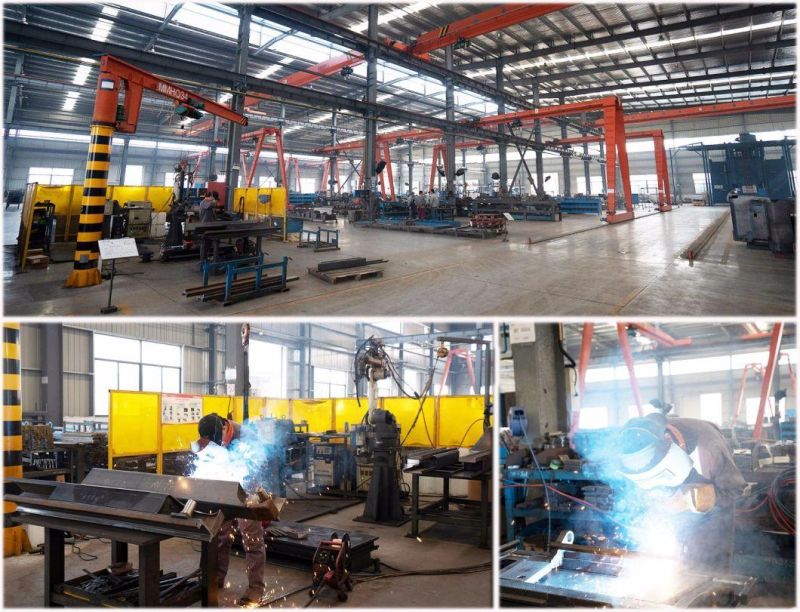

Welding workshop

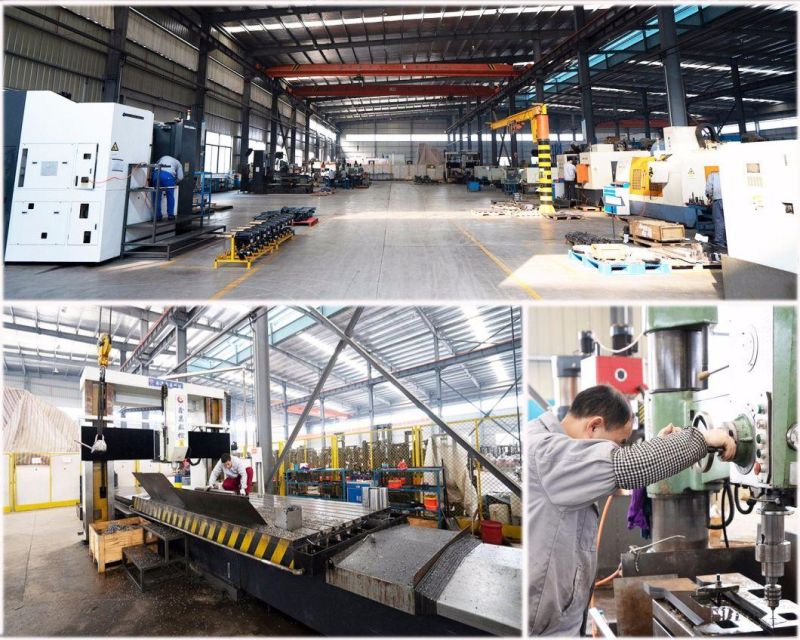

Metal processing workshop

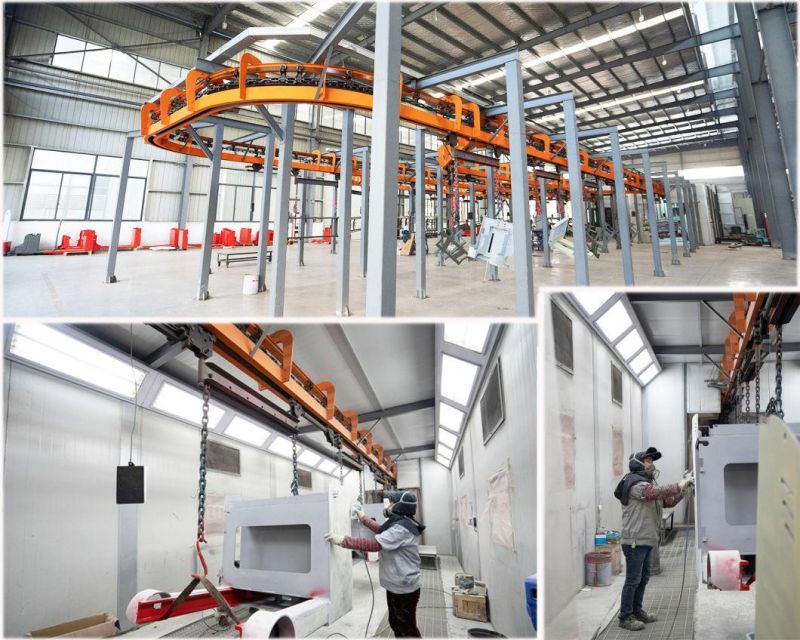

Painting workshop

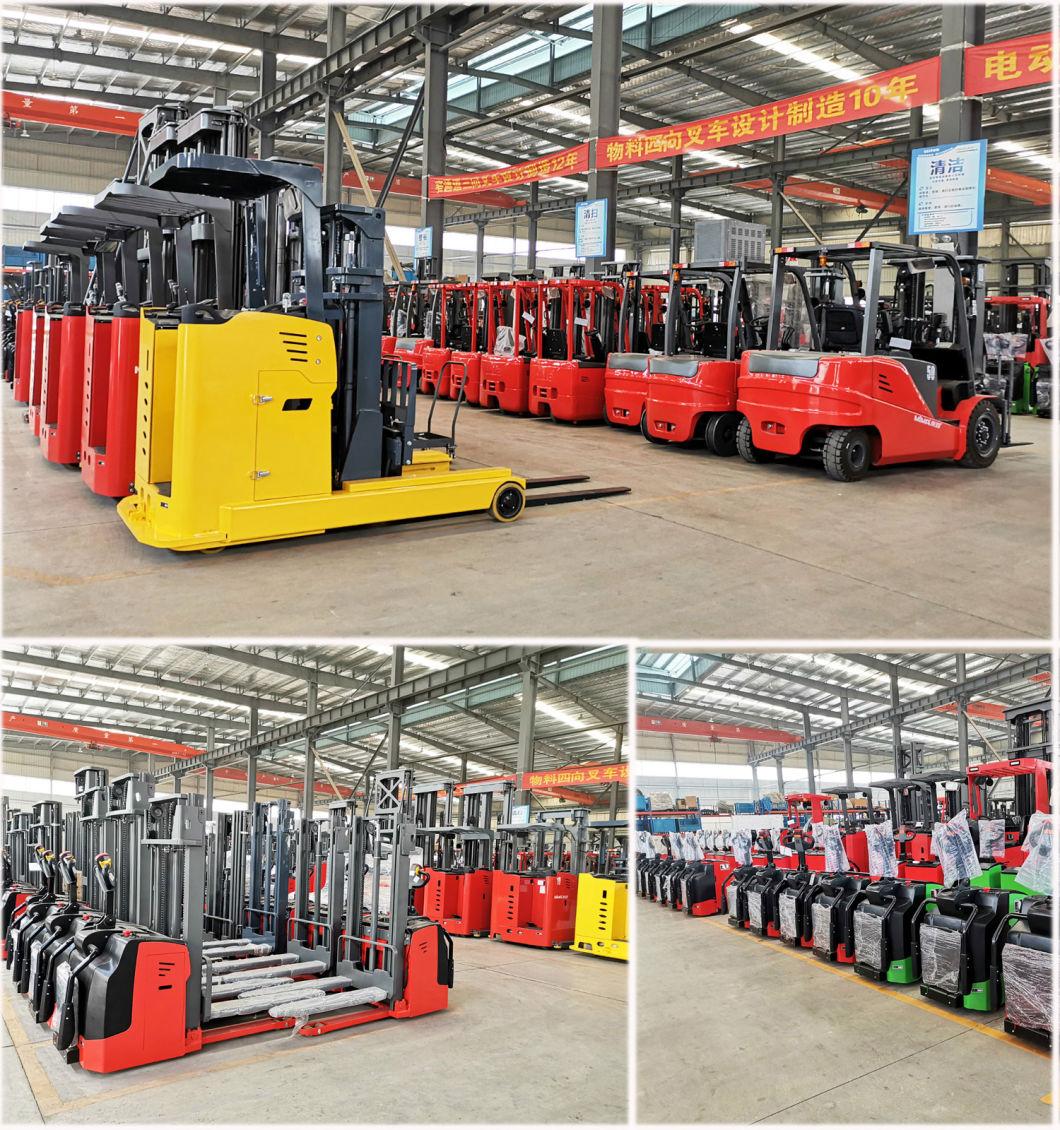

Warehouse



Many of  our models are in stock, if you want to know more details, please feel free to contact us.

Exhibition



FAQ

1.Are you factory or trading company?
We are the factory which have been manufacture electric forklift for more than 20 years.

2.What is the delivery time?
Generally it is can delivery immediately if the goods are in stock. Or it is 15-30 days if the goods are out of stock.

3.What is the Payment?
TT(bank transfer), LC at sight or Alibaba , all will be accepted.

4.Is OEM & ODM available?
1). We can do the product according your design
2). We can provide customized solutions according your requirments.

5.Can you provide training for the customer?
Yeah. We can provide training for our customer.

6.What certification do you have?
Our company has passed ISO 9001:2008 and all of the forklift have CE certification.

7.How can I get the best price?
Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.
