China Manufacturer 1.4 Ton 3 Meters Full Electric Walking Pallet Stacker
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- After-sales Service：Local Service
- Warranty：2 Years
- Cab Location：Ride-on
- Type：Stacker
- Power：AC Motor
- Load Capacity：1.4t
Base Info
- Model NO.：RSB141
- Fuel：Electric
- Load center：600mm
- Lift height：2930mm
- Condition：New
- Drive Motor：0.9kw
- Lift Motor：2.2kw
- Type of Drive：AC
- Battery Voltage：48V,85ah
- Max. Lifting Height：3900mm
- Min. Lifting Height：85mm
- Fork Length：1150mm
- Fork Width：170mm
- Service Weight：770kg
- Tyre Type：PU,PU
- Travel Speed：5,5.5 Km,H
- Lifting Speed：0.1,0.18 M,S
- Loweing Speed：0.29,0.19
- Turning Radius：1455mm
- Wheelbase：1145mm
- Transport Package：Standard Export Packing
- Specification：1754mm*800mm*1970mm
- Trademark：EP
- Origin：Zhejiang
- HS Code：8427109000
- Production Capacity：50000,Year
Description
ElectromagneticSteering Type Electronic
-The Truck uses large capacity battery of 48V to satisfy high intensive working;
-Easy diagnosis technology greatly reduces the technical threshold and makes maintenance easier;

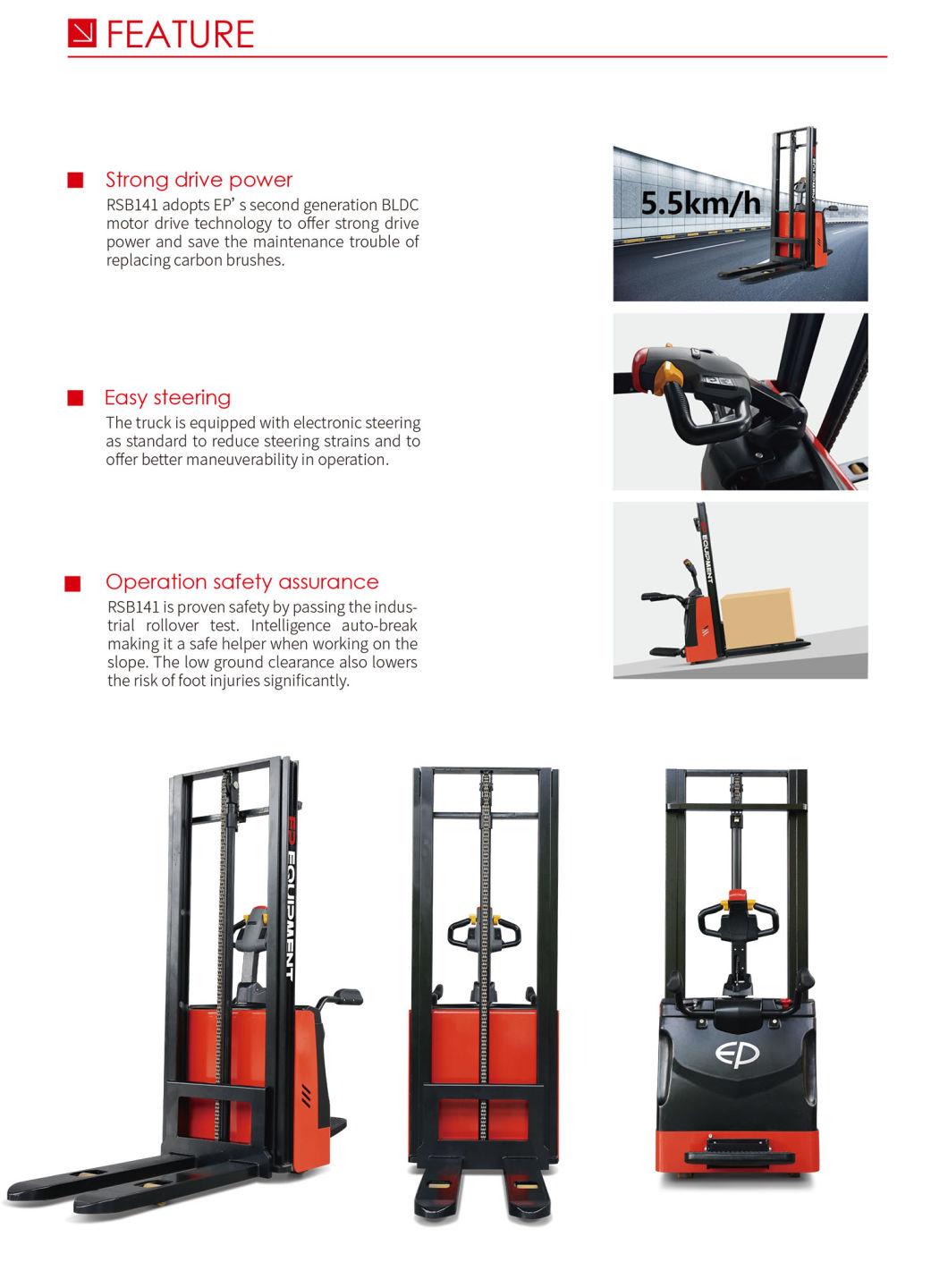

-The truck uses EP second generation DC drive technology (BLDC), stronger power and lower energy consumption.
-The truk has an automatic parking system and it can automatically identify whether the truck needs to stop and start the parking brake when it is still.
-In accordance with EN ISO 3691 safety and inspection standards for industrial vehicles to ensure the safety.
-With fast detachable mask and modular design greatly reduce the maintenace difficulty and time cost.
-Adopting quantifiable timing instrument panel and low power protetion system greatly extend the battery life.
FAQ:Q1:Do you have Lithium-ion Style?
we have li-ion pallet truck, forklift,stacker, reach truck, etc.
A3: L/C, T/T. 1 set.
1) Sub company support in Belgium,Thailand,Japan etc.
A6: For simple and manual equipment, EP would send manual instruction and operation video.
More details:
-The Truck uses large capacity battery of 48V to satisfy high intensive working;
-Easy diagnosis technology greatly reduces the technical threshold and makes maintenance easier;
-The truck uses EP second generation DC drive technology (BLDC), stronger power and lower energy consumption.
-The truk has an automatic parking system and it can automatically identify whether the truck needs to stop and start the parking brake when it is still.
-In accordance with EN ISO 3691 safety and inspection standards for industrial vehicles to ensure the safety.
-With fast detachable mask and modular design greatly reduce the maintenace difficulty and time cost.
-Adopting quantifiable timing instrument panel and low power protetion system greatly extend the battery life.
FAQ:
Q1:Do you have Lithium-ion Style?
A1: Yes!EP is a leading company of Li-ion material handling equipment.
EP have his own BMS system for lithium-ion battery.
we have li-ion pallet truck, forklift,stacker, reach truck, etc.
Q2::What is terms of payment? MOQ?
A3: L/C, T/T. 1 set.
Q3:How do you gurantee the equipment stable operating?
A4:we do Pre-shipment test for every single piece of euipment.
we have seperate QC,delivery,sales and after-sales departments.
also strict management process from pre-sales to after-sales.
Q4: How is your After-Sales Service?
A5: 1-5 year warranty with
1) Sub company support in Belgium,Thailand,Japan etc.
2) Professional oversea after-service team with support of our CAN and BMS system .
3) EP-care system solve the time and distance problem, give the most efficient support of parts.
Q5:How can I install my euipment when it arrives?
A6: For simple and manual equipment, EP would send manual instruction and operation video.
When necessary, our engineers will go overseas to help client installing, operating and training.
