• Model NO.：CPCD20 CPCD25 CPCD30 CPCD35
• Lift height：3000~5000mm
• Condition：New
• Color：Red
• Warranty：1 Year
• Loading Capacity：2-3.5 T
• Standard Mast Lifting Height：3000 mm
• Overall Length(Without Forks)：3500 mm
• Overall Width：1241 mm
• Max. Gradeability with Load：11-13 %
• Overall Height：2150 mm
• Transport Package：Steel Wood Package
• Specification：Same with Specification
• Trademark：Heli
• Origin：China
• HS Code：8427209000
• Production Capacity：500 Sets,Month

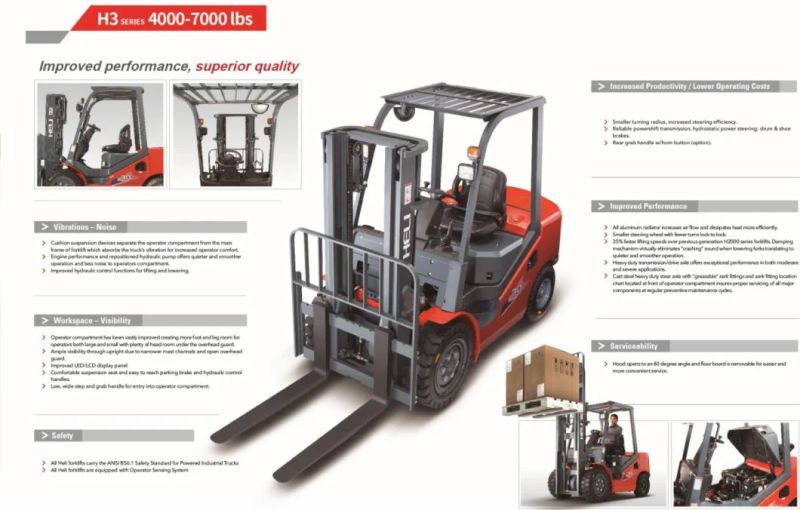

Overview Product Description

Performance Improved

Load sensing steering system improves working efficiency.

Ergonomics Improved

Space around foot is effectively increased through using suspension type inching and downing the tilting cylinder under the floor;

The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg;

Half enclosed seat with ergonomic design is standard to improve back comfort and protect the waist as well;

Steering wheel with small diameter, electro-hydraulic direction changing lever and automobile type double joystick combined switch effectively improve driving comfort;

Operator's front view is improved through lowering the dashboard;

Vibration is reduced with suspended cab (overhead guard);

Noise around ear is reduced through using fully closed patch type driver's cab which could insulate the chassis noise effectively;

Lower damping device inside the lifting system reduces mast shock and vibration, avoiding crash noise caused by goods falling to the ground.

Reliability Improved

Aluminous plate-fin radiator, hot wind backflow preventing baffle, optimized counterweight cooling channel improve the truck`s cooling ability;

The optimal design of key parts like frame, mast, overhead guard and steering axle improving the whole truck's safety and reliability;

The reasonable whole truck's gravity center improves loading capacity, more stability and safer;

The truck which applying casted steering axle with huge steering angle could decrease steering radius. The axle is both water and dust proof, reliable, and extends maintenance interval.

Maintainability

External installed transmission box filter and hydraulic return oil filter, improves repairing, cleaning and replacement efficiency. Change easily;

It is easily for checking and maintenance with enlarged engine hood opening angle.



H3 Series 2-3.5t CNG counterbalanced forklift trucks

This kind of truck possesses more advantages than other trucks of H3 series:

Good fuel-economy (Higher fuel efficiency):

The fuel cost of truck with CNG engine is 40% less than diesel engine or 60%~70% less than gasoline engine under normal working condition;(Concrete date changes with the price difference of fuel at different place).

Lower pollution:

There is less HC hybrid and CO than trucks with diesel engine in the exhaust gas emission, and no Sox, Pb, carbonaceous particular nearly. Improve the quality of the air.

Lower/ less noise and vibration:

Sound power, sound around the ears and vibration of the CNG truck are sharply decreased than the diesel truck, and the comfort of operation is improved observably.

Good low-temperature startup performance:

The lowest startup temperature:-30ºC.

Reliable fuel system:

Gas cylinder is produced by domestic famous brands; the regulator of gas pressure is designed only for engineering vehicle by famous company of USA, meeting to UL authentication.



H3 Series 2-3.5t LNG counterbalanced forklift trucks

This kind of truck possesses more advantages than other trucks of H3 series:

Good fuel-economy (Higher fuel efficiency)

The fuel cost of truck with LNG engine is 25%~30% less than diesel engine or 50%~60% less than gasoline engine under normal working condition; (Concrete date changes with the price difference of fuel at different place).

Lower pollution

There is less HC hybrid and CO than trucks with diesel engine in the exhaust gas emission, and no Sox,Pb,carbonaceous particular nearly. Improve the quality of the air.

Lower/ less noise and vibration

Sound power, sound around the ears and vibration of the LNG truck are sharply decreased than the diesel truck, and the comfort of operation is improved observably.

Good low-temperature startup performance

The lowest startup temperature:-30ºC.

Reliable fuel system

Gas cylinder is produced by domestic famous brands; The regulator of gas pressure is designed only for engineering vehicle by famous company of USA, meeting to UL authentication.

A pot of LNG could support long time working

A pot of LNG could support continuous working more than two days at normal intension.

Equipped with rearview

Enlarging the driver's back view and improving safety.

Equipped with seat which is able to be folded

Improving the performance of maintenance



Applications: as lifting and transporting machineries, H3 Series 2-3.5t Diesel / Gasoline / LPG / LNG / CNG  counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on.  With other attachments of fork lift trucks, they can be used for the handling of the bulk goods and unpackaged goods.

With high efficiency, H3 Series 2-3.5t LNG / CNG counterbalanced Forklift Trucks can finish the loading/unloading at ports, docks, stations perfectly.

The trucks are suitable for the areas rich in NG, and the demands of longtime continuous working and high environmental emissions.

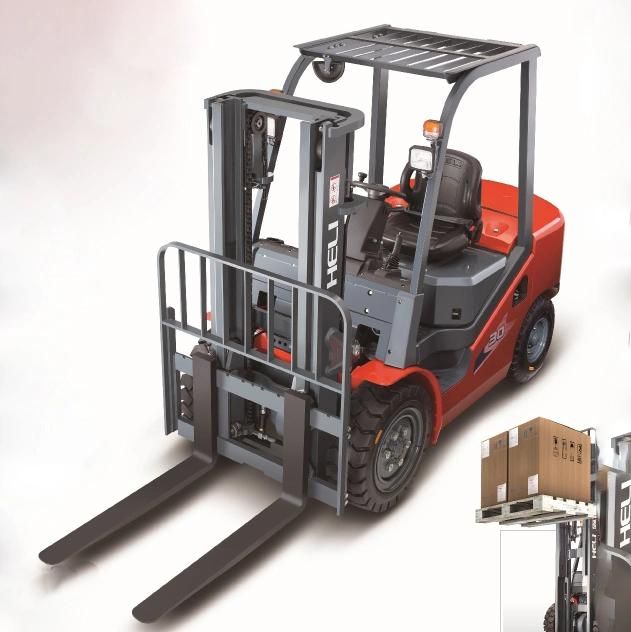

Detailed Photos

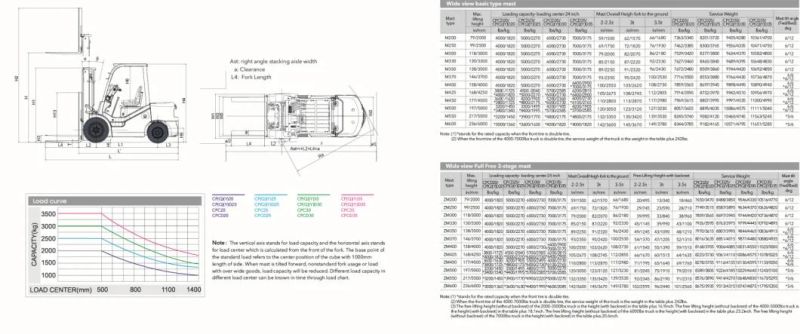

Product ParametersModelUnitCPC20/CPCD20/
CP(Q)(Y)20/CP(Q)(Y)D20CPC25/CPCD25/
CP(Q)(Y)25/CP(Q)(Y)D25CPC30/CPCD30/
CP(Q)(Y)30/CP(Q)(Y)D30CPC35/CPCD35/
CP(Q)(Y)35/CP(Q)(Y)D35Power type Diesel/Gasoline/LPG/CNGOperation model Sit-on typeLoad capacitykg2000250030003500Load centermm500Max.lifting heightmm3000Overall length (without fork)mm2580263827482766Overall widthmm11501225Packaging & Shipping

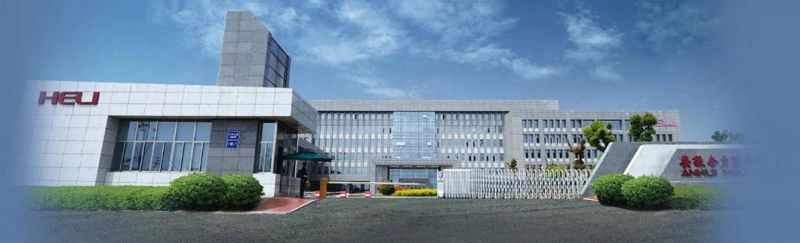

Company Profile

HELI Co. Ltd Limited is the main subsidiary of Anhui forklift group company,was listed on the Shanghai stock exchange at 1996, the registered capital of 514 million yuan, is currently China's large scale and complete industrial chain, comprehensive strength and good economic benefits of industrial vehicle research and development, manufacturing and export base; is the first listed company in China forklift industry, have national enterprise technology center, is also a national innovation oriented enterprises, key high-tech enterprise of national torch plan project of Anhui province construction machinery (Hefei) base of leading enterprises.

HELI forklift leading product is"HELI" brand series of forklift, online production of 1700 kinds of models, 512 kinds of products with independent intellectual property rights, the comprehensive performance of the products in the leading domestic and international advanced level. Since 1991, the main economic and technical indicators for 25 consecutive years to maintain the leading position in the domestic industry. 2006, forklift group had enter the world's top 10 industrial vehicles industry, in 2011 ranked eighth in the international. The company has an independent marketing network in the country, the establishment of 24 provincial-level marketing network and two more than and 400 agent sales service outlets, with a sound and perfect service system.

Has establish a network of overseas agents In over 80 overseas countries and regions, the products are sold to 140 countries and regions in the world, including in Europe and the United States accounted for the company's export volume 60%. complete sales exceeded 80 thousand units in 2013, which exceeded ten thousand units for export, HELI forklift brand share exceeded 27% of domestic market, total profit and tax of 1 billion 4 million yuan, registered number of employees over 8000 people. "13th Five-Year", Anhui HELI will aim for "hundred years HELI,  world top five "as the goal, and strive to become the China industrial vehicle industry leader, the industry leader in global industrial vehicles," China HELI, lifting the future".

Our Advantages

FAQ

1. Are you the HELI forklift dealer?
Yes, we have been HELI forklift dealer for more than 5 years.

2. What is your MOQ for forklift?
The MOQ is 1 set forklift.

3. Do you have the after-sale service?
Yes, HELI has the internationla after sale service.

4. What trade terms do you accept?
FOB, CIF, EXW
