• Model NO.：FB30
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*125mm*45mm
• Weight：5100kg
• Wheelbase：1700mm
• Battery：80V-450ah
• Max. Lifting Height：3000mm
• Power Unit：Battery
• Tire Type：Pneumatic
• Ground Clearance：140mm
• Gradeability：15%
• Mast Tilt Angle：6,12
• Optional：Side Shifter,Solid Tires,Cab, Fork Positioner.etc
• Transport Package：Container
• Specification：2610*1230*2250mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Features    1Manufacturer                       LTMG2Model                                    FB303Load capacity                         kg30004Load center                            mm5005Power unit                              Battery ,diesel ,gasoline  Battery6Operator type                         Driver/seat  7Tire type                             Front/rear Pneumatic tires 8Wheel                                    Number      Front/rear 2X/2Dimension  9Max. lifting height                    mm300010Free lift                                  mm16511Fork sizeL*W*Tmm1070*125*4512Tilt range                                Mast forward/backward       deg6/1213Overall length(without fork)     mm251014Total width                              mm122515Mast height (fork lowering)    mm207516Overall height fork raised       With backrest               mm426017Height to head guard              mm219018Turning raduis(outside)           mm214019Front face of fork to front axle mm48520Min. right angle stacking aislenot add load length&clearence             mm2080Performance   21Speed Max Travelling
full/no loadkm/h13.5/1522Lifting
full load            mm/s29023Lifting
no load              mm/s49025Gradeability                               Full load   %12.5Weight            26Truck weight                          kg466027Weight  distributionFull  load
front/rear     kg3635/55528No  load
front/rear  kg1885/2775Frame           29Tires                                       Number front/rear2/230Model front axle  28x9-15-12PR31rear axle 18x7-8-14PR32Wheel base                               mm160033Tread           Front/rearmm1000/95034Ground clearence                  At lowest point(mast)              mm140Frame mm12035Brake                                            Service  brake Hydraulic-foot pedaParking brake Mechanical leverElectric motor and controller        36Battery Voltage/capacityV/AH/5hr80V-50037Weight (standard)kg122038Electric motorDriving motor kw/60min1139Hydraulic driving motorkw/5min1040Control type Electric driving AC41Operating pressure                    Hydraulic system pressurekg/cm²175
Product Features
1.Equipped with imported original American Curtis electric control system; High voltage and large capacity battery can supply the      forklift with strong power.
2.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3.Equipped with full set of LED lamps, which are brighter and energy saving.
4.At the rear of the forklift truck equipped with a rear combination lamp, includes tail lights, brake lights, backup lights and flash warning light function, which greatly improved the visibility at the back of the forklift truck.

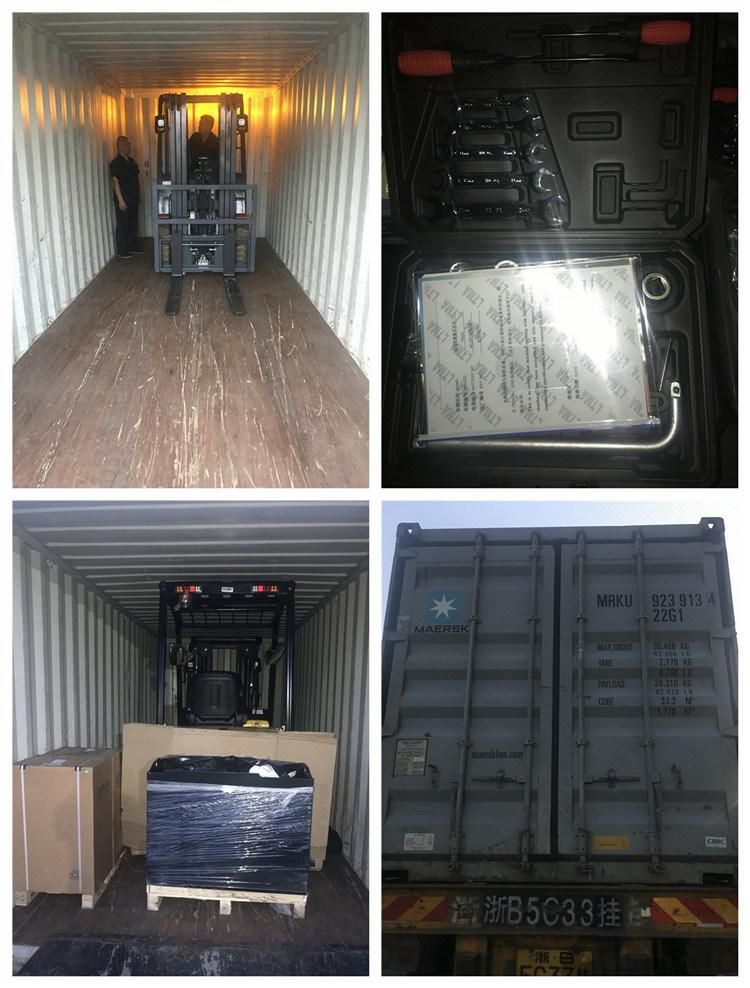

Shipping & Packaging

After-sale Service

1.LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents
around the world can supply LTMG professional after-sale service.

2.All the product of LTMG supplied with one year or 2000 working hours (which occurs first)
period quality warranty.

3.Detail clauses and policies please check our website and product certificate.

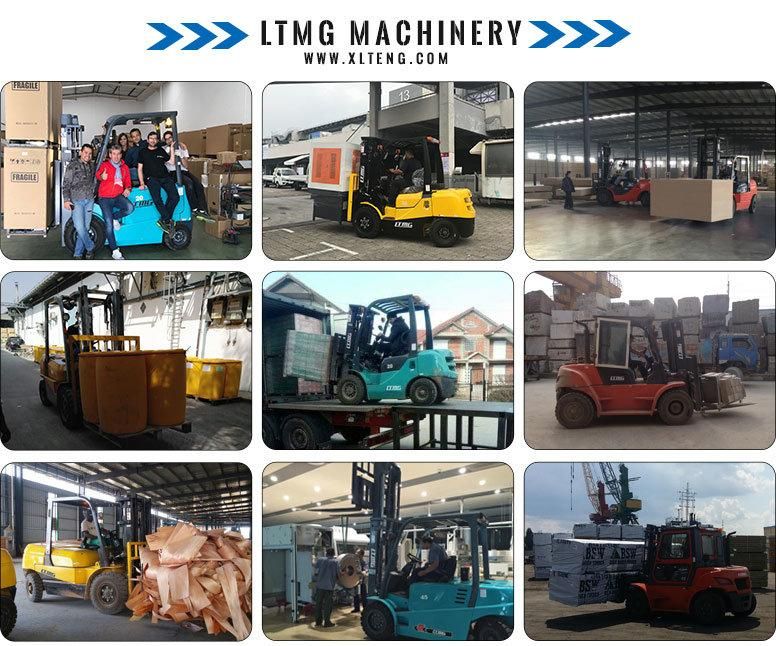

Application
