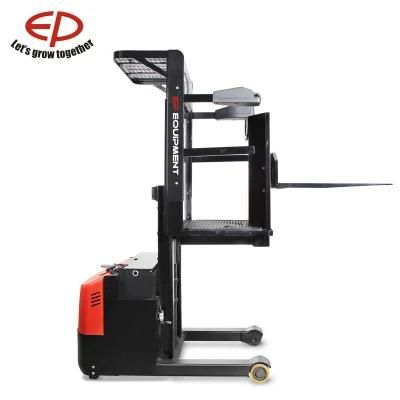

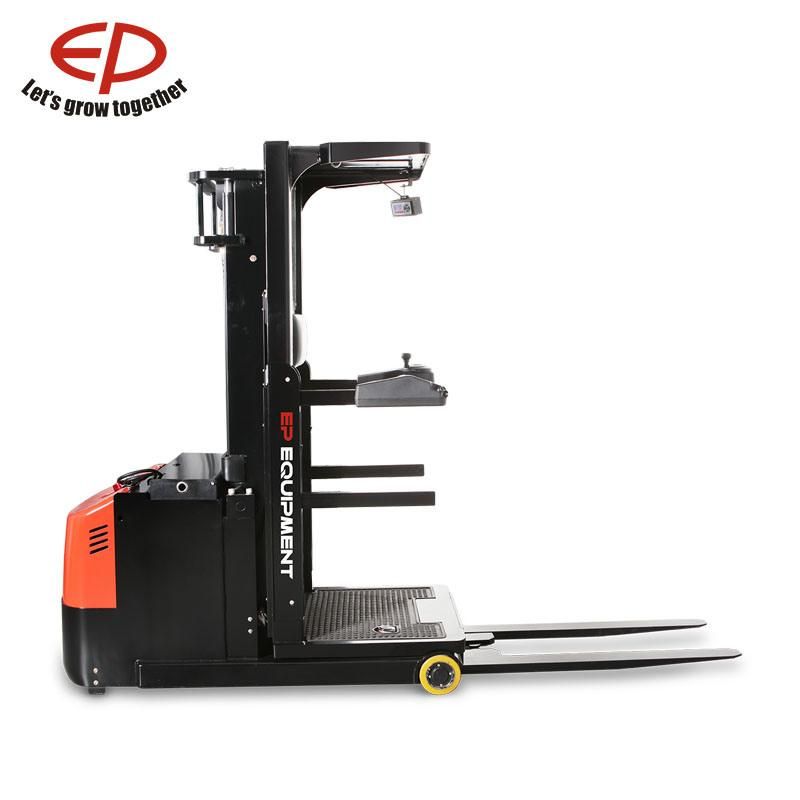

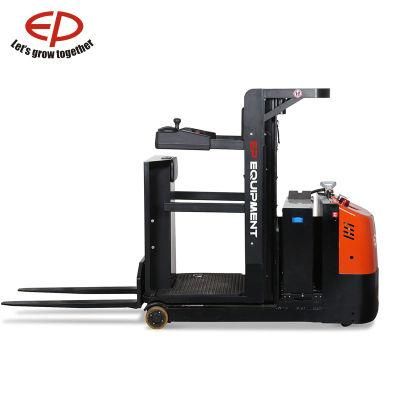

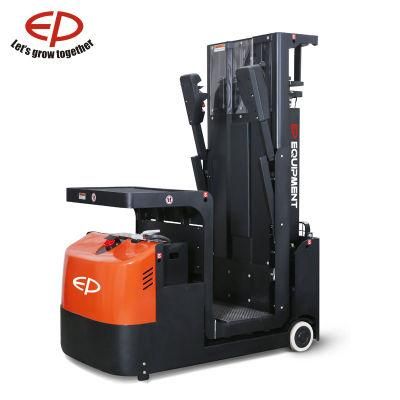

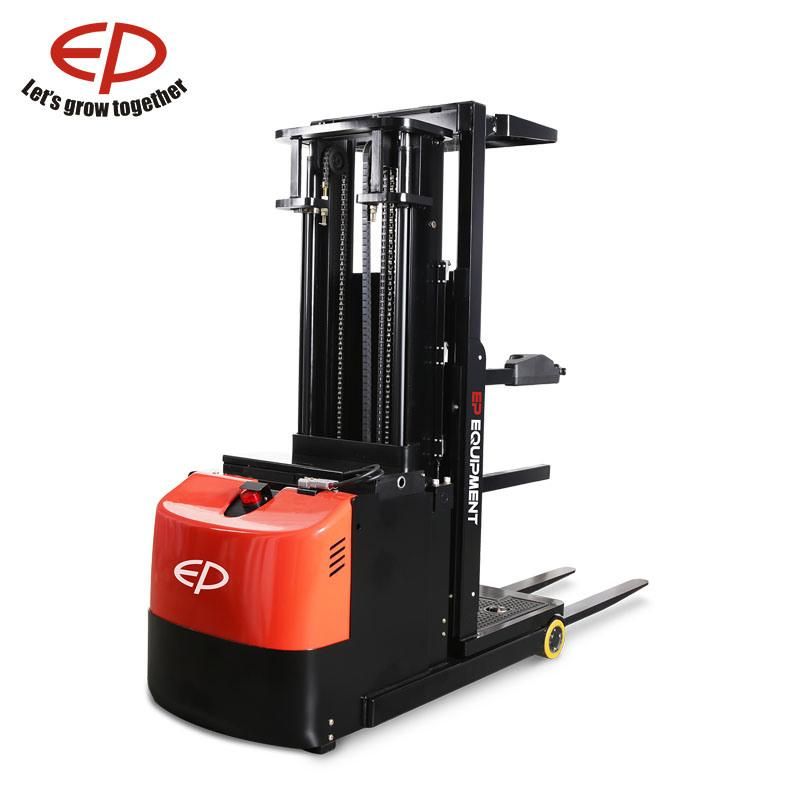

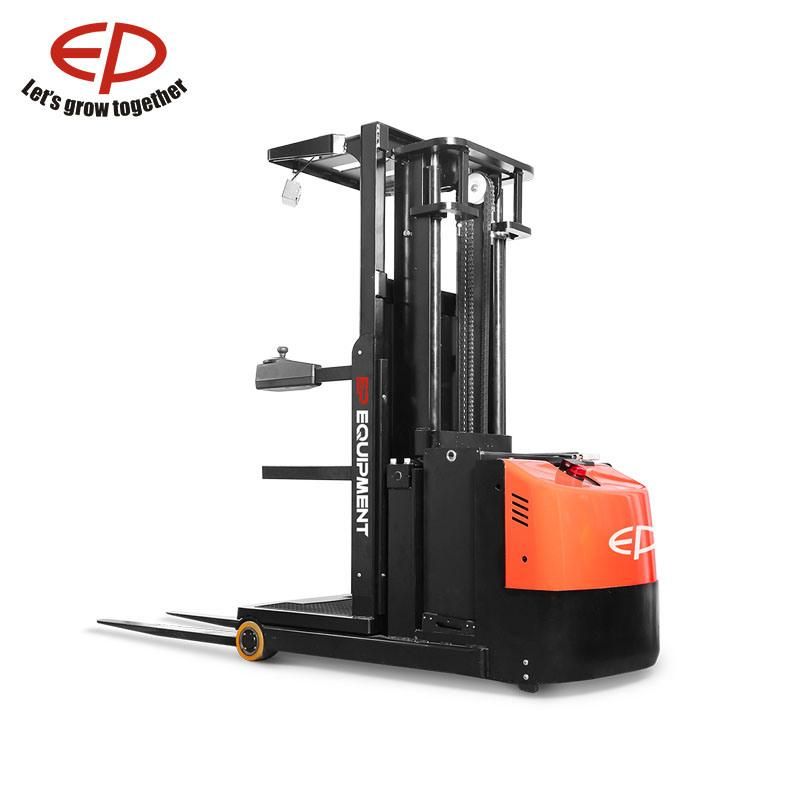

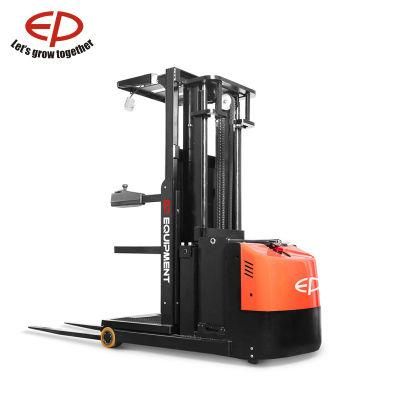

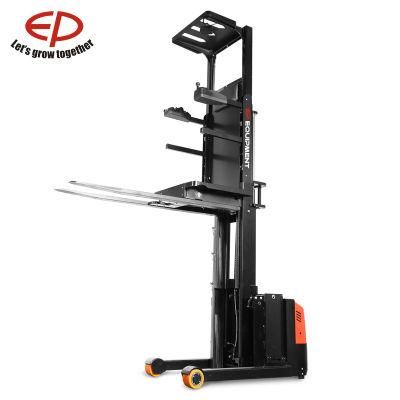

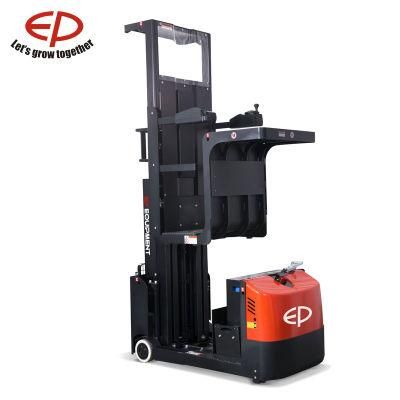

1.0 Ton Order Picking Truck Medium Level Order Picker

ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.
  • Cab Location：Not Adjustable
  • Type：Order Picker
  • Power：AC Motor
  • Load Capacity：1000kg
  • Fuel：Electric
  • Load center：600mm

Base Info

  • Model NO.：JX2-4
  • Lift height：3137mm
  • Condition：New
  • Wheelbase：1365mm
  • Turning Radius：1600mm
  • Travel Speed(H:0-610mm)：8 Km,H
  • Travel Speed(H610-1940mm)：3.7 Km,H
  • Travel Speed(H:1940-2600mm)：2.1 Km,H
  • Travel Speed(H:2600-Max)：0.8 Km,H
  • Drive Motor：2.5kw
  • Lift Motor：3kw
  • Battery：24V,360ah
  • Drive Type：AC
  • Steering Type：Electronic
  • Lift Speed：0.13,0.16
  • Lowering Speed：0.16,0.18 M,S
  • Service Brake：Electromagnetic
  • Fork：35*100*1070mm
  • Transport Package：Export Standard
  • Specification：2750*860*2270mm
  • Trademark：EP
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3500units

Description





Addition data8.1Type of drive unit  ACAC10.5Steering type  ElectricElectric10.7Sound pressure level at the driver's  ear dB (A)7070
