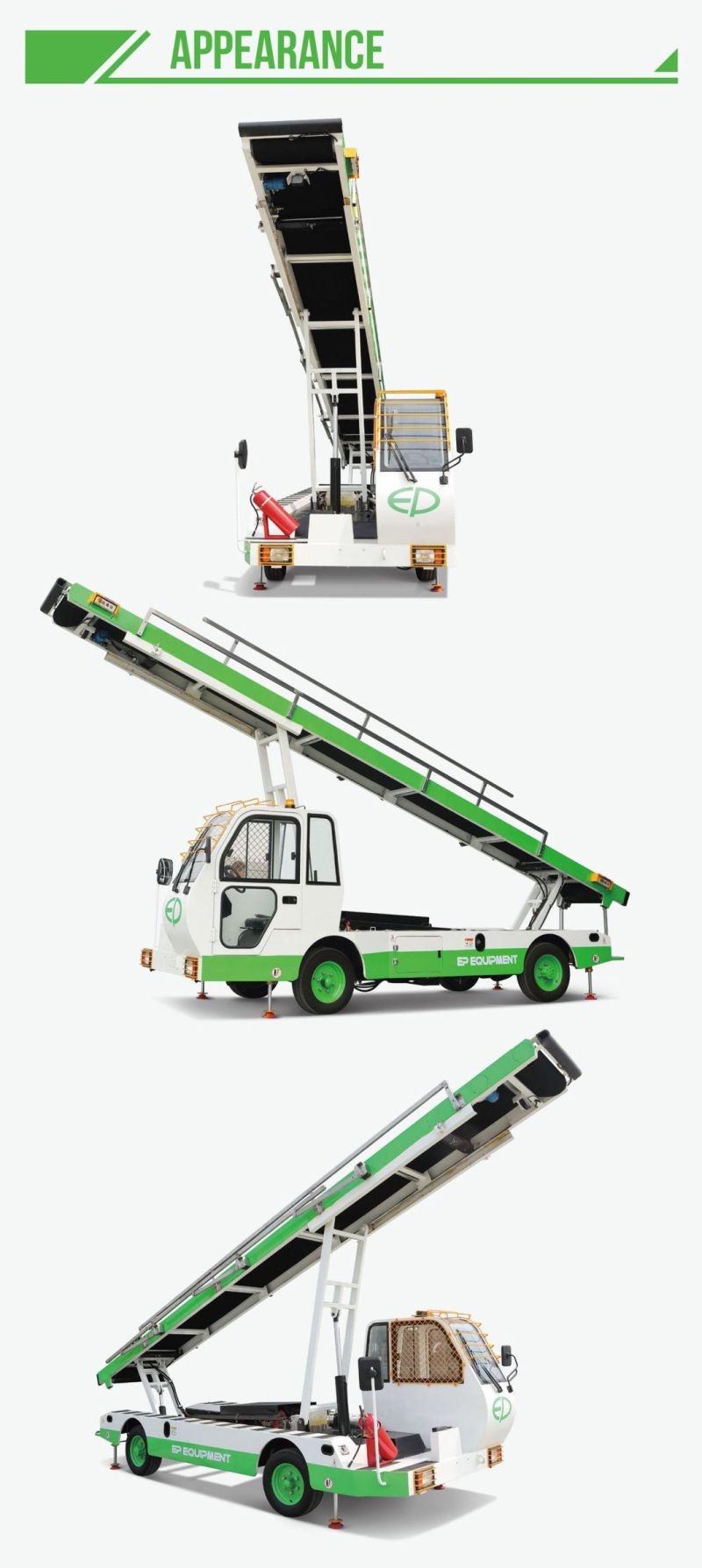

Gse Diesel Engine Powered Airport Light Towable Conveyor Belt Loader
ZHEJIANG EP EQUIPMENT IMP. & EXP. CO., LTD.- Cab Location：Not Adjustable
- Type：Belt Loader
- Power：Diesel Engine
- Load Capacity：≤1T
- Fuel：Diesel
- Load center：None
Base Info
- Model NO.：BLC801-CK
- Lift height：4200mm
- Condition：New
- Engine：Kohler
- Transmission：Okamura
- Wheelbase：2900mm
- Tread (Front/Rear)：1730,1680mm
- Max Turning Diameter：15800mm
- Self Weight：3560kg
- Fuel Type：Diesel
- Conveyer Belt Width：700mm

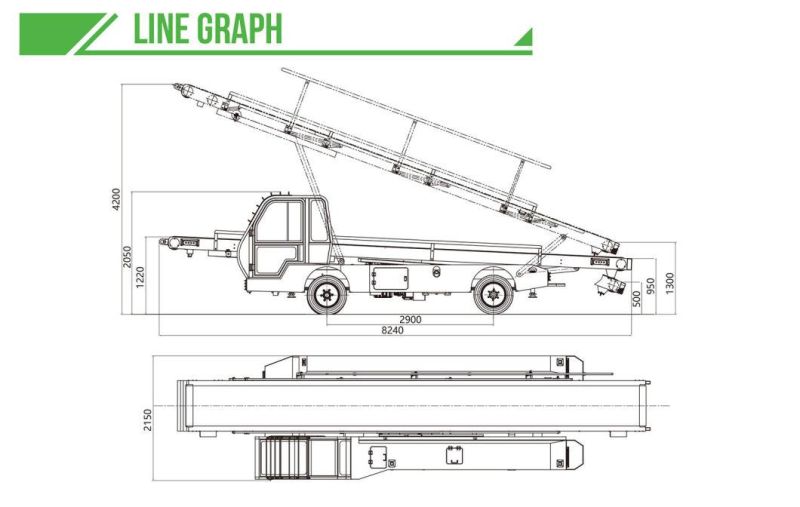

- Size(L*W*H)：8240*2150*2050mm
- Horizontal Transportation：1080kg
- Max Height Transportation：600kg
- Max Single Cargo Transportation：400kg
- Front Axle Weight：2320kg
- Rear Axle Weight：1240kg
- Conveyer Frame Dimension：8000*880mm
- Transport Package：Nude
- Specification：8240mm*2150mm*2050mm
- Trademark：EP
- Origin：China
- HS Code：8427209000
- Production Capacity：2000,Year
Description
Transport capacity of conveyer beltTotal transport weight of conveyor belt during horizontal transportation (kg) 1080 Total transport weight of conveyor belt during max height transportation (kg) 600 Max single cargo transportation gross weight (kg) 400
