• Model NO.：FD40
• Load center：500mm
• Lift height：3-6m
• Condition：New
• Fork Size：1070mm*150mm*50mm
• Weight：5050kg
• Engine：Chinese or Japan
• Wheel Base：1700mm
• Color：Customized Available
• Service Brake：Hydraulic
• Max. Lifting Height：3000mm
• Truck Weight：5050kg

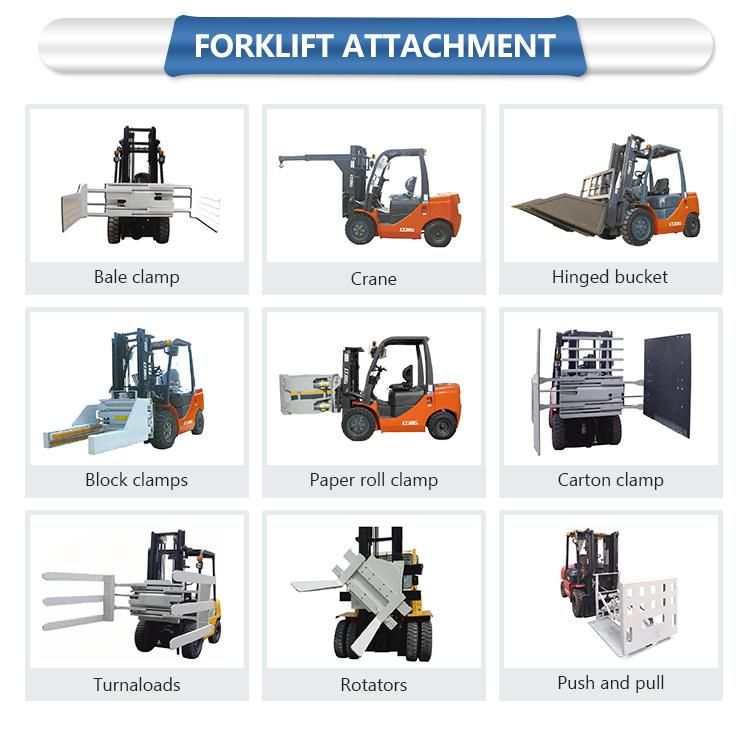

• Optional：Side Shift, Longer Forks, Close Cab, AC, etc
• Transport Package：Container
• Specification：2870mm*1365mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer                         LTMGModel                                FD40Load capacity                       kg4000Load center  mm500Power unit   Diesel  Operator type   Driver/seatTire type  Pneumatic Wheel Front/rear 2/2Max. lifting height                mm3000Free lift                                mm150Fork size                 L*W*Tmm1070*150*50Tilt range                       Mast forward/backward        deg6/12Overall length(without fork)     mm2870Total width  mm1365Mast height (fork lowering)   mm2150Overall height fork raised     With backrest                       mm4250Height to head guard             mm2140Turning radius(outside)          mm2530Front face of fork to front axle mm485Min. right angle stacking aisle
without load length&clearance  mm2940Speed Max Travelling         full/no loadkm/h16.5/18Lifting                        full/no load      mm/s380/480Lowering                   full/no load      mm/s450/420Max.drawbar pull         Power shift T/M       full/no load                                      kg2200/1000Manual shift T/M     full/no load                                      kg2200/1000Gradeability at 1.6km/h       Power shift T/M       full/no load                                      %18/20Manual shift T/M     full/no load                                      %18/20Truck weight kg5050Weight  distribution      Full  load              front/rear    kg7890/1140No  load               front/rear     kg1810/3240Tires                          Numberfront/rear2/2Modelfront axle 250-15-16PRrear axle6.50-10-10PRWheelbase  mm1800Tread                                           Front/rearmm1120/970Ground clearance              At lowest point(mast)                mm120Framemm135Brake                                           Service  brake Hydraulic-foot pedal                                        Parking brake Mechanical-hand lever                                 Battery                                         Voltage/capacityV/AH12/80Engine                                         Model ISU-ZU 4JG2Rated powerkw/rpm44.8/2450Rated torqueN.m/rpm186/1800Number of cylinders 4PlacementL3.059Fuel tank capacityL70Transmission                             Speed forward/backward        Power shift T/M            Manual shift T/M             1-1 power shift T/M
2-2 manual shift T/MOperating pressure                   Hydraulic system pressure       kg/cm²180
Product Features


1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.


LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
