• Model NO.：JK5000
• Lift height：3000-6000mm
• Condition：New
• Fork Length ：1520mm
• Rated Lifting Force：5000kg
• Turning Radius：4500mm
• Door Frame Width：0.7m
• Axle：Large Wheel Steel Bridge
• Tire：16,70-20 Tires
• Drive Mode：Four-Wheel Drive
• Engine Model：Yunnei Yn38gbz
• Engine Power：76 Kw
• Max. Full Load Travelling Speed Km/H：72 Km,H
• Gearbox：280 Double High And160; Low Speed Torque Converter
• Fuel Tank Volume：60 L
• Power Battery Voltage：24 V
• Payment Iterm：T,T, LC, O,a, Dp
• Warranty Period：1 Year Free Warranty
• Transport Package：Container
• Specification：4400*1900*2900mm
• Trademark：SDJK
• Origin：Shandong
• HS Code：8427209000
• Production Capacity：50sets,Month

Basic Info.

Model NO. JK5000 Lift height 3000-6000mm Condition New Fork Length  1520mm Rated Lifting Force 5000kg Turning Radius 4500mm Door Frame Width 0.7m Axle Large Wheel Steel Bridge Tire 16/70-20 Tires Drive Mode Four-Wheel Drive Engine Model Yunnei Yn38gbz Engine Power 76 Kw Max. Full Load Travelling Speed Km/H 72 Km/H Gearbox 280 Double High And160; Low Speed Torque Converter Fuel Tank Volume 60 L Power Battery Voltage 24 V Payment Iterm T/T, LC, O/a, Dp Warranty Period 1 Year Free Warranty Transport Package Container Specification 4400*1900*2900mm Trademark SDJK Origin Shandong HS Code 8427209000 Production Capacity 50sets/Month

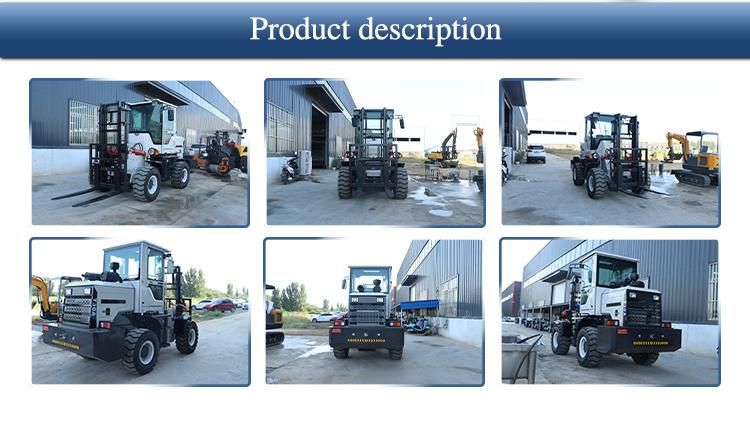

Product Description

Hot Sale 5 Ton All Terrian Forklift Full Free Diesel Forklift
4 X 4  Rough Terrian Forklift


JK5000 is a multi-functional forklift with optional engine that adapts to all terrains. With superior performance, high configuration, low fuel consumption, JK5000 can work with different terrain, such as construction site, dock yards, construction mines, muddy road, etc. 2020 mini all terrian forklift have low fuel consumption and high performance engine which makes the machine more efficient. Smaller turning radius is suitble for narrow space. The product can replace different optional accessories, such as cylinder holding clamp, bucket, side shifter, grample, etc. It can save human efforts as well as improve work efficiency.

1) Adapt to the All terrain
2) Multi-functional Forklift
3) One year warranty
4) Lifetime free technical support


Product Name	Off-Road Forklift
Model	JK-5.0T
Size	4400*1900*2900mm
Curb Weight	5500kg
Fork Length	1520mm
Climbing Angle	≤38°
Rated Lifting Force	5000kg
Lifting Height	3000-6000mm
Turning Radius	4500mm
door frame width	0.7m
Door frame front ground clearance	300-380mm
Wheelbase center ground clearance	350mm
Frame	Hinged thickness 3.5 mm
Axle	Large wheel steel bridge
Tire	16/70-20 tires
Drive Mode	Four-wheel drive
Engine Model	Yunnei YN38GBZ
Engine Power	76 KW
Max. Full Load Travelling Speed km/h	72 km/h
Gearbox	280 double high and  low speed torque converter
Fuel Tank Volume	60 L
Power Battery Voltage	24 V
Payment Iterm	T/T, LC, O/A, DP
warranty period	1 year free warranty
Delivery Time	Wthin 7 days

Company Information


Our Service

Certifications

FAQ

Q: Are you trading company or manufacturer ? A: We are manufacturer and we are able to provide you with a reasonable price. Q: How long is your delivery time? A: Generally it is 7-14 days , because our stock have enough machinery. Q: Do you have warranty?A: Yes , we have one year warranty, and we also provide lifelong free technical support. Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery, additionally, we have a serious and professional quality-checking team. Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF The company's aim: quality seeks survival, sincerity seeks development. We will be optimum with quality, cheapest advantage with price, more high-quality with service to more customers. We makes the quality, integrity and service as a business purpose in order to extend our sincere attitude to meet the needs of customer.We are looking forward to receiveing your message.
