• Model NO.：FD25
• Fuel：Diesel
• Load center：500mm
• Lift height：3000-6000mm
• Condition：New
• Transmission：Power Shift Transmission
• Fork Size：1070X125X45mm
• Application：Indoor, Outdoor Warehouse, Repair Shops, etc
• Service：OEM, ODM Service
• Certification：CE, ISO9001, ISO14001
• Transport Package：in Nude with Necessary Protection
• Specification：2773x1225x2235mm
• Trademark：FUPIA
• Origin：China
• HS Code：842790000
• Production Capacity：30000units,Year

Overview Product Description

FUPIA 1.5-5Ton diesel forklift with Pull Attachment can be installed or removed in less than one minute and does not require removal of the lift truck forks. Ideal for applications requiring an attachment for slipsheets on an intermittent or irregular basis.

Feature:

- Fully floating overhead guard to lower the centre of gravity, increases truck stability and residual lifting capacities.
- Robust and durable chassis with full belly guard construction that protects the engine compartment from dust, water and dirt.
- LCD Display - Operator can monitor all critical systems during operation to helps reduce costs and the risk of excessive downtime.
- Compact design with small turning radius to give excellent manoeuvre.
- The eco-friendly design of the FUPIA forklifts full protection to both the user and the environment.
- The eye-catching design with full sets of lights makes FUPIA forklifts quite safe for use at night, the optional blue spot light is available for safe operation in dark lights.
- The high performance tires for FUPIA forklifts increase the work life of tires much more.
- High strength structural design and integrated caste of the clamping structure apply to high intensity continuous operation.-Goods of every kind are now being handled with slipsheets instead of wooden pallets.
- Slipsheets are becoming more common in many industries including the transport and storage of food & beverages, paper,  building materials, hardware, chemical and agricultural products.

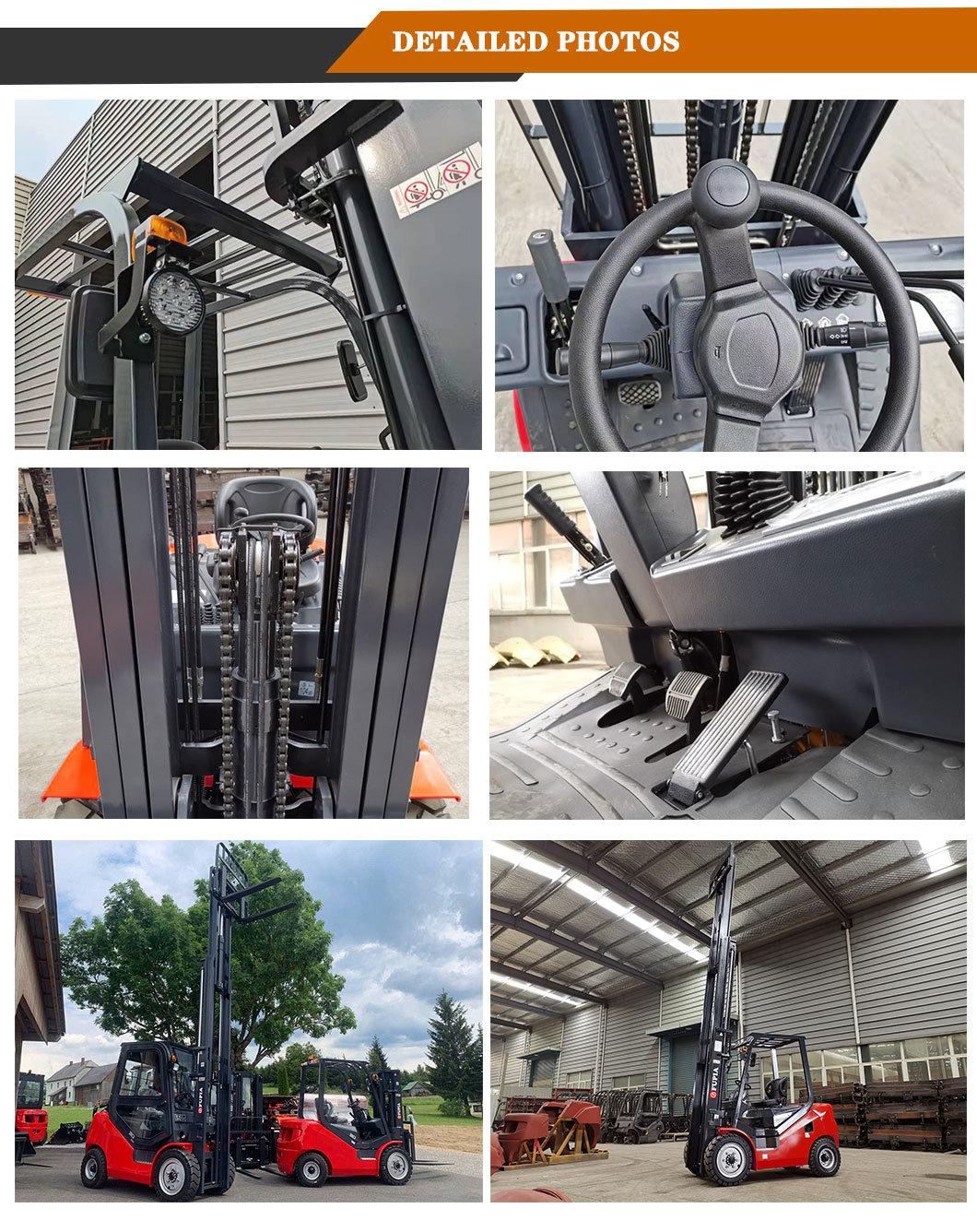

Detailed Photos

Product Parameters General 1Brand FUPIA2Model FD30T-FNFD35T-FNFD30T-JBN   FD35T-JBN  FD30T-JMNFD35T-JMN3Power Type  Diesel4Rated Load CapacityQ(kg)3000350030003500300035005Load CentreC(mm)500 Characteristic & Dimension6Rated Lift HeightH3(mm)30007Free Lift HeightH2(mm)1008Fork Size (L×W×T)mm1070×125*459Mast Tilt Angle (F/R, α°/β°)deg6°/12°10Fork Overhang (Wheel Center to Fork Face)X1(mm)48411Rear OverhangX2(mm)59563559563559563512Ground Clearance (Bottom of Mast)H7(mm)14513Length to Face of Fork (Without Fork)L1(mm)27002775270027752700277514Overall WidthB1(mm)122515Mast Lowered HeightH1(mm)207016Mast Extended Height (With Backrest)H4(mm)407017Overhead Guard HeightH5(mm)223518Turning Radius (Outside)Wa(mm)24252500242525002425250019Min.Aisle width for pallets Ast(mm)418042554180425541804255Performance20Travel Speed (No Load)km/h1921Lifting Speed (Full Load)mm/sec41038041038041038022Lowering Speed  (Full Load)mm/sec45023Max.Drawbar Pull (Full Load/No Load)KN 24Max.Gradeability (Full Load)%20Chassis35Tyre (Front x 2)mm28*9-15-12PR26Tyre (Rear x 2)mm6.5-10-10PR27Front TreadB2(mm)100028Rear TreadB3(mm)98029WheelbaseY(mm)1700Weight30Total Weightkg44604775446047754460477531Front Axle Weight Distribution (Full Load)kg67146997671469976714699732Rear Axle Weight Distribution (Full Load)kg74677774677774677733Front Axle Weight Distribution (No Load)kg17841910178419101784191034Rear Axle Weight Distribution (No Load)kg267628652676286526762865Power & Transmission35BatteryV/Ah12/9036Engine Model C490BPG -37(EUIII)C240NKFC-01 (EUIII)Mitsubishi S4S (EUIII)37Engine Manufacturer  XINCHAI ISUZUMitsubishi 38Rated Output / r.p.m.kw36.8/265034.5/350035.4/225039Rated Torque / r.p.m.N·m156/1800139/1800177/170040No.of Cylinder 441Bore x Strokemm90×10586×10294*12042Displacementcc26702369333143Fuel Tank CapacityL5044Transmission Type Powershift  ( Manual)45Transmission Stage (FWD/RVS) 1/1(2/2)46Operating Pressure (For Attachments) Mpa17.5Certifications
