• Model NO.：BDD-A
• Lift height：1600mm-5000mm
• Condition：New
• Colour：Red or Yellow Optional
• Certification：CE ISO9001
• Fork：Fixed or Movable Optional
• Transport Package：Bubble Wrap
• Specification：L1860mm*W800mm*H2090mm
• Trademark：ANDY,OEM
• Origin：Jiangsu
• HS Code：8427109000
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. BDD-A Lift height 1600mm-5000mm Condition New Colour Red or Yellow Optional Certification CE ISO9001 Fork Fixed or Movable Optional Transport Package Bubble Wrap Specification L1860mm*W800mm*H2090mm Trademark ANDY/OEM Origin Jiangsu HS Code 8427109000 Production Capacity 10000pieces/Year

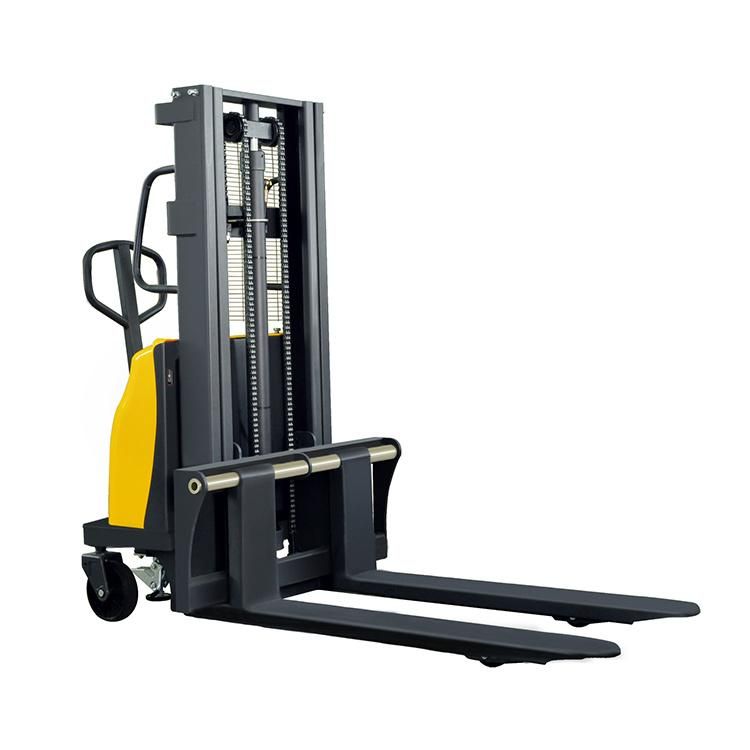

Product Description

Product Application Technology Characteristics

1. Steel plate links turn to durable;
2. The explosion-proof vaIve ensures the platform decline smoothly,and protects the operator;
3. Adjust the fork to the same height with the leg;
4. The foot brake is easy to operate.

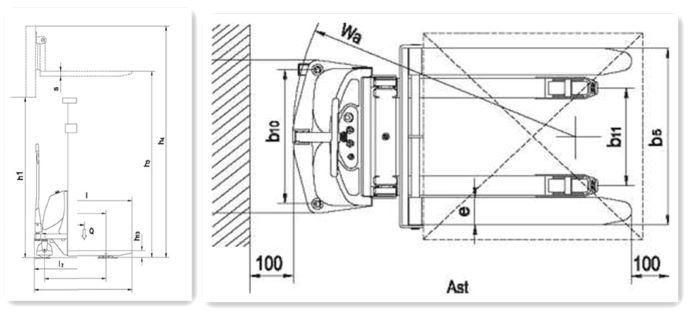

Technology Parameter

model	unit	BDD-A15	BDD-A20
driving mode		manual	manual
rated load	kg	1500	2000
load center distance	c(mm)	500	500
front overhang	x  (mm)	745	745
wheel tread	y  (mm)	1185	1185
weight(with battery)	kg	380-440	390-460
wheel material		nylon wheel	nylon wheel
front wheel size	(mm)	φ180*50	φ180*50
rear wheel size	(mm)	φ80*70	φ80*70
front wheel track	b10  (mm)	700	700
rear wheel track	b11  (mm)	410/525	410/525
lifting height of fork above ground	h1  (mm)	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500
height of the gantry lowed	h3  (mm)	2090/1590/1840/2090/2340	2090/1590/1840/2090/2340
maximum height of forklift work	h4  (mm)	2100/2500/3000/3500/4000	2100/2500/3000/3500/4000
minimum height of fork above ground	h13  (mm)	90	90
overall length	l1  (mm)	1860	1860
fork size	s/e/l(mm)	50*160*1100	50*160*1100
overall width	b1  (mm)	800	800
fork width	b5  (mm)	320-1030	320-1030
channel width (1000mm*1200mm tray)	ast  (mm)	2305	2305
channel width   (800mm*1200mm tray)	ast  (mm)	2258	2258
radius of turning circle	wa(mm)	1425	1425
lifting speed,full load/no load	m/s	0.08/0.1	0.08/0.1
falling speed,full load/no load	m/s	0.09/0.12	0.09/0.12
service brake		mechanical brake	mechanical brake
lifting motor power	kw	1.6	1.6
battery	v/ah	12/120	12/120
noise level according to DIN 12053	db(a)	<70	<70

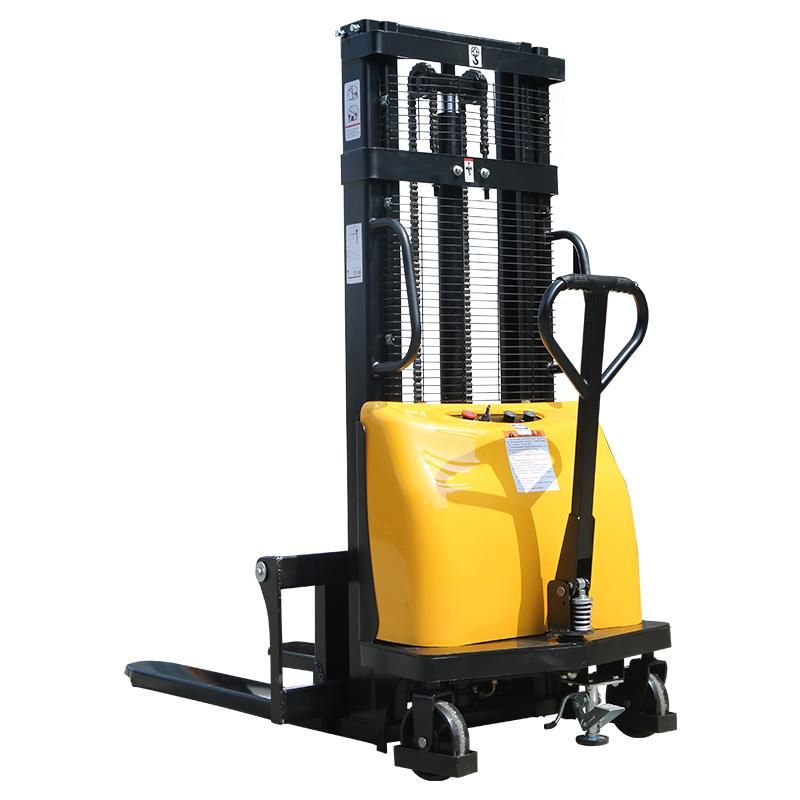

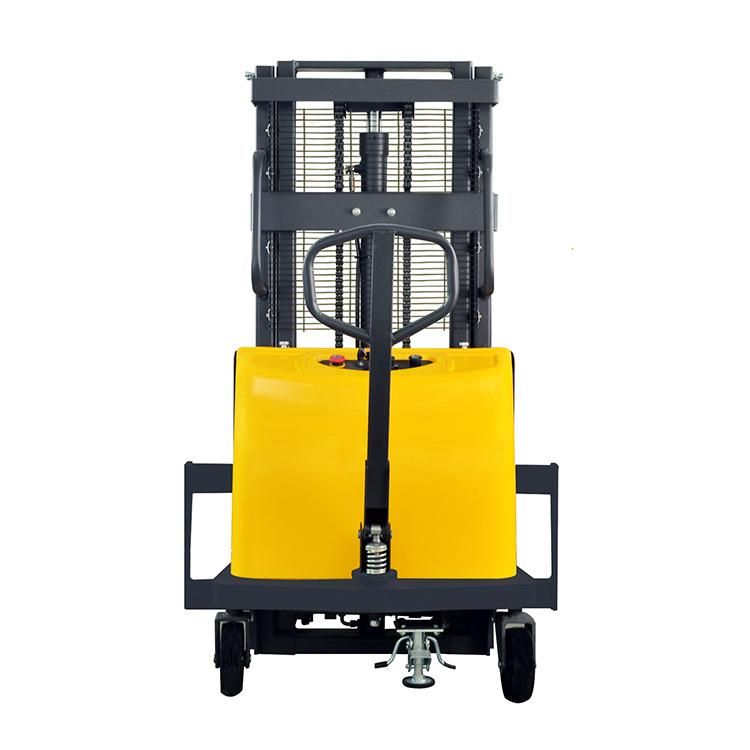

Product Details

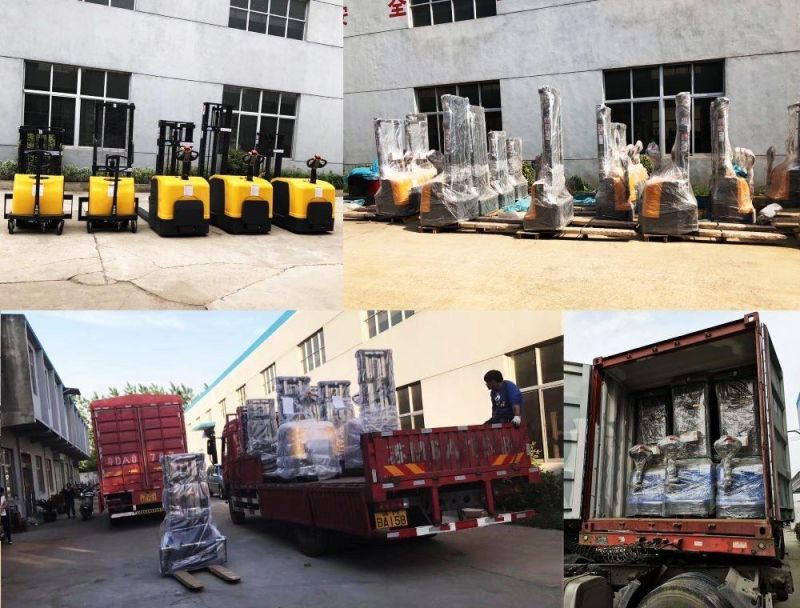

Our Factory

    Taixing Andylift Equipment Co.,Ltd. was founded in 2009, we have powerful R&D ability and advanced production technology that make sure of product quality. We have accumulated abundant experience of production and marketing for semi-electric stacker ,all-electric stacker, manual pallet truck ,electric pallet truck etc. So many years of experience makes us professional in the field. We provide the most comprehensive range of products with stable quality, first class after-sale service, technical and parts supports by the professional and high efficiency team working behind. We have already exported various kinds of products to overseas countries and regions such as Indonesia, Vietnam, Myanmar, Korea, Malaysia, South African etc.
Our advantage includes:

1. Stocking for standard models, delivery timely;
2. Various customized products;
3. Response quickly for inquiry and complain;
4. Reliable quality and the competitive price;

Any request, any details,as long as you want to know,please feel free to contact us,we will warmly welcome!




FAQ1,   Q: How long is the warranty of your products?
      A:Equipment max provide 12 months or 2000 working hours warranty as standard ,whichever comes first.

2,   Q:What payment terms do you accept?
      A:Our standard payment term is 30% in advance and 70% in balance by TT before delivery
or original B/L copy.

3,   Q:How long can I get my order finished?
      A:15-20 days for classic forklift ,pallet truck,stacker and attached, 5-10 days for spare parts.

4,  Q:Can you customize the configuration/logo/lable/color according to our requirements?
      A:Yes.

5.   Q:Do you accept small order?
      A:Yes,the MOQ is 1 unit for most of the products,for very small handing equipment,we can check case by case.
