• Model NO.：LTR30
• Lift height：>5000mm
• Condition：New
• Colour：Customize
• Certificate：Ce&ISO9001
• Transport Package：Nude Packing
• Specification：3060*1604*2115mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090

 ModelunitLTR30ProductRated loadKg3000Load center distancemm500Lifting heightmm4000Gantry tilt angle(forward/backward tilt)°(6)(12)Maximum travel speedKm/h30Full load grade°28Self weightKg4380Track(front/rear)mm1560Wheelbasemm1900Tirefront 2x20.5/70-16rear 2x20.5/70-16Dimensions (length x width x height)mm4000x1800x2750Full load liftingspeedmm/s372Minimum turning radiusmm4500Minimum ground clearancemm270    LTMG LTR35T basic configurationenginemodel YN27GBmanufacture YunneiRated power/speedKw/r/min55/2400BatteryVoltageV24capacityAh80TransmissionHydraulicWorking systemPilot operating systemDrive axleDedicated wheel side deceleration bridgefour-wheel drivePneumatic clamp brakeCabin cab with sound system,fan

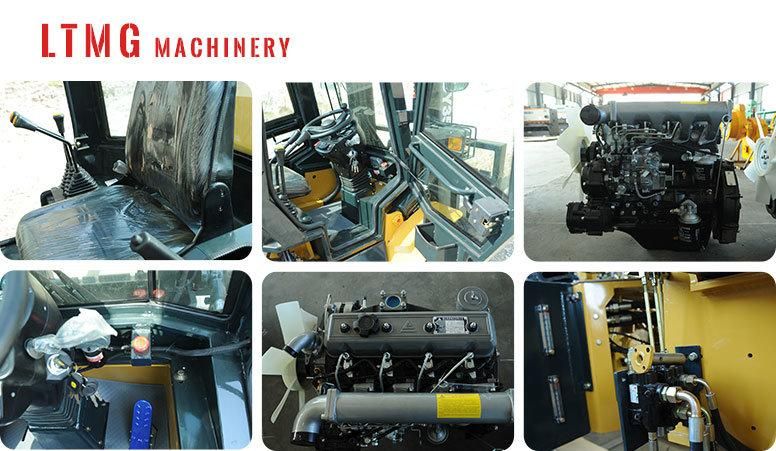

Product Detail:




1. The whole hydraulic electronically controlled gearbox, full hydraulic steering and pilot workmanship make the whole machine more flexible.

2. Equipped with double-bridge four or six-wheel drive, which has large traction and makes it more safe and stable.

3. The articulated frame has a small turning radius and the walking operation handle adopts the advanced technology of German ZF.

4. Install tire clamp attachments which to replace large-scale machinery tires, and configure various special-shaped attachments.

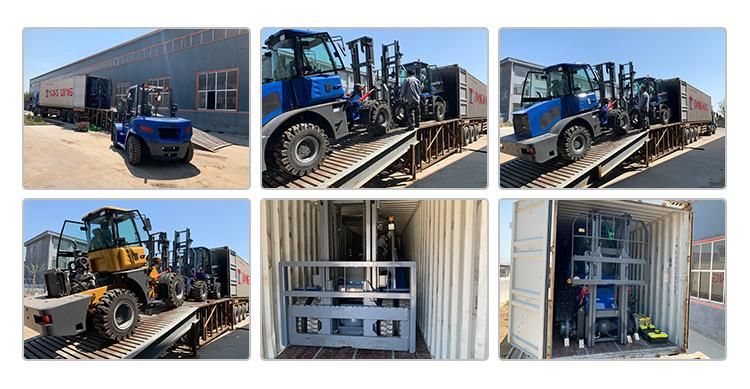

Packing&shipping:





Our customer:





About us:

       Since foundation, LTMG Machinery Group(LTMG)  has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.  with product type and series: 1-40 ton Forklift Trucks(diesel, gasonline, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift loaders,(as well as grapple loaders, side loaders.), wheel excavators and so on.









Welcome to contact us!
