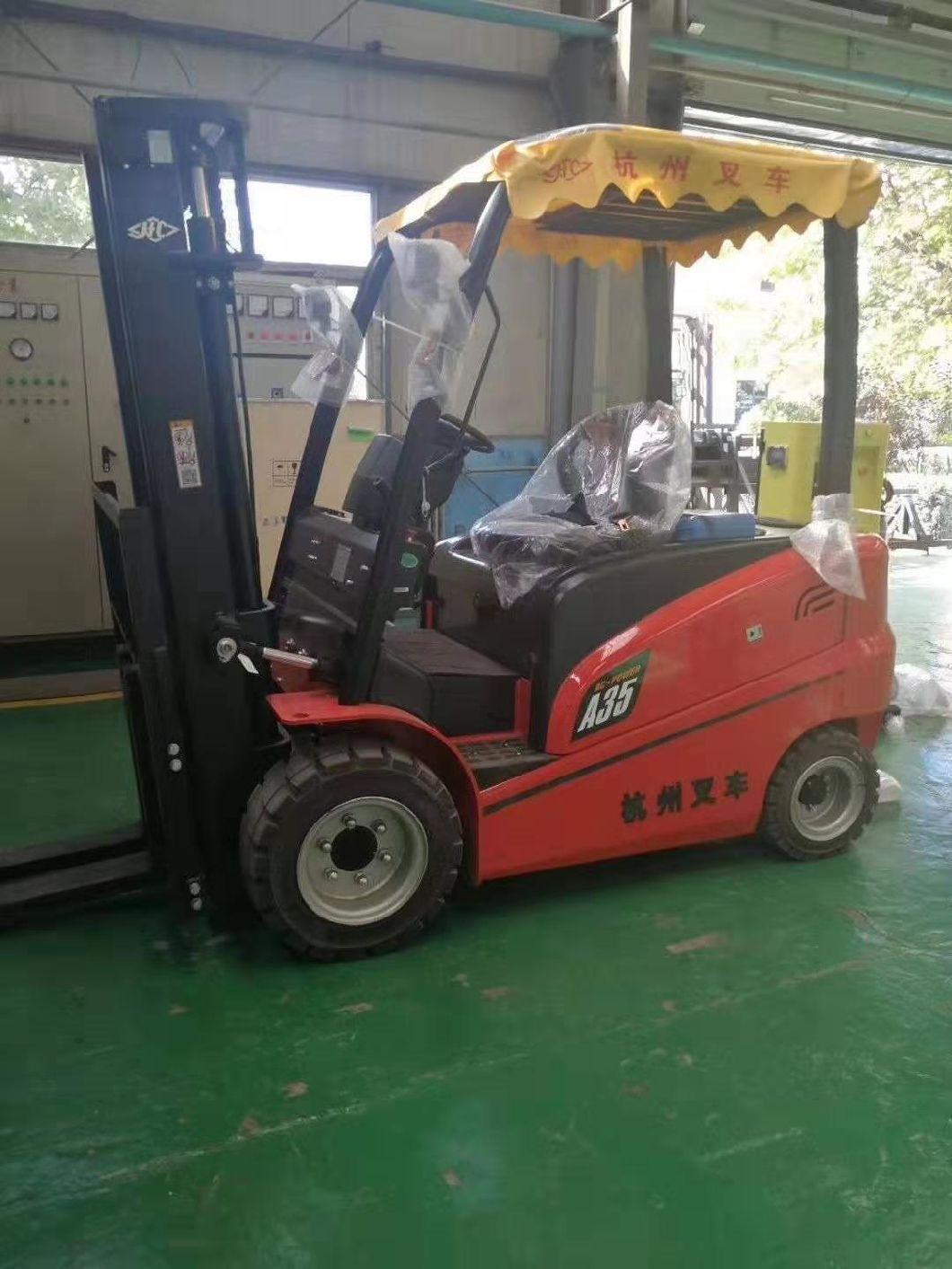

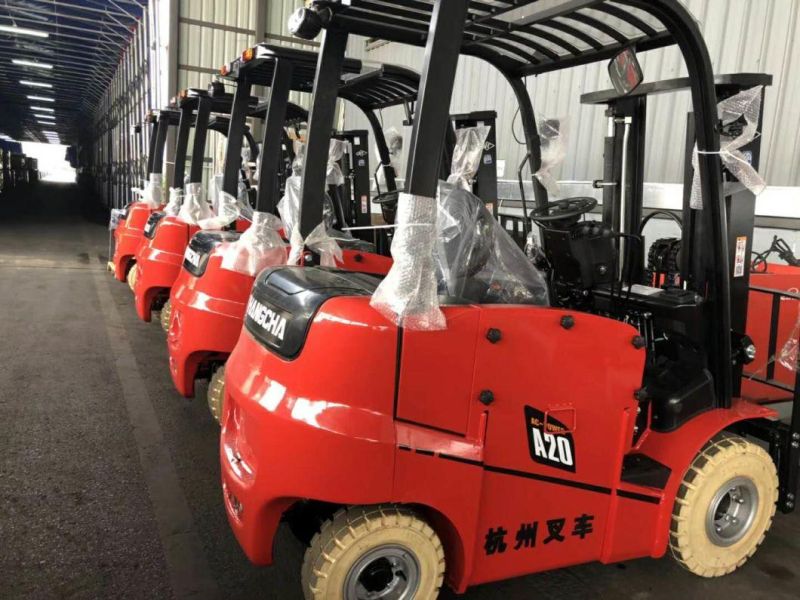

• Model NO.：CPD20-AEY2-I
• Lift height：>5000mm
• Condition：New
• Driving Mode：Sit-on Type
• Free Lifting Height：155mm
• Standard Max.Lifting Height：3000mm
• Mast Tilt,Front/Rear：6,12deg
• Max.Grade Ability(Loaded/Unloaded)：21,24%
• Parking Brake(Loaded/Unloaded)：15,20%
• Min.Turning Radius：1955mm
• Fork Size(L)：920mm
• Cylinder Number：4
• Forklift Gross Weight：2640kg
• Transport Package：Nude Package
• Specification：3130x2210x1995mm
• Trademark：Hangcha
• Origin：China
• HS Code：8427209000
• Production Capacity：50000PCS,Year

Manufacturers type designation CPD20-AC3/C4/ Z3/Z4-ECPD25-AC3/C4/ Z3/Z4-EDrive: electric (battery or mains), diesel, petrol, fuel gas electricelectricOperator type: hand, pedestrian, standing, seated, order-picker seatedseatedLoad capacity/rated loadQ (kg)20002500Load centre distancec (mm)500500Load distance, centre of drive axle to forkx (mm)455455Wheelbasey (mm)14851485Service Weightkg37004180Axle loading, laden front/rearkg5016/6845920/760Axle loading, unladen front/rearkg1628/20721780/2400Tyres: solid rubber, superelastic, pneumatic, polyurethane pneumaticpneumaticTyre size, front 23x9 - 1023x9 - 10Tyre size, rear 18x7 - 818x7 - 8Wheels, number front rear (x = driven wheels) 2x/22x/2Tread, frontb10  (mm)10581058Tread, rearb11  (mm)960960Tilt of mast/fork carriage forward/backwardα/β(°)5/105/10Height, mast loweredh1  (mm)20062006Free lifth2  (mm)140140Lifth3  (mm)30003000Height, mast extendedh4  (mm)40564056Height of overhead guard STD.h6  (mm)21552155Height of overhead guard OPT.h6  (mm)20752075Seat heighth7  (mm)10701070Coupling heighth10  (mm)303303Overall lengthl1  (mm)34123412Length to face of forksl2  (mm)23422342Overall widthb1  (mm)12651265Fork dimensionss/e/l (mm)40/122/107040/122/1070Fork carriage DIN 15 173 --- ISO 2328, class/type A,B ISO2328 2AISO2328 2AFork-carriage widthb3  (mm)11181118Distance between fork-armsb5  (mm)240/1038240/1038Ground clearance, laden, below mastm1  (mm)112112Ground clearance, centre of wheelbasem2  (mm)120120Aisle width for pallets 1000 x 1200 crosswaysAst (mm)37453745Aisle width for pallets 800 x 1200 LenghthwaysAst (mm)39453945Turning radiusWa (mm)20902090Internal turning radiusb13  (mm)730730Travel speed, laden/unladenkm/h14/1414/14Lift speed, laden/unladenm/s0.28/0.440.23/0.43Lowering speed, laden/unladenm/s0.285/0.420.215/0.41Drawbar pull, laden/unladenN12000/1250016000/17000Max. Drawbar pull, laden/unladenN1400018000Gradeability, laden/unladen%11/1211/12Max. gradeability, laden/unladen%13/1413/14Acceleration time, laden/unladen (0-10m)s5.2/4.65.3/4.7Service brake HydraulicHydraulicParking brake ElectricElectricDrive motor rating S2 60 minkW11  AC11 ACLift motor rating at S3 15%kW8.6 DC/8.6 AC/8.6 DC/8.6 ACBattery acc.to DIN 43 531/35/36 A,B,C,no nonoBattery voltage, nominal capacity K5V/Ah48/63048/630Battery weightkg10501050Min. battery weightkg930930Max. battery weightkg12001200Battery dimensionsl/b/h(mm)1028×570×7801028×570×780Energy consumption acc. to VDI cyclekWh/h5.05.8
