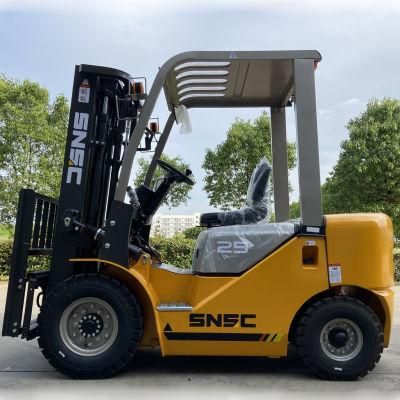

1.5-10ton Diesel Forklift Automatic Hydraulic Montacargas
Jinan Shine International Trade Co., Ltd.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD25
- Lift height：3000~5000mm
- Condition：New
- Engine：Original Isuzu,Mitsubishi (Made in Japan)
- Transmission：Automatic
- Hydraulic System：Japan Shimadzu
- Mast Material：Q235A
- Painting：6 Times
- Welding：Robot and Workers
- Transport Package：Nude Package
- Specification：2570x1175x2120mm
- Trademark：SNSC
- Origin：China (Mainland)
- HS Code：842720900
- Production Capacity：12000 Units,Year
Description
2.5 TON DIESEL FORKLIFT SPECIFICATIONSSpecifications Unit FD25 1 Characteristics Power diesel 2 Rated Capacity kg 2000 3 Center of load mm 500 4 Lifting height mm 3000 5 Free lifting height mm 135 6 Forks L×W×H mm 1070x122x40 7 Tilt Forward/Backward . 6/12 8 Min.turning radius mm 2240 9 Min.ground clearance(Mast) mm 110 10 Overhead guard height mm 2120 11 Height from seat to overhead guard mm 943 12 Front overhang mm 473 13 Perf Max.traveling speed(loaded) km/h 19 14 Max.lifting speed(loaded/empty) mm/s 470/510 15 Drawbar pull/Gradeability kN/% 17/20 16 Dimensions Overall length (without fork) mm 2570 17 Overall width mm 1175 18 Mast lowered height mm 1990 19 Mast extended height mm 4000 20 Chassis Tire Front 7.00-12-12PR 21 Rear 6.00-9-10PR 22 Wheelbase mm 1600 23 Tread width Front/Rear mm 970/970 24 Curb weight None-load kg 3800 25 Powertrain Battery Voltage/Capacity V/Ah 12/90 26 Engine Model XC490BPG 27 Rated power kw/r.p.m 37/2650 28 Rated torque Nm/r.p.m 148/2000 29 Cylinder amount 4 30 Bore×Stroke mm 90x100 31 Displacement 2.54 32 Fuel tank L 60 33 Transmission 1/1 automatic transmission 34 Working pressure MPa 17.5

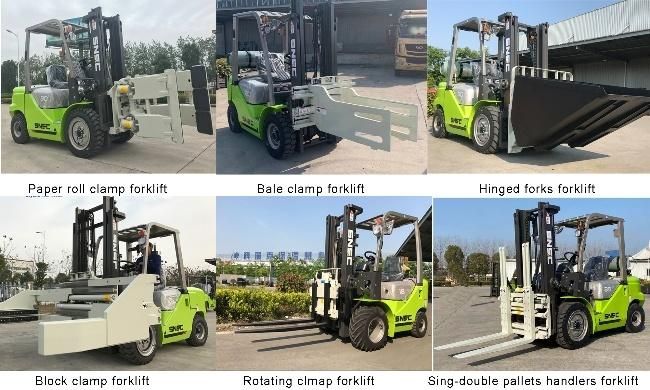

Attachment /Clamps /Accessories

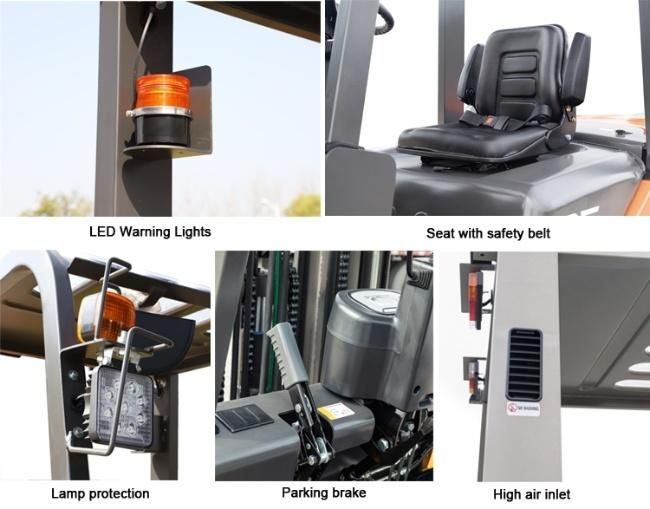

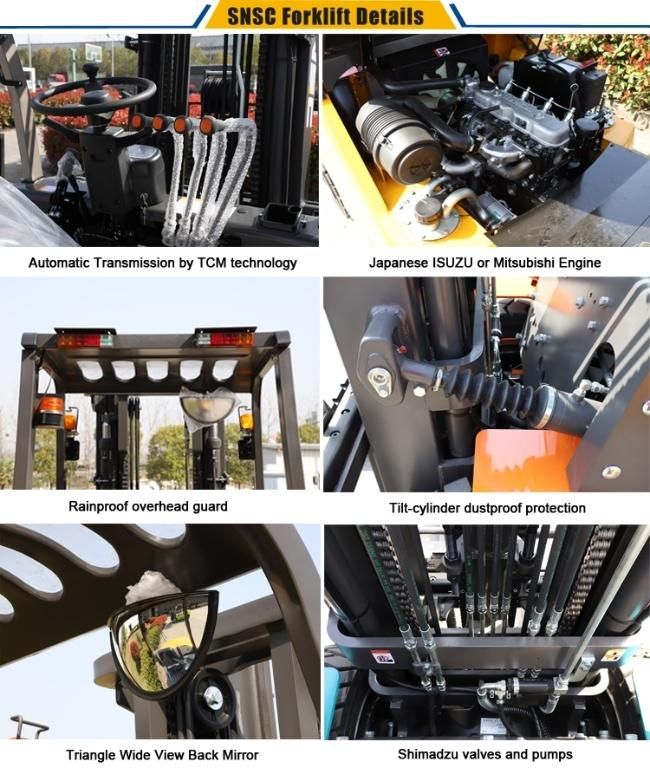

Detailed on SNSC Forklift

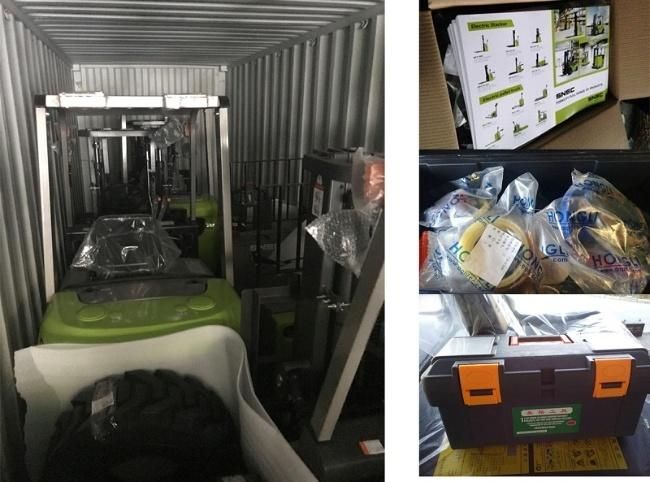

Package and Delivery of diesel forklift 2.5 ton FD25
Our 2.5ton DIESEL forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2.5tons diesel forklifts;
one 40'GP container can hold 6 units 2.5ton diesel engine forklift trucks.

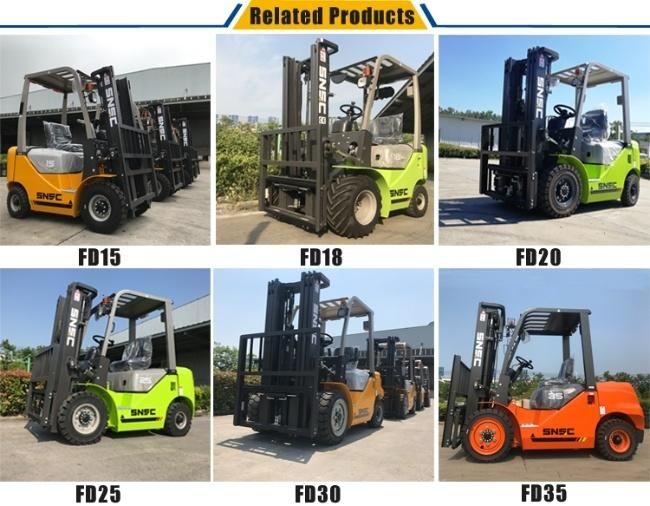

3Ton Forklift, 3.5 Ton Diesel Forklift, 4t Forklift, 5 Ton Diesel Forklift, 10ton Forklift Truck
China SNSC Forklift is a professional Forklift manufacture, has been in forklift industry for 10 years.

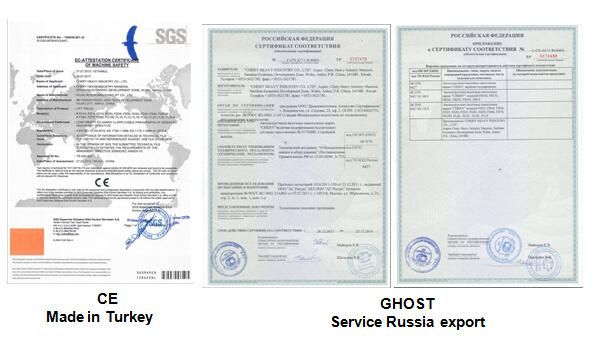

Certifications of 2.5t Chariot Elevateur

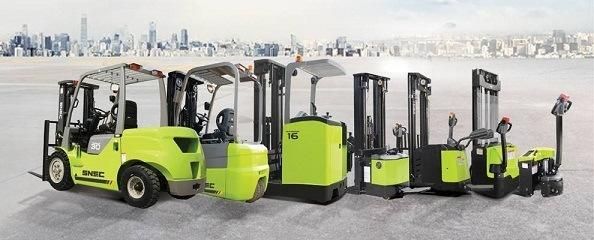

SNSC FORKLIFT Product Range:

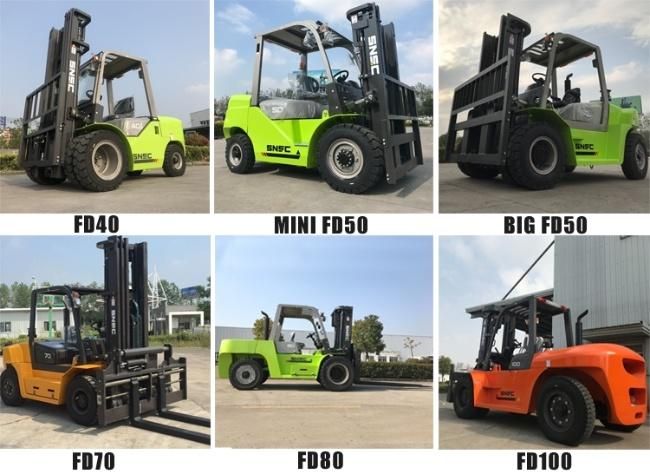

1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. Warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
