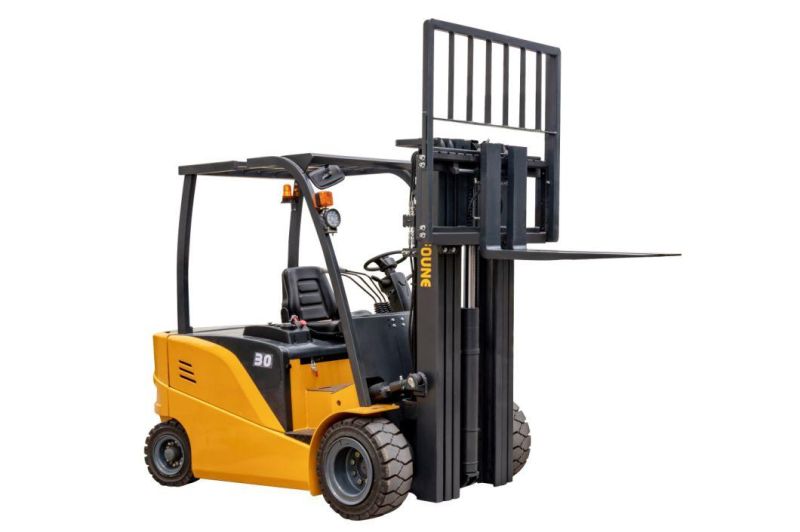

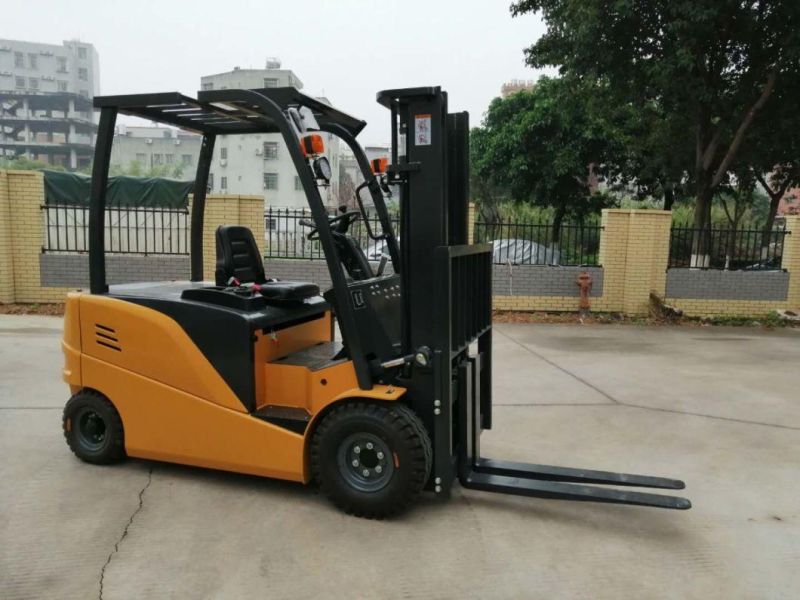

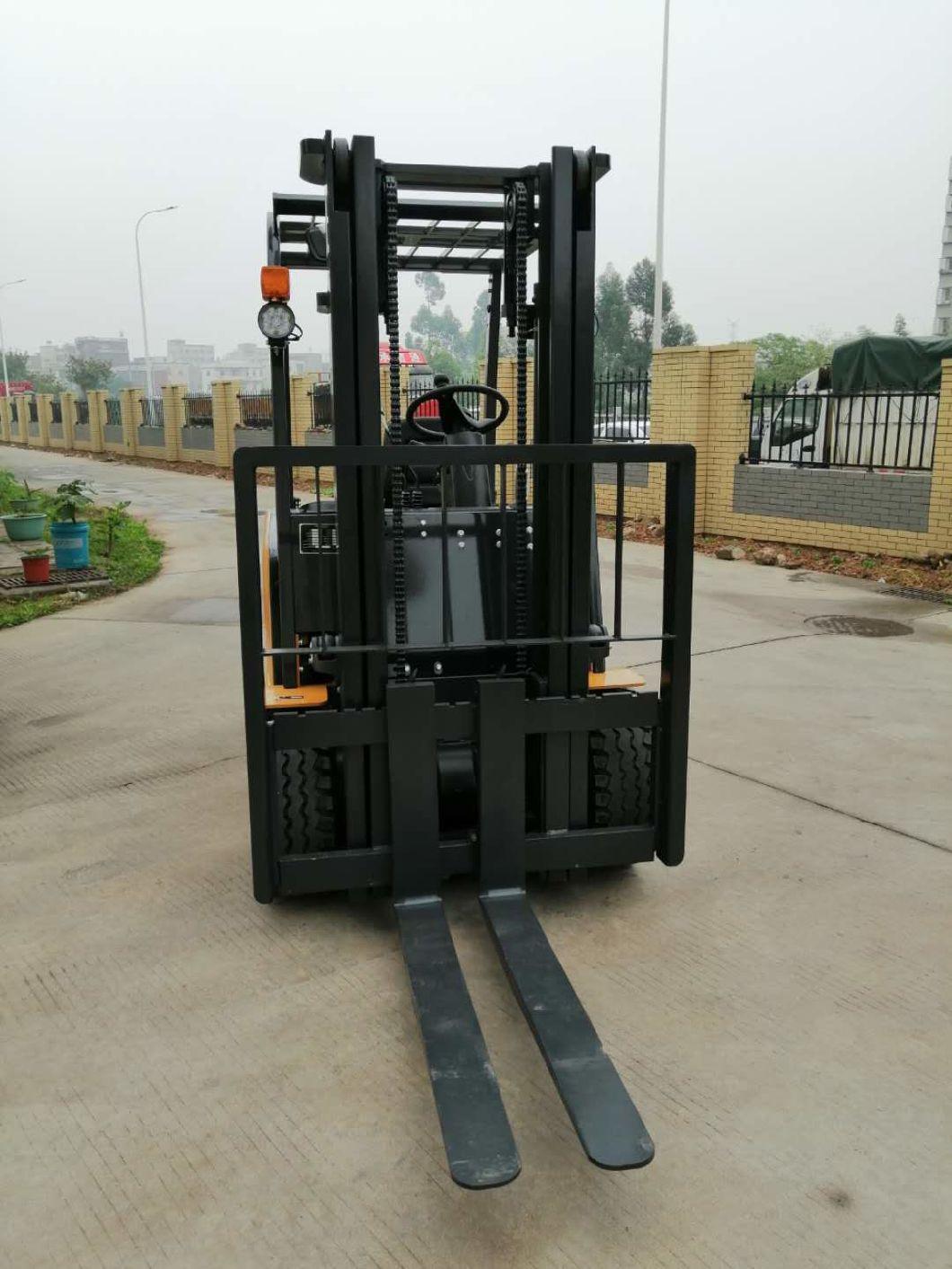

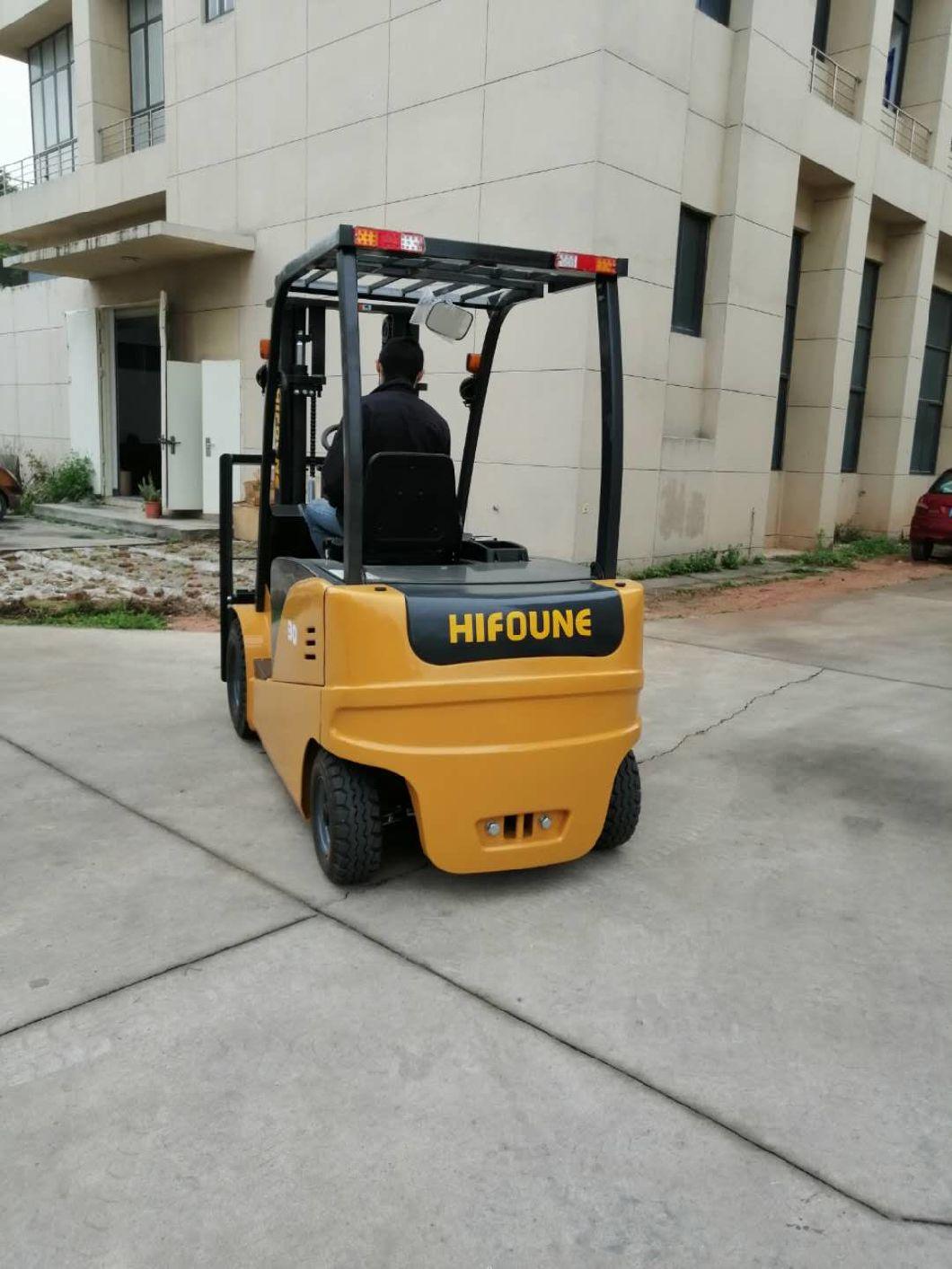

• Model NO.：FG30
• Fuel：Electric
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Weight：4370kg
• Rated Capacity：3000kg
• Fork Size：1070X125X45mm
• Transmission Box Type：Automatic Transmission
• Tire Type：Pneumatic Tire
• Transmission：Hydraulic
• Optional：Attachment,Side Shifter, Sealed Cab, Mast, etc
• Mast：Duplex Mast (Triplex Mast Optional)
• Color：Customized
• Certification：CE,ISO
• Transport Package：Container
• Specification：3620x1160x2130mm(LXWXH)
• Trademark：Hifoune
• Origin：Cn
• HS Code：8427109000
• Production Capacity：4500sets,Year

Basic Info.

Model NO. FG30 Fuel Electric Load center 500mm Lift height >5000mm Condition New Weight 4370kg Rated Capacity 3000kg Fork Size 1070X125X45mm Transmission Box Type Automatic Transmission Tire Type Pneumatic Tire Transmission Hydraulic Optional Attachment,Side Shifter, Sealed Cab, Mast, etc Mast Duplex Mast (Triplex Mast Optional) Color Customized Certification CE/ISO Transport Package Container Specification 3620x1160x2130mm(LXWXH) Trademark Hifoune Origin Cn HS Code 8427109000 Production Capacity 4500sets/Year

Product Description

Feature:
Adopt gradeability improving style electronic hydraulic transmission, compare with other models: efficiency 5% improved, climbing torque 8% increased, noise 3~5dB reduced, thermal equilibrium temperature 8-10decreased.

Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.

Introducing advances technology from Germany, the unique single chain has greatly enhanced he front view while working.

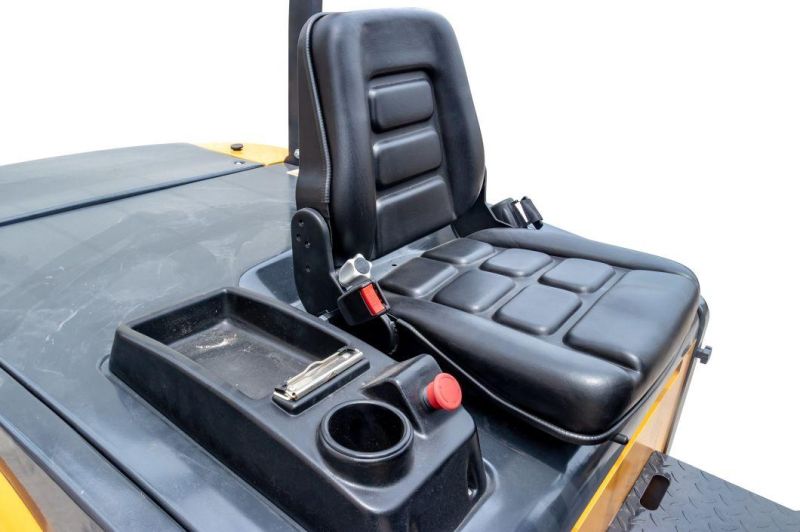

The new suspension system, adjustable seat, allowing the driver to feel more comfortable and reducing fatigue during long operations.




Specification

Model	UNIT	FB30

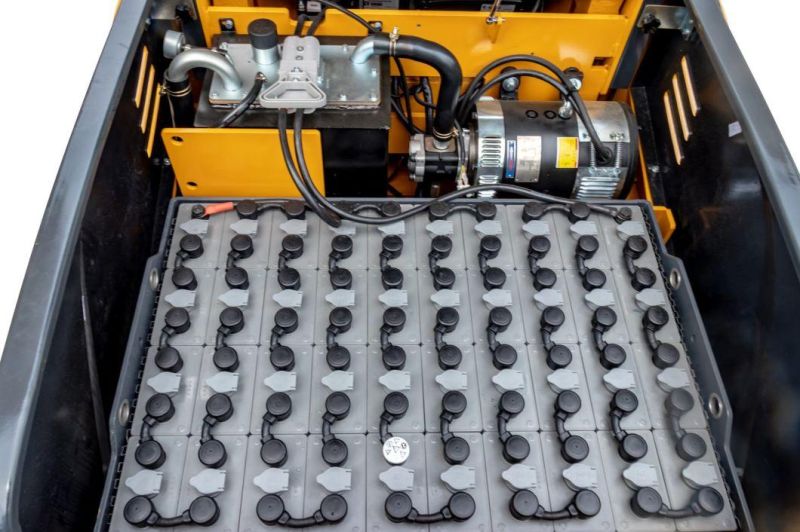

Power Unit		Battery
Operator Type		Seated
Rated Capacity	kg	3000
Load Center	mm	500
Truck Weight(with battery )	kg	4370
Front suspension distance	mm	433
Wheelbase	mm	1700
Mast Tilting Angle (Fwd/Bwd)	°	'6/10
Max. Lifting Height	mm	3000
Mast Height (Fork lowered)	mm	2110
Full free lifting height	mm	145
Height of mast open	mm	4256
Overhead Guard Height	mm	2130
Over length with forks	mm	3620
Over width	mm	1160
Fork Size (LxWxT)	mm	1070/125/45
Fork spread	mm	250-1050
Ground clearance	mm	100
Turning Radius	mm	2300
AST(Pallet 1000x1200)	mm	3920

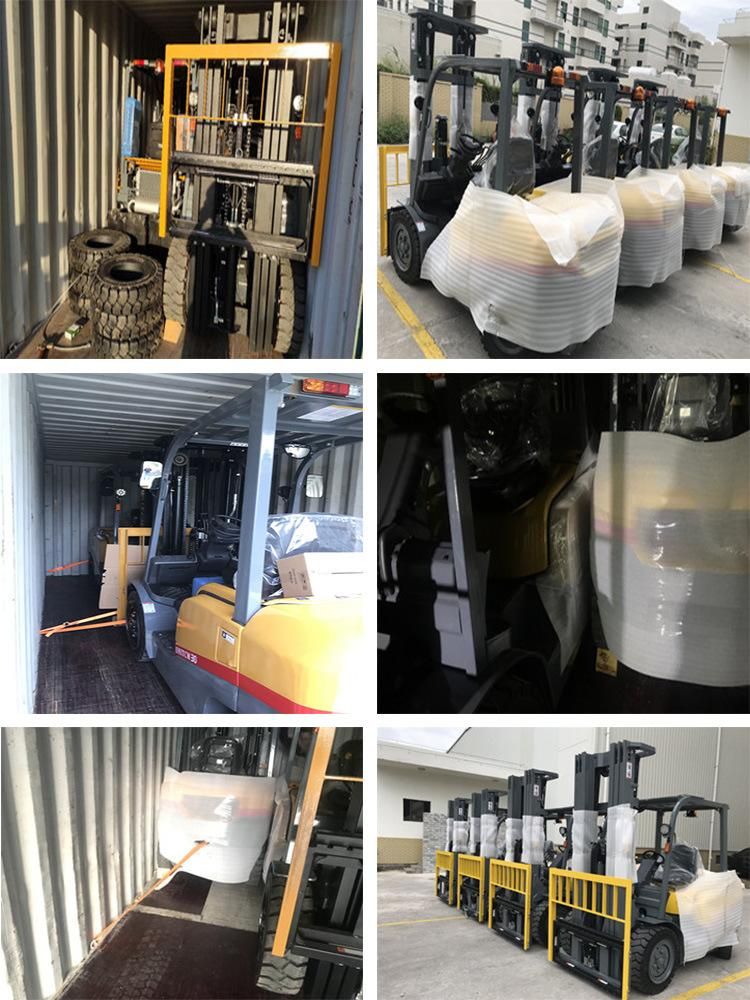

Shipping & Packing

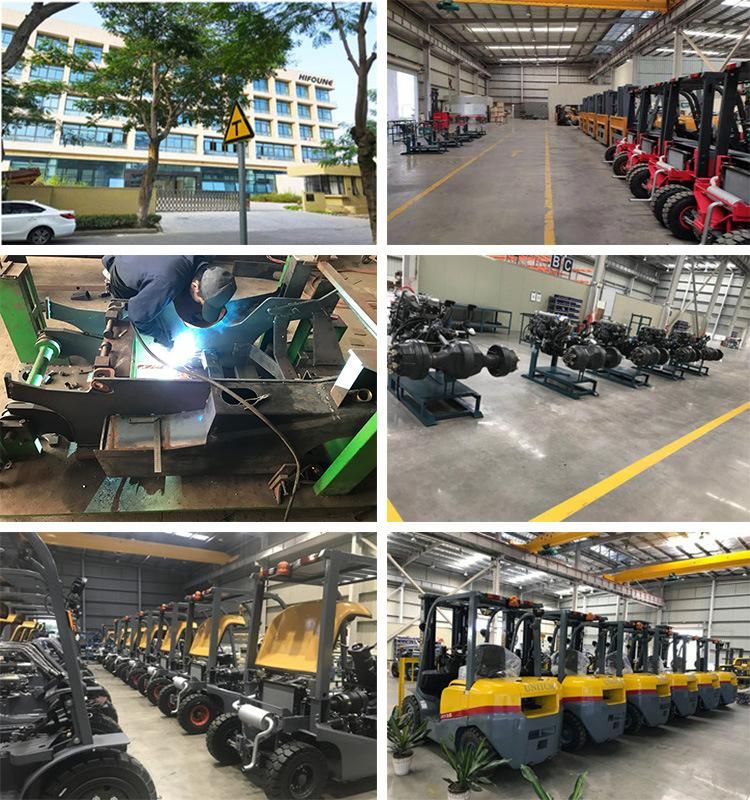

About us
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
