• Model NO.：ICE352
• Fuel：Electric
• Load center：500mm
• Lift height：3000-6000mm
• Condition：New
• Operator Type：Seated
• Service Weight：4560kg
• Tyre Type：Pneumatic
• Turning Radius：2600mm
• Height,Mast Lowered：2060mm
• Travel Speed：11,12 Km,H
• Lifting Speed：0.25,0.35 M,S
• Service Brake：Hydraulic+ Mechanical
• Battery Voltage：80V,205ah
• Certification：CE
• Drive Motor：10kw
• Lift Motor：12kw
• Max. Gradeability, Laden/Unladen：15,15
• Type of Drive Unit：AC
• Free Lift Load Backrest)：150mm
• Transport Package：Standard Export Packing
• Specification：2870mm*1230mm*2190mm
• Trademark：iMOW
• Origin：China
• HS Code：8427109000
• Production Capacity：4000

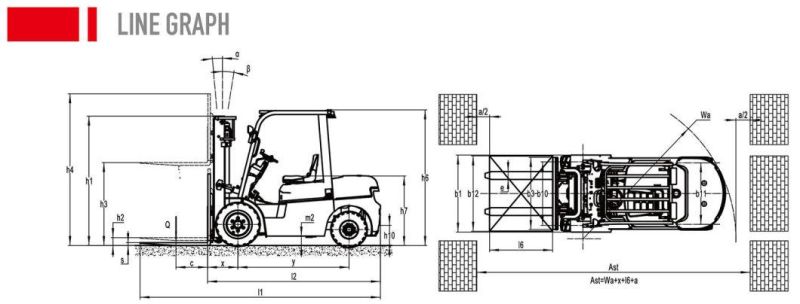

distinguishing mark  Manufacturer  EPModel designation  ICE351Drive unit                                            ElectricsOperator type  Seatedrated capacityQ t3Load center distancec mm500Load distance,centre of drive axle to forkx mm481Wheelbasey mm1810Weight  Service weight (include battery) kg4560Axle loading, laden driving wheels /steering wheels kg7100/960Axle loading, unladen  driving wheels /steering wheels kg1670/2890 Types,Chassis  Tyre type,driving wheels /steering wheels  PneumaticTyre size, driving wheels  28X9-15-14PRTyre size, steering wheels  6.50-10-10PRWheels, number driving/steering (x=drive wheels) mm2x/ 2Tread, Driving wheelsb₁₀mm1010Tread, Steering wheelsb₁₁mm980Dimensions  Tilt of mast/fork carriage forward/backwardα/ β (°) 6/ 10Height, mast loweredh₁mm2070Free lift (load backrest)h₂mm150Lift heighth₃mm3000Height, mast extendedh₄mm4110Height of overhead guard (cabin)h₆mm2190Seat heighth₇mm1130Tow center of pin heighth₁₀mm320Overall lengthl₁mm3940Length to face of forksl₂mm2870Overall widthb₁/ b₂mm1230Fork dimensionss/ e/ l mm50×125×1070Fork carriage class/type A, B  3AFork carriage widthb₃mm1150Ground clearance, laden, below mastm₁mm120The minimum ground clearance of framem₂mm150Aisle width for pallets 1000 × 1200 crosswaysAst mm4326Aisle width for pallets 800 × 1200 lengthwaysAst mm4526Turning radiusWa mm2645Performance data  Travel speed, laden/ unladen km/ h11/12Lifting speed, laden/ unladen m/ s0.26/0.34Lowering speed, laden/ unladen m/ s0.4/0.43Max. gradeability, laden/unladen %15/15Service brake type  Hydraulic/Mechanicspark brake type  Mechanical,Electric-engine  Drive motor rating S2 60 min kW10Lift motor rating at S3 15% kW12The maximum allowed size battery mm705X 565X266Battery voltage/nominal capacity K5 V/ Ah80V205AHBattery weight kg Addition data  Type of drive unit  ACSteering type  HrdraulicSound pressure level at the driver's ear dB (A)<74




More details:


FAQ:
1. How many charging times for the lithium battery?
The battery capacity is 80V/205Ah, and the charger is 65Ah, so the charging time is around 3
hours.
2. What is the cost of replace new set of lithium-ion battery if life span out?
As for the cost problem, you can contact your sales representative, And now we have special
promotion for ICE351, you can get 3 units and an extra 80V/205Ah li-ion battery for free.
3. How long the working hour?
The working hour depends on the actual working condition, normally we say it can work for 4-5
hours.
4. How fast charging?
Our self-developed Li-ion battery can do opportunity charging and it can be charged up to 20% in
28 Minutes for normal usage.
5. Charging port has auto stop when charged fully?
Yes
6. The control drive can change to Curtis controller?
No, we use Zapi controller as standard
7. Will forklift getting very difficult to lift up 3.5T (or cannot lift up at all) when battery is low
like 20%?
Yes, it will. But we suggest you should do opportunity charging and the battery can be charged up
to 7% in 10 minutes.
8. How much runtime will I get from a lithium-ion battery?
The working hour of a lithium-ion battery depends on your actual working condition. Normally
our battery can used more than 6 years. And we have a 5-year warranty for all our self-developed
li-ion batteries.
9. How is the cycle lift of the Lithium-ion.
2000 cycle life
10. The ICE351 suitable for use 24/7 operation? And need how many set Lithium-ion to
standby?
ICE351 is not designed for 24/7 operation, unfortunately. If you have such a long-hour demend
and would like to have a back-up battery on hand, we are happy to provide you with a FREE
80V/205 Ah li-ion battery if you order three units or more.
11. What effect does temperature have on using / charging lithium batteries?
Ambient temperature for use: -20°C ~ 45°C
The normal charging temperature range of the battery is: 0° C~45° C.
