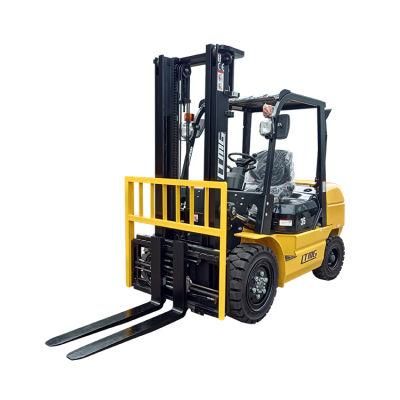

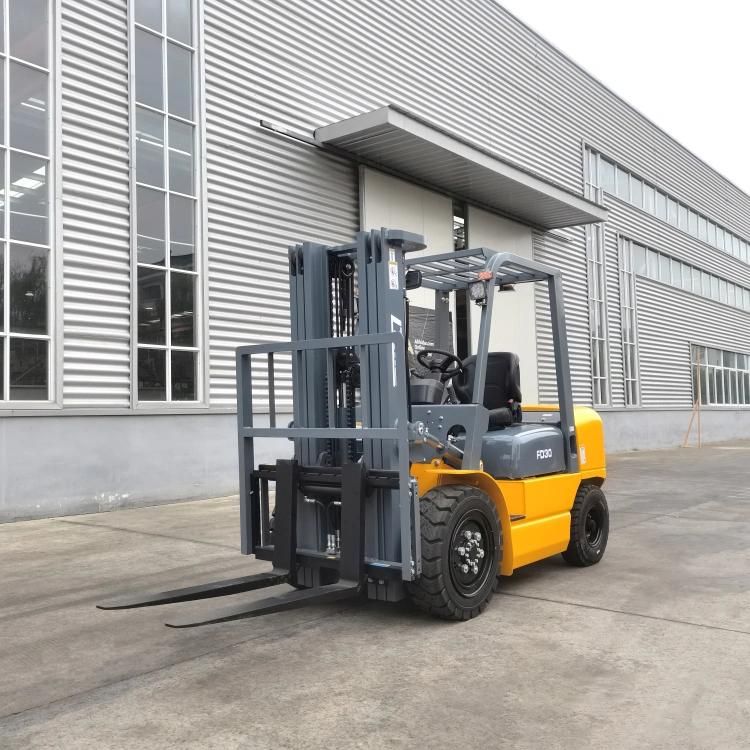

Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height

XIAMEN LTMG CO., LTD.
  • After-sales Service：Provide
  • Warranty：Provide
  • Cab Location：Not Adjustable
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：FD30
  • Fuel：Diesel
  • Load center：500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Fork Size：1070mm*125mm*45mm
  • Weight：4380kg
  • Engine：Isuzu
  • Wheelbase：1700mm
  • Optional：Side Shift, Solid Tyres, Three Stage Mast
  • Max. Lifting Height ：3000mm
  • Rated Power：34.3kw,2500rpm
  • Tire Type：Pnumatic
  • Turning Radius(Outside)：2445mm
  • Truck Weight：4380kg
  • Transport Package：Container
  • Specification：2705mm*1225mm*2140mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：1000sets,Year

Description

SpeedMax Travelling full/no loadKm/h18/19.5Lifting full/no loadmm/s450/500Lowering full/no loadmm/s450/450Max. Drawbar pullFull/no loadKg1550/1000Gradeability at 1.6km/hFull load%25Truck weight  Kg4290Weight distributionFull load front/rearKg6420/870No load front/rearKg1680/2610TiresNumberFront/rear2/2ModelFront axle28X9-15-12PRRear axle6.50-10-10PRWheelbase  mm1700TreadFront/rearmm1000/970Ground clearenceAt lowest point(mast)mm120Framemm135BrakeService brake  Hydraulic-foot pedaParking brake  Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel  ISUZU C240Rated powerKw/rpm52/2500Rated torqueN-m/rpm15.7/1800Number of cylinders  4Fuel tank capacity  L70TransmissionShift stage(front/rear-type)  1-1 power shift T/MOperating pressureHydraulic system pressureKg/cm²180 Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height

Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height
Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height
Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting HeightLtmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height
Product Features

Standard Configuration

1.Rational designed ,compact structure .excellent driver visibility .easy operating ,improve work efficiency .
2.Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.
3.Continuous 360 rotation ,any angle position of lock function revolving positing 90°or 180°
4.Hydraulic retention or cylinder valve is to ensure reliable lamping of long distance transportation .

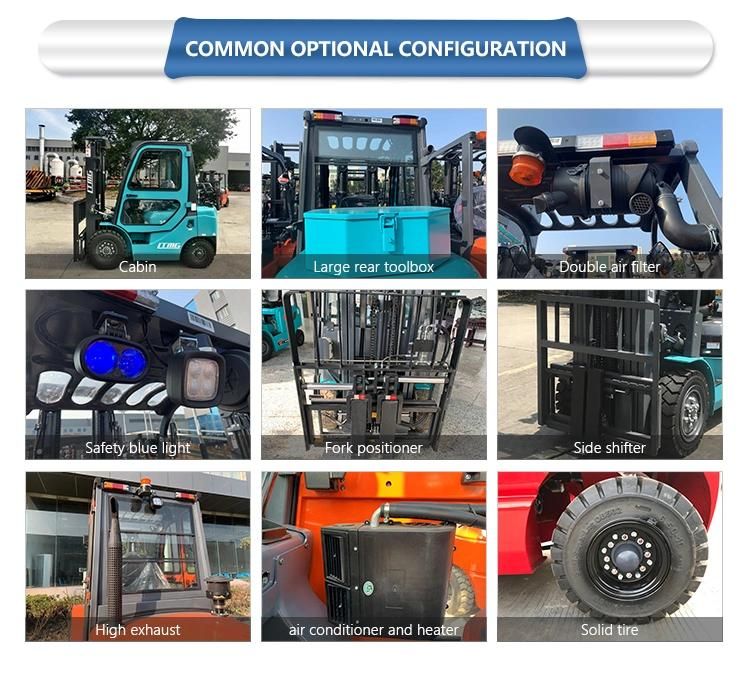

Optional Equipments

1. Custom opening ranges
2. Positioned short arm or fixed short arm
3. Split long arm
4. Special pads

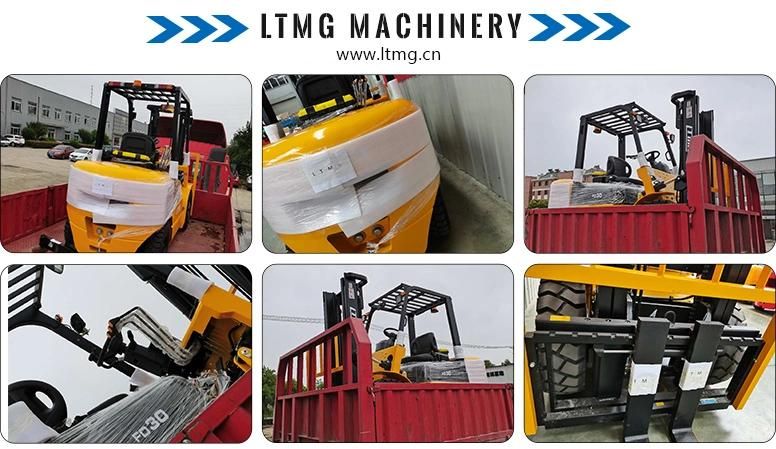

Packiging&shipping

Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height


Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height
Ltmg Fork Lift 3 Ton Minimanual Diesel Forklift with 3m Lifting Height

After sales service

LTMG always treat after-sale service as important as sale. Nowadays 16 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
