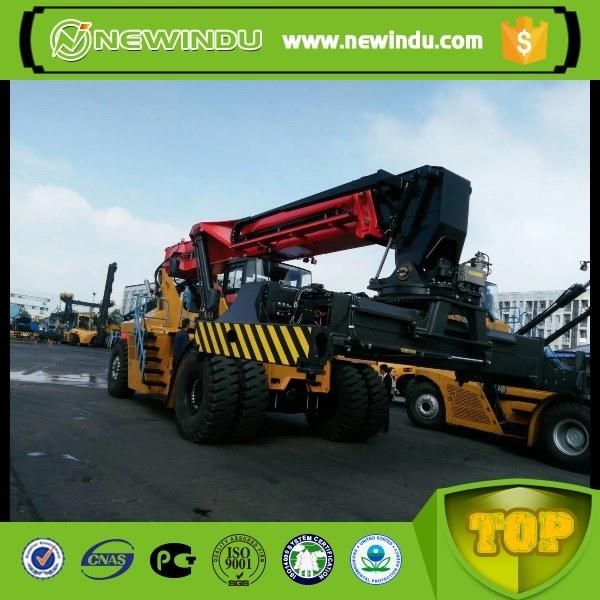

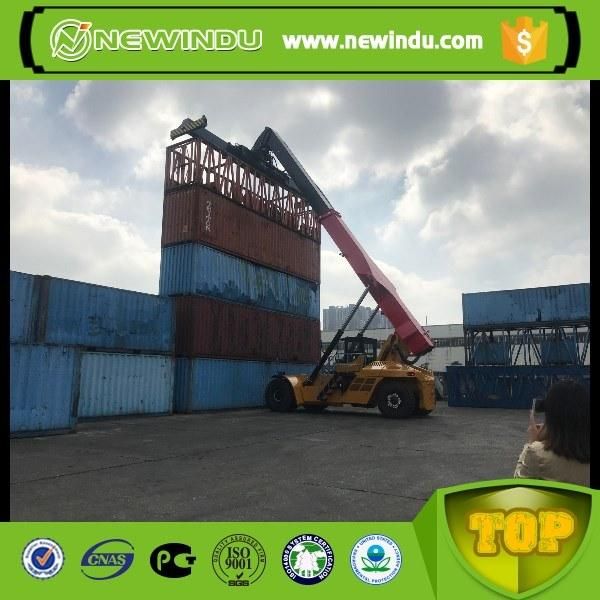

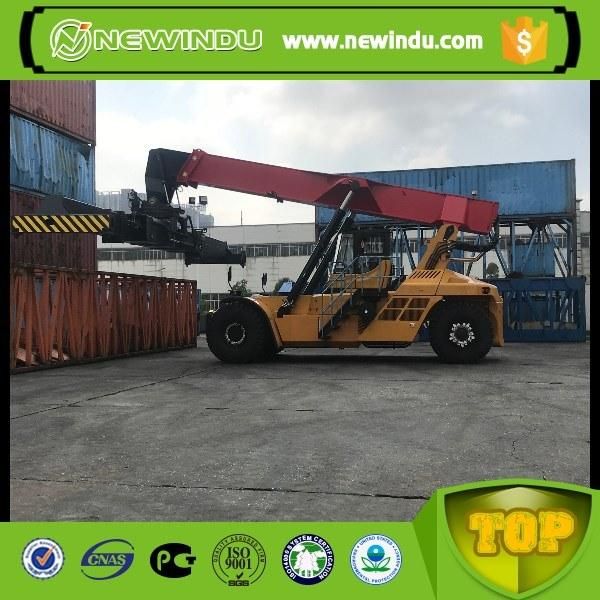

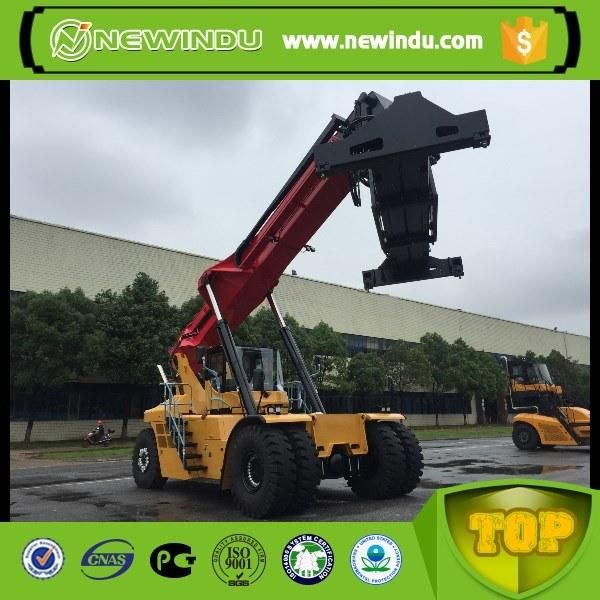

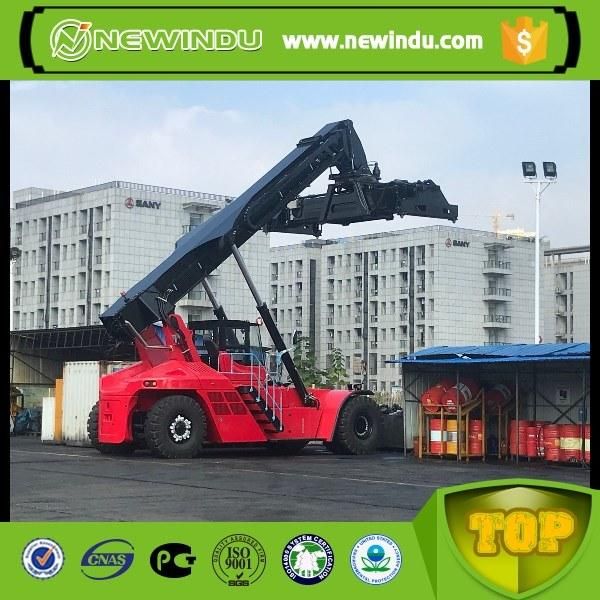

China Used 45ton Container Reach Stacker for Sale
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Spare Parts Available
- Warranty：One Year
- Cab Location：Not Adjustable
- Type：Container Forklift
- Power：Diesel Engine
- Load Capacity：＞42T
Base Info
- Model NO.：SRSC45H1
- Fuel：Diesel
- Load center：>500mm
- Lift height：>5000mm
- Condition：New
- Engine：Tad1151
- Max. Loading Height：15100mm
- Spreader：Sdj450f
- Application：ISO20′,40′,45′ Containers
- Transport Package：Nude Packing
- Specification：11340x(6053-12185)x4770mm
- Trademark：S any
- Origin：China
- HS Code：87051091
- Production Capacity：20units, Month
Description
Configuration
Engine manufacturer
TAD 1151
Rated power
265/2100kW/rpm
Max.torque
1780/1260Nm/rpm
Emission standard
Tier III
Transmission
15.5HR36000
Drive axle
D102PL341
Tire
18.00-25 40PR
Boom
Max.lifting height
15100mm
Boom tilt angle
0°-60°
Performance
Max.lifting speed (non-load/load)
420/250mm/s
Max.lowering speed (non-load/load)
360/300mm/s
Max.travel speed (non-load/load)
25/21km/h
Gradeability (non-load/load)
39/32%
Hydraulic system work pressure
260bar
Overall weight
72t
Max.load
45t
Stacking height
5(9'6"/8'6")
Overall length
11340mm
Wheel base
6000mm
Overall height
4770mm
Min.ground clearance
350mm
Overall width
6053-12185mm
Front wheel width
3033mm
Rear wheel width
2790mm
Min.turning radius
8000mm
20"container aisle width
11300mm
40"container aisle width
13600mm
We also have other brand like HELI, ZPMC all models of port equipment like forklift, reach stacker, empty container handler, ship-to shore container crane, port tyre crane....just tell me your requirements, and we will find a suitable model to you.

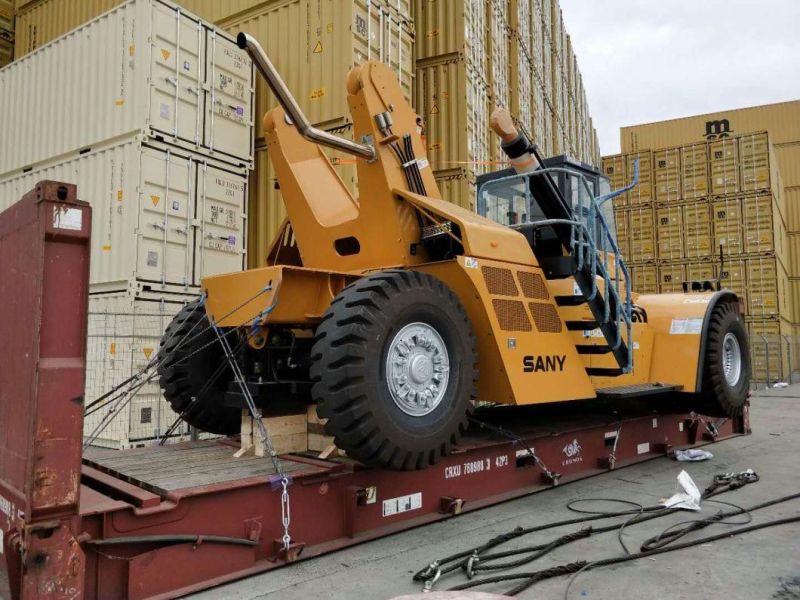

Photos of Shipment
