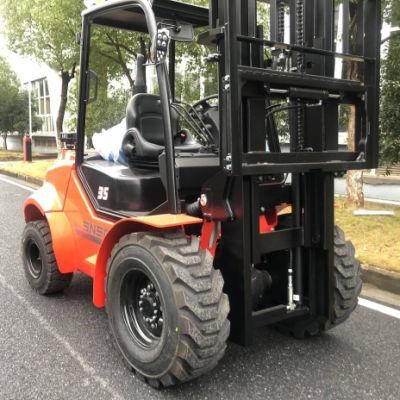

• Model NO.：FD35
• Lift height：3000~5000mm
• Condition：New
• Free Lifting Height：135mm
• Fork Size：1070*125*45mm
• Mast Tilt Angle：6,12 Degree
• Min. Ground Clearance：110mm
• Overhead Guard Height：2130mm
• Front Overhang：483mm
• Height From Seat to Overhead Guard：1000mm
• Transport Package：Nude Package
• Trademark：SNSC
• Origin：China
• HS Code：84270290
• Production Capacity：100 Sets Per Month

SpecificationsUnitFD35FeaturesPower type  DieselRated load kg3500Load center mm500Lifting height mm3000Free lifting height mm160Fork size L*W*Tmm1070*125*50Mast tilt angleFront/RearPerformanceMax. travelling speedloadedkm/h20Max. lifting speedloaded/emptymm/s470/520Max. traction forceloadedKN18Max. climbing ability %20DimensionOverall lengthwithout forkmm2746Overall width mm1230Mast lowered height mm2090Mast extended height mm4256ChassisTyreFront 28x9-15-12PRRear 6.50-10-10PRWheel base mm1700Wheel threadFront/Rearmm1000/970Weight(without load) kg4850PowertrainBattery V/AH12/90EngineModel XC490BPGRated powerkm/r.p.m42/2650Rated torqueNm/r.p.m174/2000No. cylinder 4Bore x strokemm95X105Displacement L2.98Fuel tank capacity L70Transmission/shift  1/1 automatic transmissionOperation pressure Mpa17.5Container Package Method:
3-3.5 ton diesel forklift package:20GP container can hold 2 units,40GP container can hold 4 units.

Spare Parts With Delivery:
To guarantee every diesel forklift customer has a good forklift using feeling and longer using life, we send some spare parts for free with every forklift delivery, eg: filters, seal and related

In future, if customers need any spare parts, we will give reflection within 24hours, so please be relax, we will never leave our customers in anxious situation, especially spare parts.

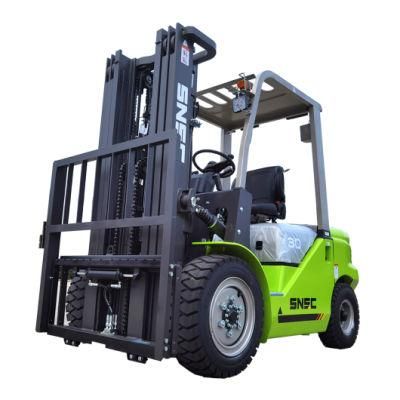

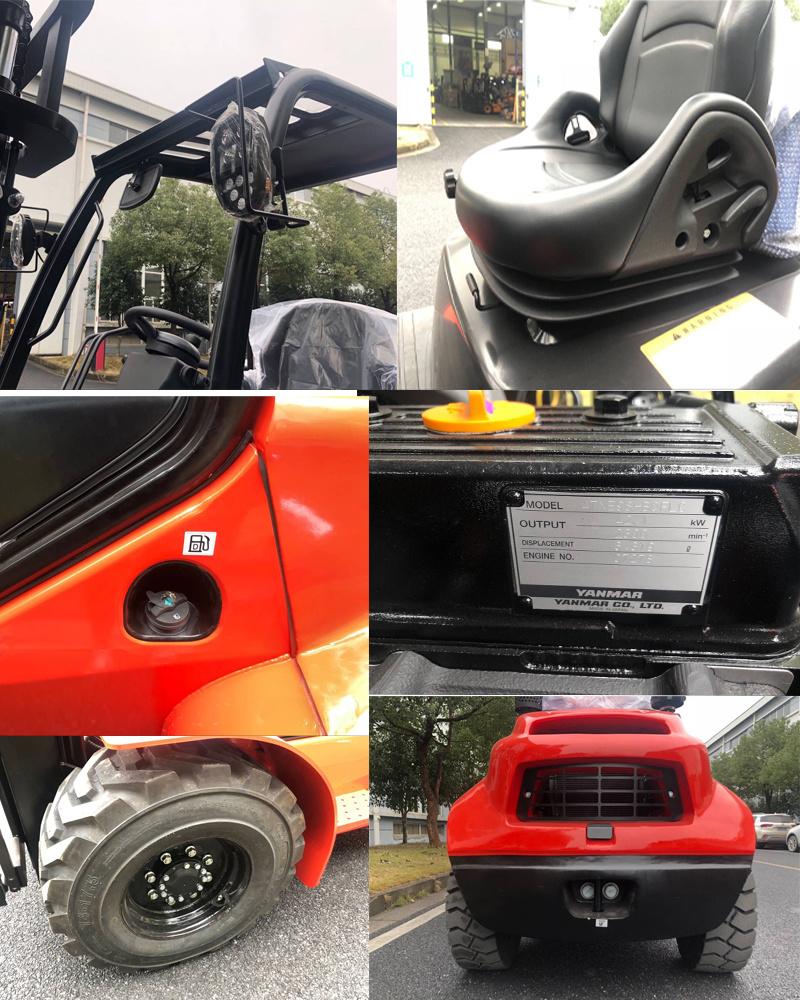

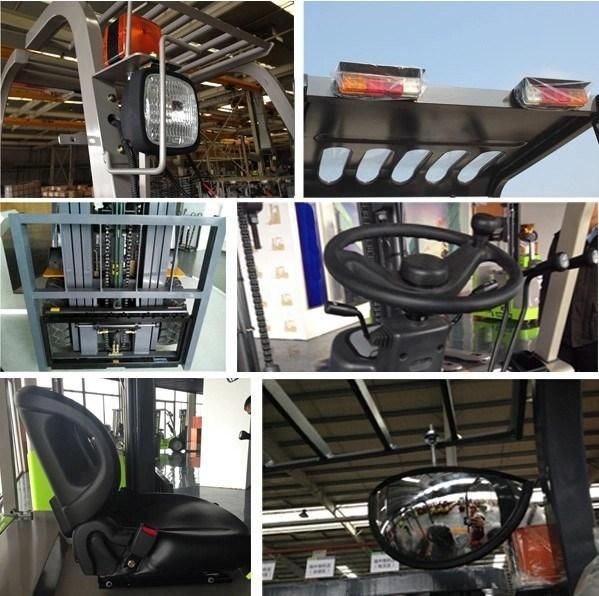

Details of 3.5Ton Diesel Forklift FD35


3.5Ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

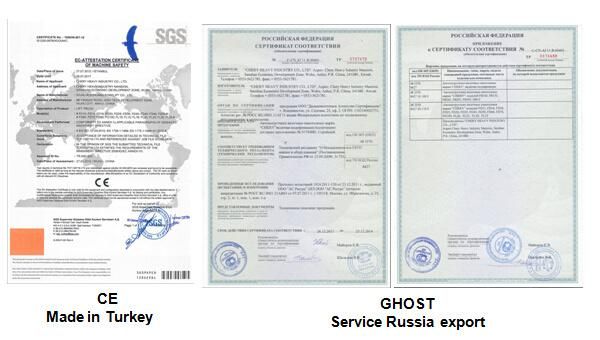

CE Configuration:

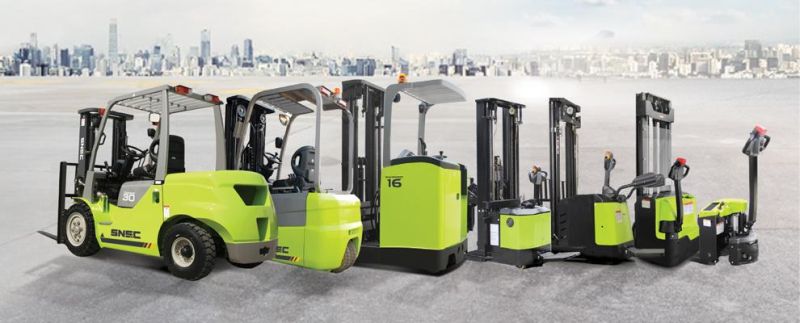

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
