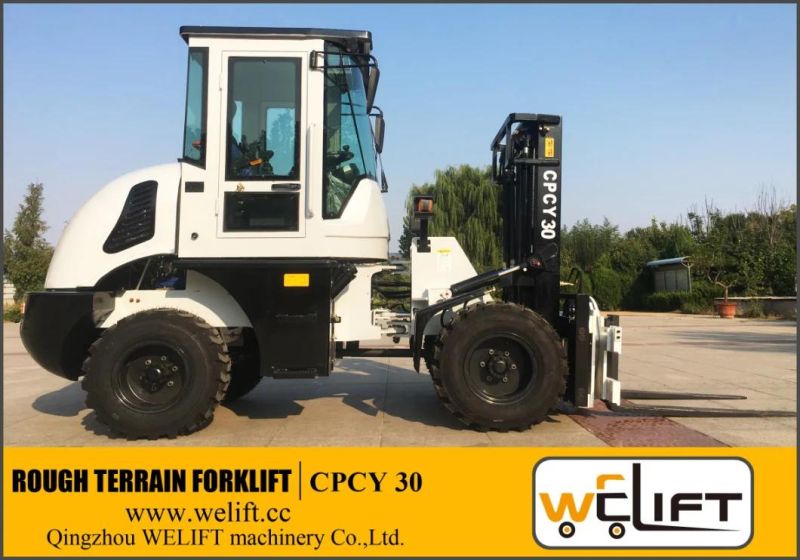

• Model NO.：CPCY30
• Lift height：3000~5000mm
• Condition：New
• Certification：Ce
• Optional Engine：Yanmar
• Dead Weight：4300kg

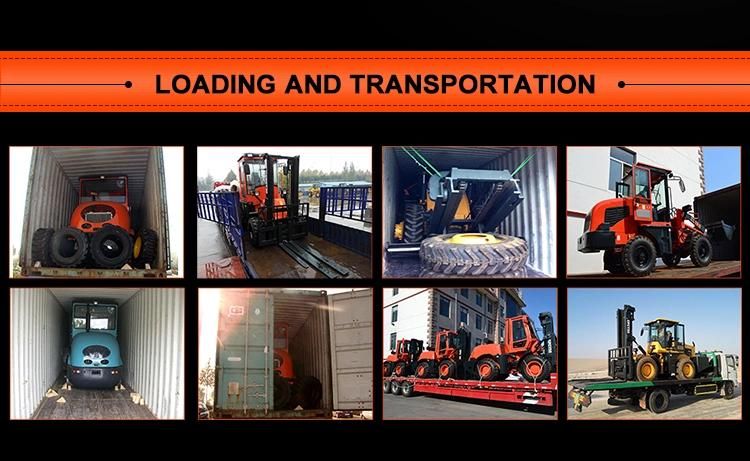

• Transport Package：40hq: 3units
• Specification：L*W*H mm 3700*1700*2750mm
• Trademark：WELIFT
• Origin：Mainland, China
• HS Code：84272090
• Production Capacity：2000 Sets ,One Year

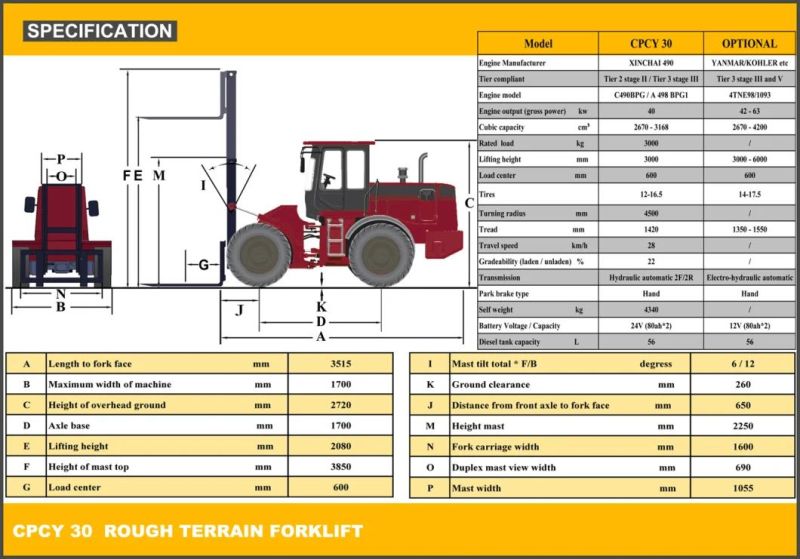

                                      Main Technical  Parameters of  CPCY30ItemParameterNoteRated load (KG)3000 Load center (mm)500 Lifting height (mm)3000-5000 Free lift height (mm)150 Mast tilt angle front/rear (°)6/12 Max lifting speed (full load) (mm/s)372 Running speed (km/h)Advance:I gear/II gear8/16 Backlash:I gear/II gear8/16 Max climbing gradient (%) (full load)50 Max traction (Kgf)2587 Max steering angle (°)±35 Swinging angle of rear axle (°)±12 Min turning radius (mm)4500 External dimensionsLength (mm)4585 Width (mm)1700 Height (mm)2720 Min ground clearance (mm)260 Weight (Kg)4350
