• Model NO.：FD18
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Max. Lifting Height：3000mm
• Fork Size：920mm*120mm*35mm
• Weight：2780kg
• Engine：Isuzu
• Wheelbase：1400mm
• Color：Customize
• Tire：Pneumatic
• Gound Clearance：110mm
• Operator Type：Driver,Seat
• Transport Package：Container
• Specification：2295mm*1086mm*2040mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer   LTMGModel   Power shift T/MFD18TLoad capacity  kg1800Load center  mm500Power unit    dieselOperator type   Driver/seatTire type  PneumaticWheelFront/rear 2/2Max. lifting height    mm3000Free lift  mm155Fork sizeL×W×Tmm920*120*35Tilt rangeMast forward/backwarddeg6/12Overall length(without fork)   mm2275Total width   mm1070Mast height ( fork lowering)  mm1995Overall height fork raised ( with backrest)  mm4030Height to head guard  mm2060Turning radius(outside)  mm2070Front face of fork to front axle  mm395Min. right angle stacking aisle  mm2465SpeedMax Travelling full load/no loadkm/h14/14.5Liftingfull load/no loadmm/s410/500Loweringfull load/no loadmm/s350/530Max.drawbar pull full/no loadKg1130/690Gradeability at 1.6km/h full/no load%18/16Truck weight  kg2780Weight
distributionfull loadfront /rearkg3950/560no loadfront /rearkg1070/1710front wheel   6.50-10-10PRrear  wheel   5.00-8-10PRWheelbase  mm1425Treadfrontmm890rearmm900Ground
clearanceAt lowest point(mast)mm115Framemm105BrakeService  brake Hydraulic-foot pedalParking brake Mechanical-hand leverBatteryVoltage/capacity 12/80EngineModel ISUZU C240Rated power kw/rpm34.3/2500Rated torque Nm/rpm138/1800Number of cylinders  4displacement L2.369Fuel tank capacity  L50TransmissionSpeed forward/backward  1-1 power shift T/MOperating pressureHydraulic system pressure Kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

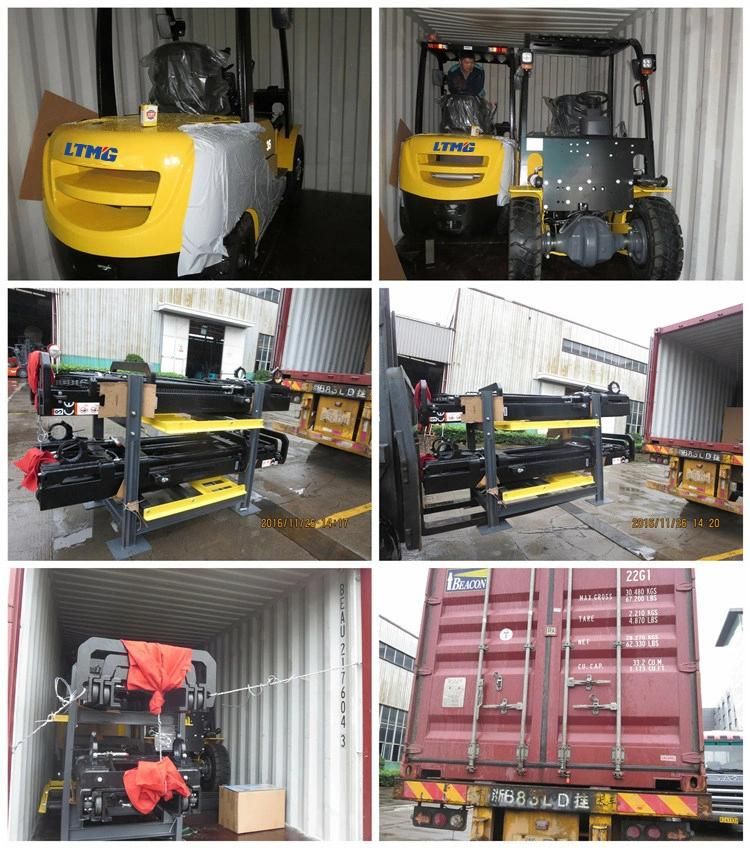

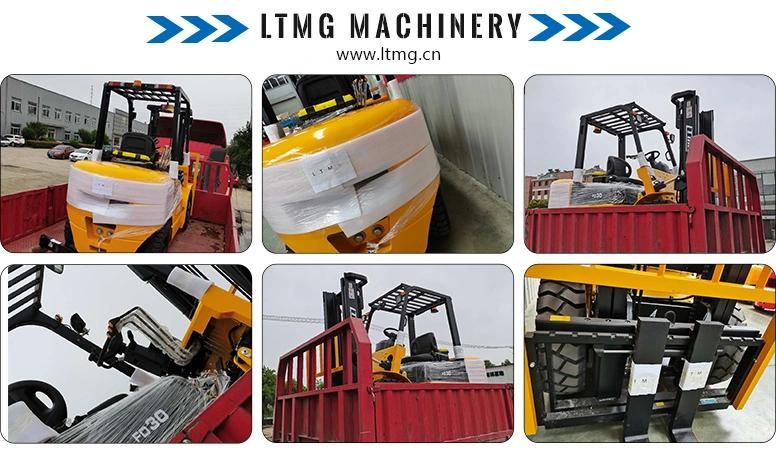

shipping&packaging



Certificates



Factory Show

LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors


Customers Show



After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.




Contact Me



FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
