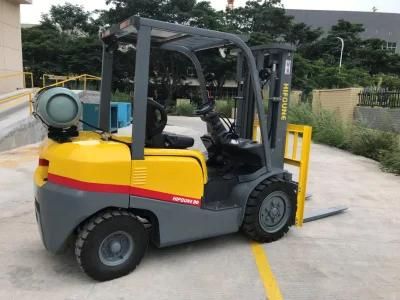

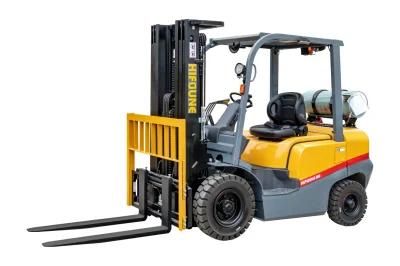

Hydraulic Transmisson 2000kg Counterbalanced Diesel Forklift Truck
Xiamen Hifoune Technology Co., Ltd.- Warranty：One Year or 2000hours
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
Base Info
- Model NO.：FD20T
- Load center：500mm
- Lift height：>5000mm
- Condition：New
- Engine：Xinchai,Isuzu,Mitsubish
- Weight：3440kg
- Rated Capacity：2000kg
- Fork Size：1220X122X40mm
- Transmission Box Type：Automatic Transmission
- Tire Type：Pneumatic Tire
- Transmission：Hydraulic
- Optional：Attachment, Side Shifter, Sealed Cab, Mast, etc
- Mast：Duplex Mast (Triplex Mast Optional)
- Color：Customized
- Certification：CE,ISO
- Transport Package：Container
- Specification：3640x1150x2125mm(LXWXH)
- Trademark：Hifoune
- Origin：Cn
- HS Code：8427109000
- Production Capacity：4500sets,Year
Description
ModelUNIT FD20T Specifications Power Unit Diesel Operator Type Driver/Seat Transimission Box Type Automatic Transimission Rated Capacity kg 2000 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type Pneumatic Tire Tire Number Front 2 Rear 2 Tire Size Front 7.00-12-12PR Rear 6.0-9-10PR Performance Lifting Speed Loaded mm/s 560 Unloaded 580 Lowering Speed Loaded mm/s 480 Unloaded 450 Travelling Speed Loaded km/h 20 Unloaded 21 Max.Gradeability (Loaded) % 20 Max.Drawbar Pull (Loaded) kn 14 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 140 Turning Radius mm 2150 Dimensions Overall Length (with fork) mm 3640 Overall Width mm 1150 Overhead Guard Height mm 2125 Fork Size (LxWxT) mm 1220×122×40 Mast Height (Fork lowered) mm 2090 Battery (Voltage/Capacity) V/Ah 12/90 Truck Weight kg 3440 Fuel Tank Capacity L 70 Engine Brand XINCHAI MITSUBISH ISUZU Model C490 S4S C240 Rated Power kw/rpm 40/2650 35.3/2250 35.4/2500 Rated torque n-m/rpm 160/1600-2000 169/1700 137.7/1800 Number Of Cylinder 4 4 4 Displacement 2.67 2.49 2.37
Shipping & Packing
About us

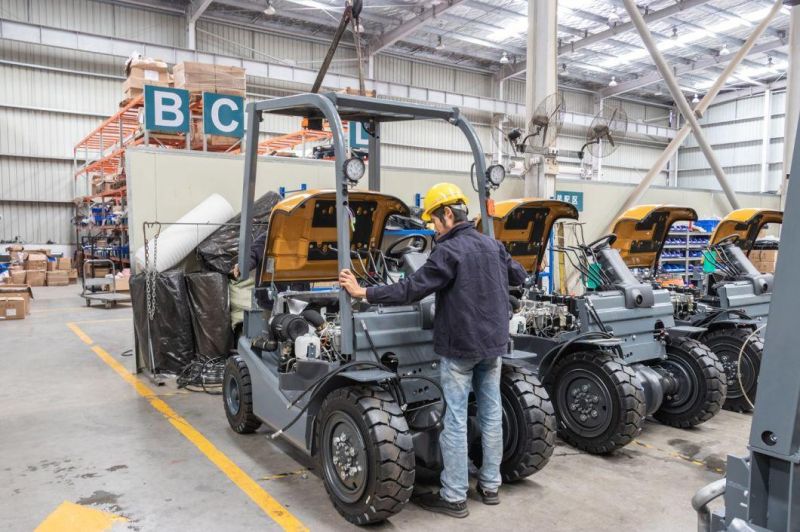

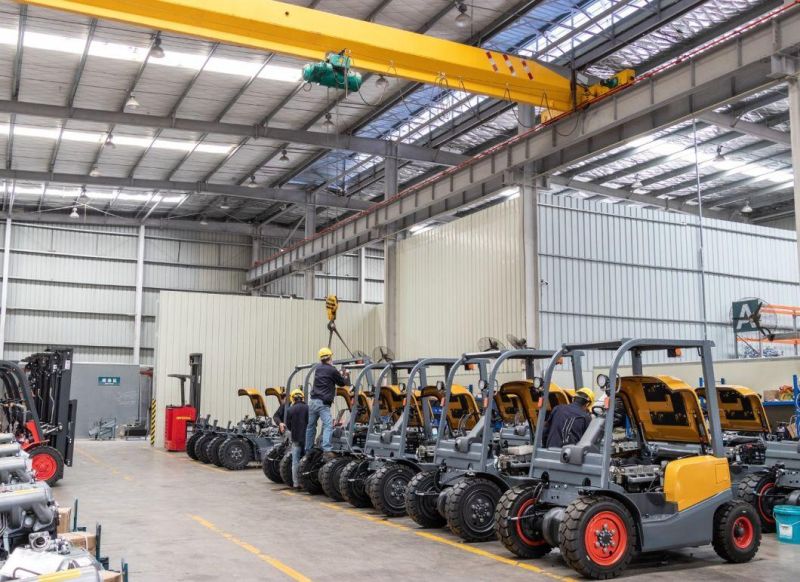

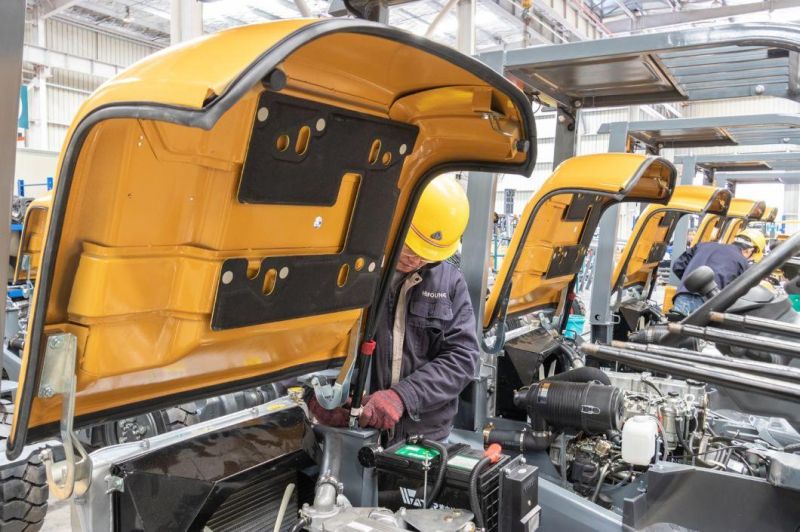

Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links
