New Forklift Product Forklifts Automatic Transmission 3 Ton 5 Ton 6 Ton 7 Ton Forklifts

Xiamen LTMG Machinery Co., Ltd.
  • Warranty：1 Year or 2000 Hours
  • Cab Location：Adjustable
  • Type：Powered Pallet Truck
  • Power：Diesel Engine
  • Load Capacity：7 T
  • Fuel：Diesel

Base Info

  • Model NO.：FD70
  • Load center：600mm
  • Lift height：3000~5000mm
  • Condition：New
  • Engine：Isuzu,Chaochai
  • Fork Size：1220mm*150mm*65mm
  • Weight：9450kg
  • Wheelbase：2250mm
  • Color：Decided by Buyer
  • Overall Length：3590mm
  • Max. Lifting Height：3000mm
  • Product Name：Best Forklift 7 Ton Forklift 8 Ton Forklift 7 Ton
  • Transport Package：Container
  • Specification：3590mm*1995mm*2500mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：84272090
  • Production Capacity：800sets,Year

Description

LTMGModel Power shift T/MFD70Load capacity kg7000Load center mm600Power unit  DieselOperator type  Driver/seatTire typeFront/rear PneumaticWheelFront/rear 4/2Max. lifting height mm3000Free lift mm210Fork sizeL*W*Tmm1220*150*65Tilt rangeMast forward/backwarddeg6/12Overall length mm3590Total width mm1995Mast height (fork lowering) mm2500Overall height fork raisedWith backrestmm4420Height to head guard mm2450Turning radius(outside) mm3360Front face of fork to front axle mm620Min. right angle stacking aislewithout load length& clearancemm5620SpeedMax Travelling   full/no loadkm/h26/30Lifting full/no loadmm/s450/550Lowering full/no loadmm/s450/500Max.drawbar pullfull/no loadkg5400/2200Gradeability at 1.6km/hfull load%29Max. Gradeabilityfull/no load%33/19Truck weight kg9450Weight  distributionFull load front/rearkg14520/1930No load front/rearkg3760/5690TiresNumberfront/rear4/2Modelfront axle8.25x15-14PRrear axle8.25x15-14PRWheelbase mm2250TreadFront/rearmm1470/1700At lowest point(mast)mm190Ground clearanceFramemm230BrakeService brake Brake boosterParking brake Mechanical-handBatteryVoltage/capacityV/AH2x12V-80AHEngineModel ISUZU 6BG1Chaochai 6102BGRated powerPS(kw/rpm)112/2000110/2500Rated torqueg-m max.(N.m)42.5/150036/1650Number of cylinders 66PlacementL6.4945.785Fuel tank capacityL140TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M2-2 power shift T/M
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

Optional engine

New Forklift Product Forklifts Automatic Transmission 3 Ton 5 Ton 6 Ton 7 Ton Forklifts

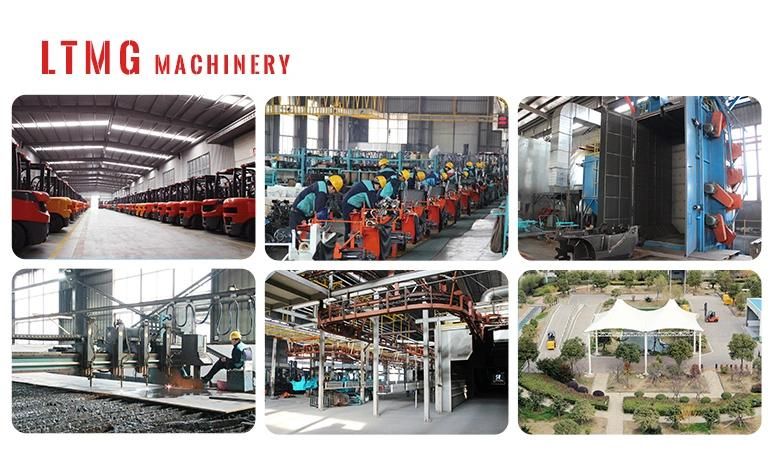

Our Factory
New Forklift Product Forklifts Automatic Transmission 3 Ton 5 Ton 6 Ton 7 Ton Forklifts


LTMG Customers
New Forklift Product Forklifts Automatic Transmission 3 Ton 5 Ton 6 Ton 7 Ton Forklifts



After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


New Forklift Product Forklifts Automatic Transmission 3 Ton 5 Ton 6 Ton 7 Ton Forklifts
New Forklift Product Forklifts Automatic Transmission 3 Ton 5 Ton 6 Ton 7 Ton Forklifts




FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
