• Condition：New
• Fork Size：1150mm180mm*60mm
• Item：Stacker
• Max. Lifting Height：3000mm
• Controller：Curtis
• Max.Lifting Height：3000mm
• Overall Length：1940mm,2360mm
• Battery Capacity：24ah
• Product Name：Ltmg 1.5 Ton Electric Pallet Stacker with 3-Stage
• Transport Package：Container
• Specification：1940mm*850mm*2000mm
• Trademark：LTMG
• Origin：China
• HS Code：8428109000
• Production Capacity：1000sets,Year

 Model ERB15 Type Narrow legsMast type 2-Stage STDLoad capacitykg1500 Load centermm600Wheel basemm1325Operating type  Walkie/Stand onWheel type PUWheel quantity driving wheel/
Balance wheel/Bearing wheel 1/2/4 Standard lift heightmm3000 Lowered fork heightmm85 Fork size(length/width/thickness)mm1150(1200)/180/60 Overall lengthmm1940/2360 Overall widthmm850Outside with between legsmm570/600/650/685 Inside with between legsmm180/230/280/315 Min.turning radiusmm1630/1990Min.aisle width for pallets 800×1200mm2180/2580Min.aisle width for pallets 1000×1200mm2210/2600Min.groud clearancemm30Travel speed,laden/unladenkm/h5/6 Lift speed,laden/unladenmm/s95/130 Travel speed,laden/unladenmm/s110/100radeability,laden/unladen%5/8 Battery voltageVAC1.5/DC3.0/DC0.15 Battery capacityAh24 Brake 240Controller CURTIS Battery weightkg235 Service weight with batterykg1190

Shipping&packging

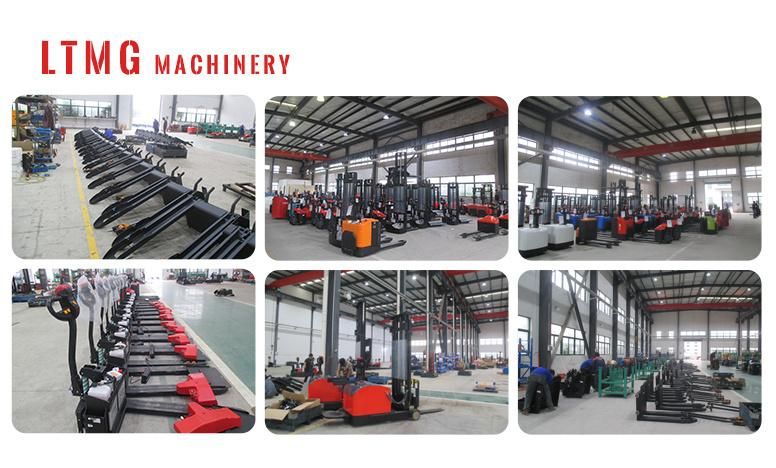

Our Customer and factory.





After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
