• Model NO.：CDD05Z
• Load center：500mm
• Lift height：800-1300mm
• Condition：New
• Color：Green or Customized
• Lifting Motor：DC,0.7kw
• Driving Type：Man Driving
• Fork Length：1250mm
• Battery：12,45 V,Ah
• Charger：Inclusive
• Brake Type：Mechanical
• Battery Type：Lead Acid Battery
• Transport Package：Packed with Bubble Film+Cardboard+Wooden Pallet
• Specification：dimension(LxWxH): 1600x786x1200mm
• Trademark：Noelift
• Origin：China
• HS Code：84271020
• Production Capacity：200units,Month

How to load goods? How to unload goods?
1. Press 1
lift up button1. Pull the machine out2.Put down goods on the  van2. Press 2
down press till the forks is against the ground,3. Lift Machine up3. Stacker's leg slide back4. Stacker's leg slide back4. Press 1 press, Descend the machine to the ground nearly5. Lift machine up5. Stacker's leg slide to the front6. Stacker's leg slide to the front 6. Descend the machine to the ground7. Lift up the goods  8. Push goods into van/truck





Manual Driving, Electrical Lifting4Capacity500Kg500Kg500Kg5Weight193Kg200Kg219Kg6Lift Height800mm1000mm1300mm7Height in Lowerd Position1200mm1400mm1600mm8Overall length1600mm1600mm1600mm9Overall width786mm786mm786mm10Fork Length1250mm1250mm1250mm11Fork Width540mm540mm540mm12Material of WheelsPolyurethanePolyurethanePolyurethane13Steering wheel size100x45100x45100x4514Loading wheel size70x6070x6070x6015Motor Power Lifting0.7kw0.7kw0.7kw16Battery12/45V/Ah12/45V/Ah12/45V/Ah17Charger Batteryinclusiveinclusiveinclusive18Brake TypeMechanicalMechanicalMechanical19Lifting speed80Mm/s80Mm/s80Mm/s20Descend speed90Mm/s90Mm/s90Mm/s21Turning radius1100Mm1200Mm1200Mm
PACKAGES & DELIVERY


Noelift forklifts under ISO9001:2008 and CE norms.

OUR CERTIFICATIONS

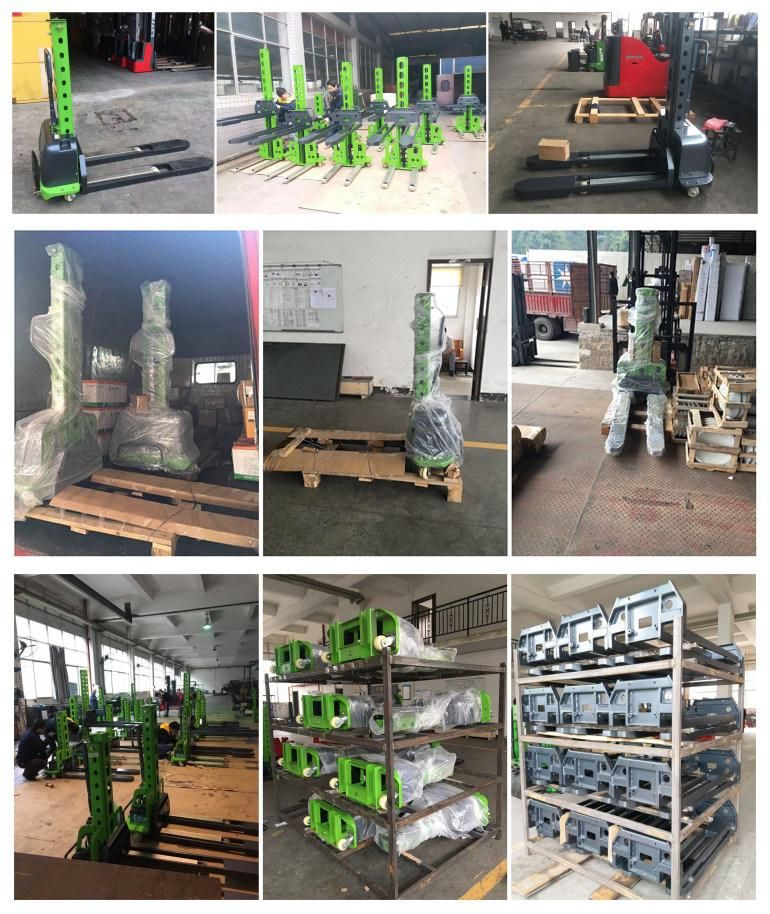

NOELIFT FACTORY

Noelift Forklift factory with years experiences, our forklifts already exported to Austria, Saudi, Arabia, USA, Malaysia, Peru so on.
as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1 to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.

Welcome to get best material handling equipment solutions from NOELIFT!
We are at your services!

Cooperations


FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q7. What about after-sales services?
A1: During Warranty, we will offer spare parts needed with free chrage withion one week by international expresses, such as TNT, DHL, UPS and Fedex so on.
2: Technical staff 24hours online supports.
3: Engineer overseas support available.
