• Model NO.：FD60Z FD50Z
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：6000kg
• Max. Lifting Height：3000mm
• Fre Lifting Height：208mm
• Forks(L*W*H)：1220*150*60mm
• Min.Turning Radius：3370mm
• Engine：Weichai,Shangchai,Cummins
• Transport Package：Container
• Specification：3431*2235*2500mm
• Trademark：Zoomlion
• Origin：China
• HS Code：842720900
• Production Capacity：100pieces,Month

SpecificationsunitFD50FD60FD70CharacteristicsPower dieseldieseldieselRated Capacitykg500060007000Center of loadmm600600600Lifting heightmm300030003000Free lifting heightmm203208218Forks L×W×Hmm1220×150×551220×150×601220×150×70Tilt Forward/Backward.6/126/126/12Min.turning radiusmm325033703370Min.ground clearance(Mast)mm200200200Overhead guard heightmm246024602460Height from seat to overhead guardmm105010501050Front overhangmm610615625PerfMax.traveling speed(loaded)km/h262626Max.lifting speed(loaded/empty)mm/s370/450370/450370/450Drawbar pull/GradeabilitykN/%51.4/2051.4/2051.4/20DimensionsOverall length (without fork)mm343134313466Overall widthmm223522352235Mast lowered height mm250025002500Mast extended heightmm441744174417ChassisTireFront 8.25-15-14PR8.25-15-14PR8.25-15-14PRRear 8.25-15-14PR8.25-15-14PR8.25-15-14PRWheelbasemm225022502250Tread widthFront/Rearmm1470/17001470/17001470/1700Curb weightNone-loadkg798086409340PowertrainBatteryVoltage/CapacityV/Ah(12/90)x2(12/90)x2(12/90)x2EngineModel CY6102BG6CY6102BG6CY6102BG6Rated powerkw/r.p.m81/250081/250081/2500Rated torqueNm/r.p.m353/1700353/1700353/1700Cylinder amount 666Bore×Stroke mm102×118102×118102×118Displacement 5.7855.7855.785Fuel tankL140140140Transmission 1/1 automatic transmissionWorking pressureMPa202020

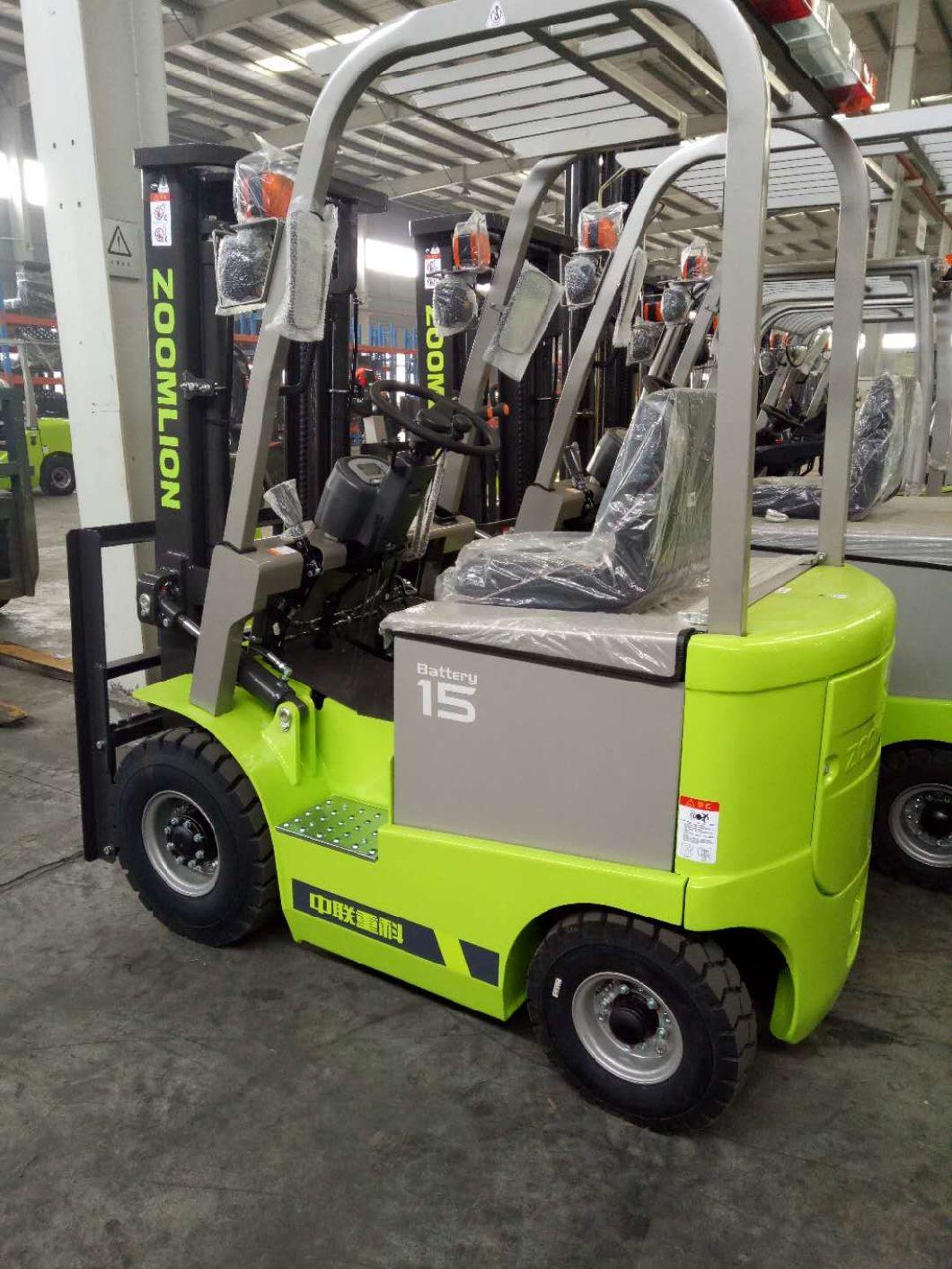

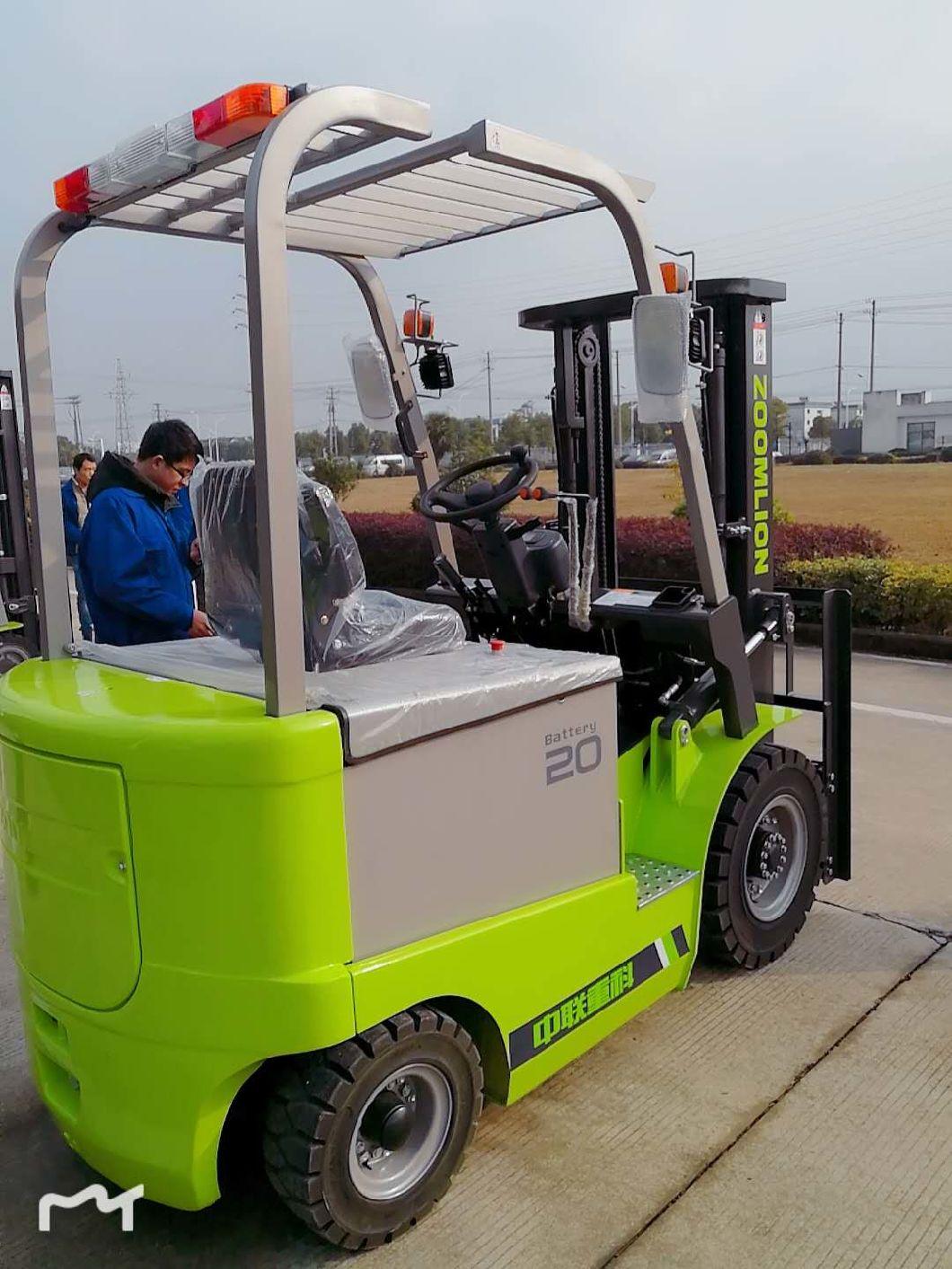

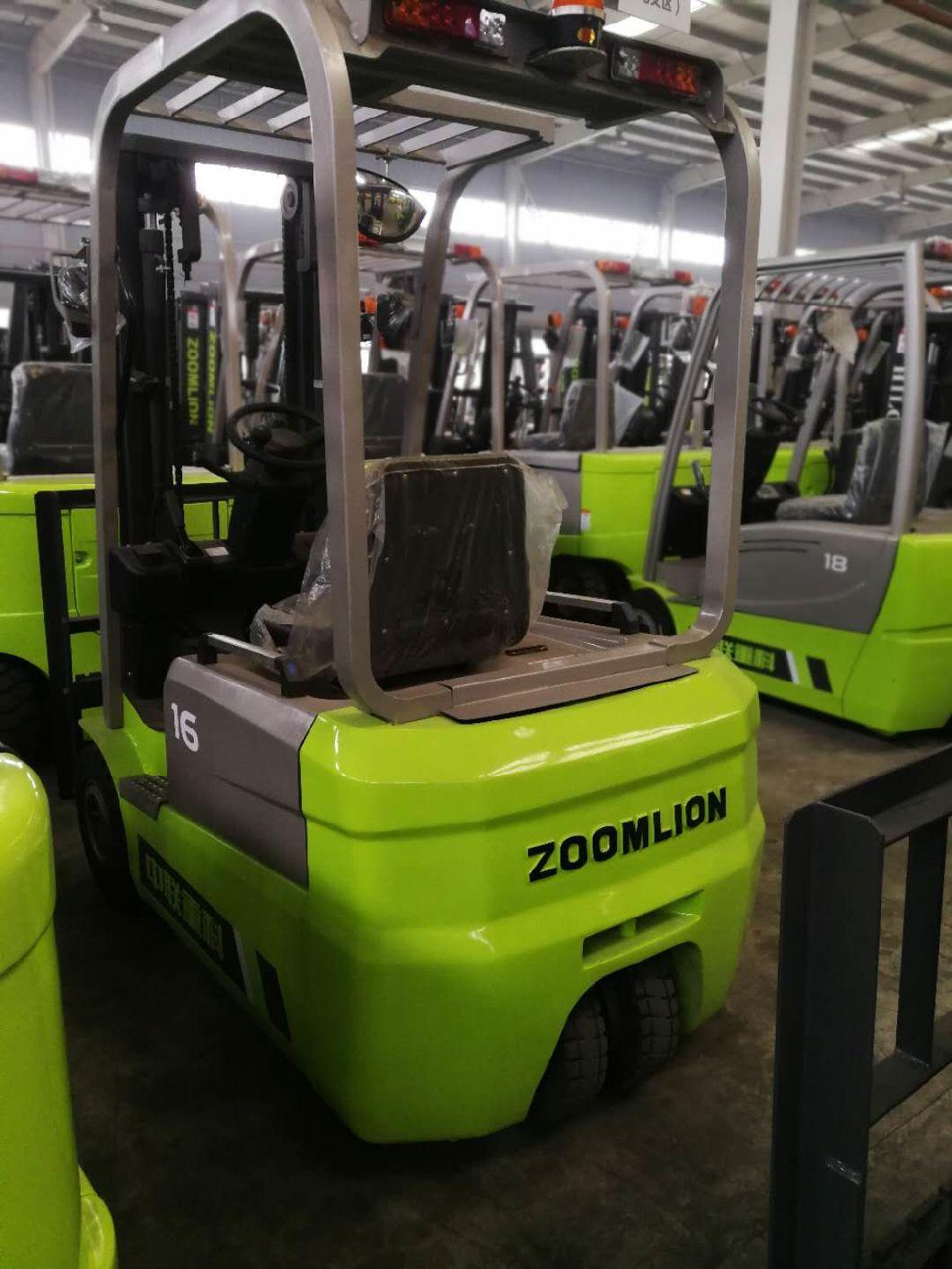

More pictures:



Our factory
