Product Description

DAF VCI Lite V1.1 Professional Diagnose Tool for DAF

Notice:
1. You can pay to get DAF DAVIE DEVELOPER TOOL and DAF DAVIE(DEVIK) for Adblue Removal at $150 only to work with DAF VCI Lite.
2. DAF for now run from image, image is based on win7, and official DAF manufacturer recommend only win7.
3. You can make Davie3 SW from this image: https://mega.nz/#!roBCRaYY!ARZtWRkfzHwa_4sX8C_TWltHkp_5_S_hWOCUAiMdDEY
Using acronis restore to your hdd. or if you have enought knowledge you may install fresh copy of DAVIE3 on win7 32bit, and we will make all patch needed to run on DAF VCI lite.

Full install:
http://automan.en.made-in-china.com
http://automan.en.made-in-china.com
http://automan.en.made-in-china.com

or for Medium duty:
http://automan.en.made-in-china.com
http://automan.en.made-in-china.com

if installing from 0 i suggest full install. but if have enough knowledge just restore preinstalld image from acronis Mega link.

Comparison between DAF VCI Lite and VCI560:

DAF VCI lite V1.1 in comparasion to VCI560 has only one part missing, that is not needed for any diagnostic, reprograming, configuring purposes and DAVIE will be fully functional, it will not see ignition from OBD, and does not have status LED and wifi (ONLY USB).

DAF VCI Lite Package Included:

DAF VCI lite
OBD2 cable
16-pin round cable adapter (for older trucks)
USB cable

COMPATIBLE SOFTWARE (Can Be Updated by Official Updates):

 DAF Davie XDc II Runtime 5.6.1 (Windows 7 supported)
 DAF Davie Application 80.01
 DAF Davie Parts Rapido Subset 15.31.F0
Software will be provided in the format of acronis images, no DVD or CD software will be provided.
Software no need activation

DAF VCI Lite Description:

With this kit you can diagnose, troubleshoot and program:
After treatment system.
Auxialiary system.
Break system.
CAB climate system.
Communication system.
Door control system.
Engine system.
HDOBD.
Instrumentation system.
Power supply and ground.
Retarder system.
Safety system.
Security system.
Steering control system.
Suspension system.
Tachograph.
Transmission system.
Vehicle control system.

Direct Testing mode allows immediate selection of individual control units and direct test of their components and functions.

Guided Diagnosis. Using the combination of self-diagnosis symptoms (content of fault memory) and observed symptoms (complaints from customer), the system generates a test plan and guides the user along the shortest route to the suspect component.

HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.

EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.

You can switch between HD-OBD mode and EOL mode.

For special programming and Service Level see DAVIE Developer Tool (DEVIE DT). (This not included in the package)

For SCR/AdBlue removal, power increase, language programming see DAVIE Configurator (DEVIK). (This not included in the package)

Supported languages: English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

DEFAULT LANGUAGE PROVIDED FOR USER IS ENGLISH !!!!

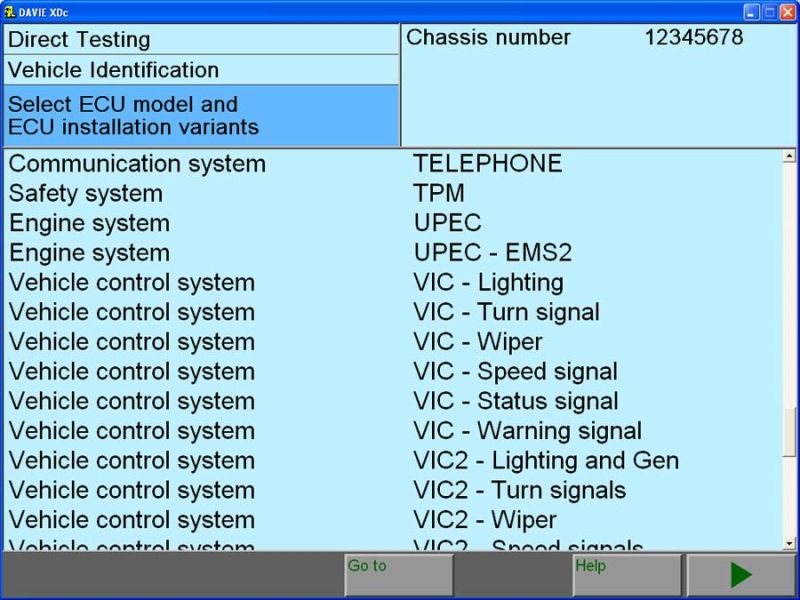

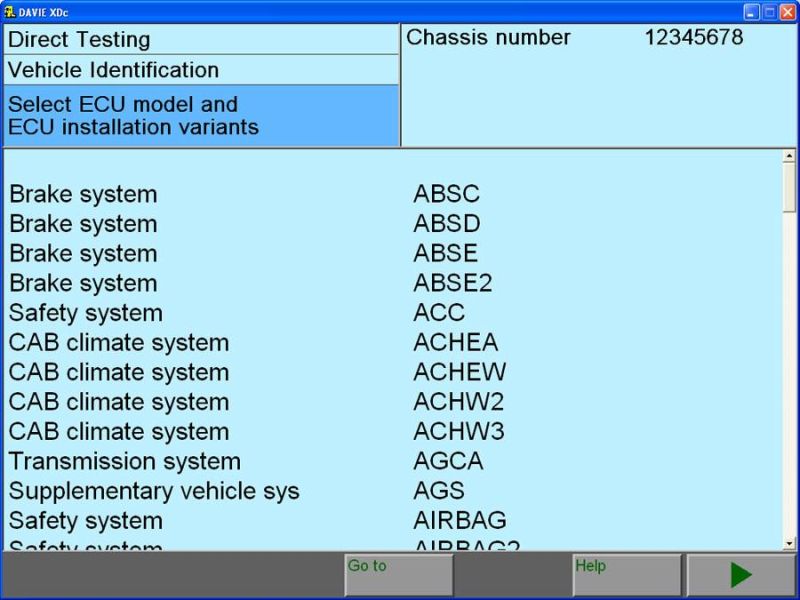

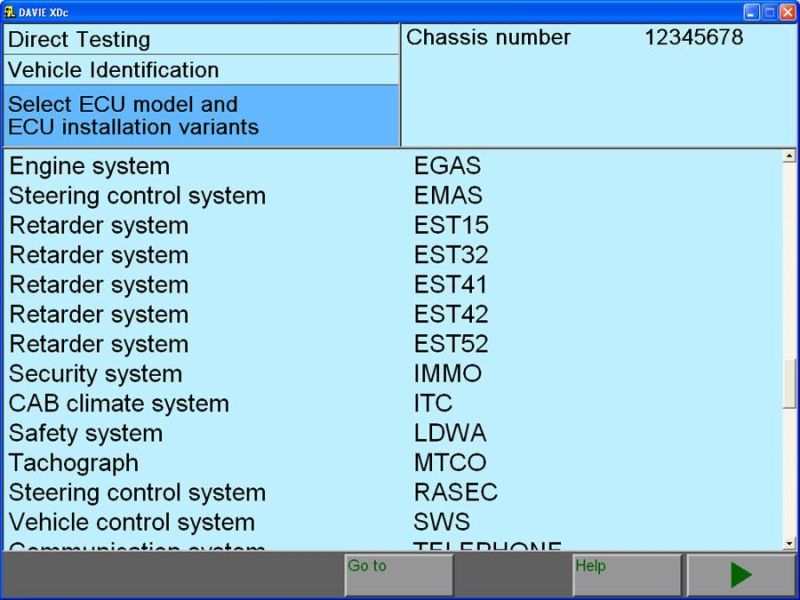

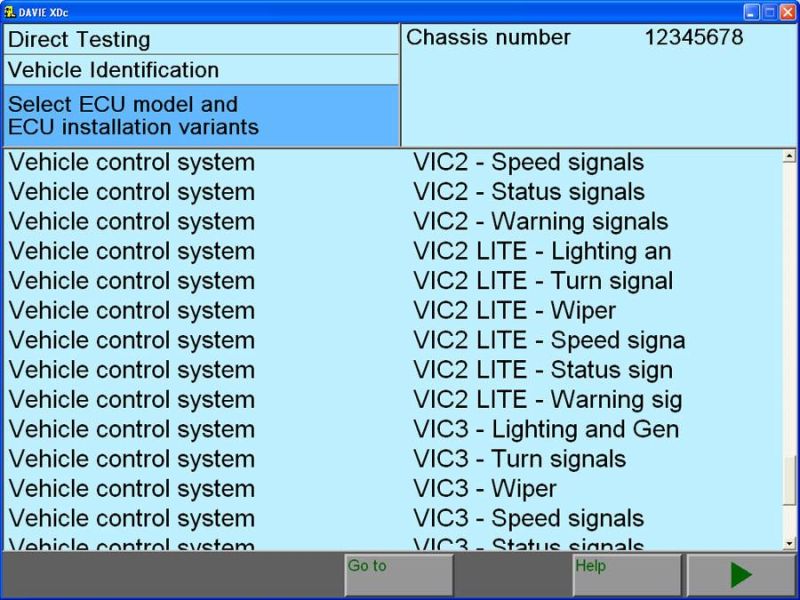

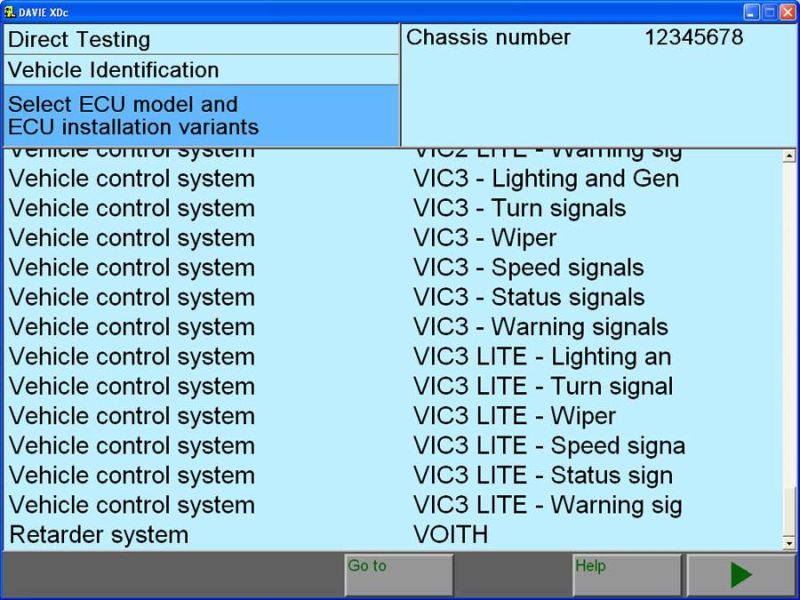

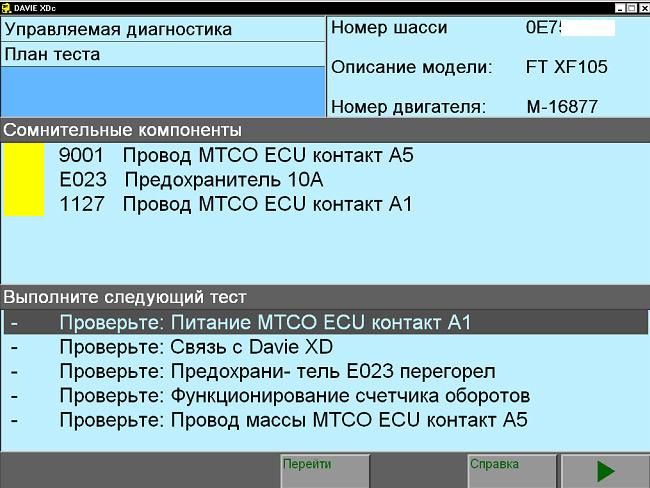

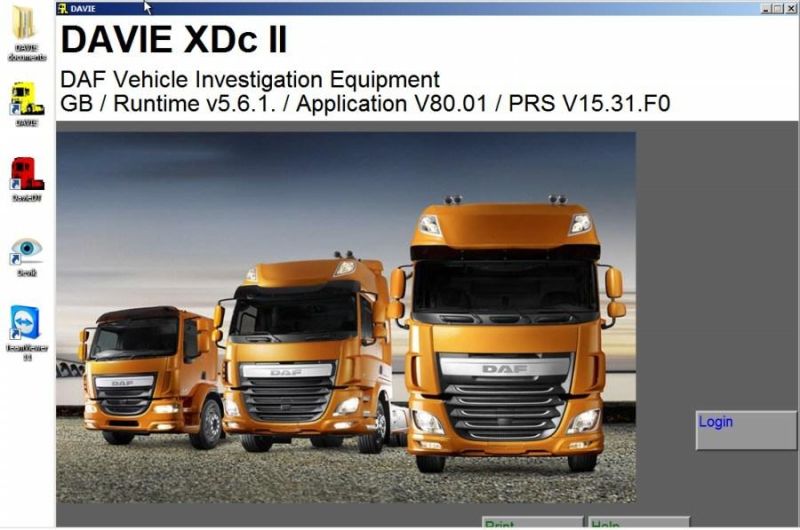

DAF VCI Lite V1.1 Software Display:

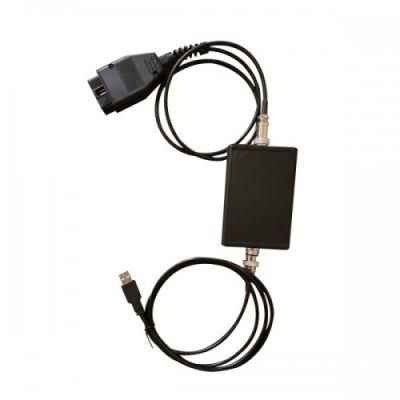

DAF VCI lite V1.1 Test Photo:
