• Model NO.：HF20
• Fuel：Manual
• Load center：500mm
• Lift height：110mm
• Condition：New
• Fork Length：1100mm,1200mm
• Capacity：2500kg
• Lifting Height：110mm
• Transport Package：Container
• Specification：Could be designed by buyers
• Trademark：LTMG
• Origin：China
• HS Code：8427900000
• Production Capacity：2000sets,Year

ModelHF20Capacity(kg)2500Min.fork height(mm)85/75Max.fork height(mm)195/185Lifting height(mm)110Fork length(mm)1150/1220Single Fork width(mm)160Fork overall width(mm)550/685Fork wheel-single(mm)Φ80X93/74X93Fork wheel-tandem(mm)Φ80X70Steering Wheel(mm)Φ180X50Self Weight(kg)73-92Qty/20 feet container(pcs)180/144

Product Features

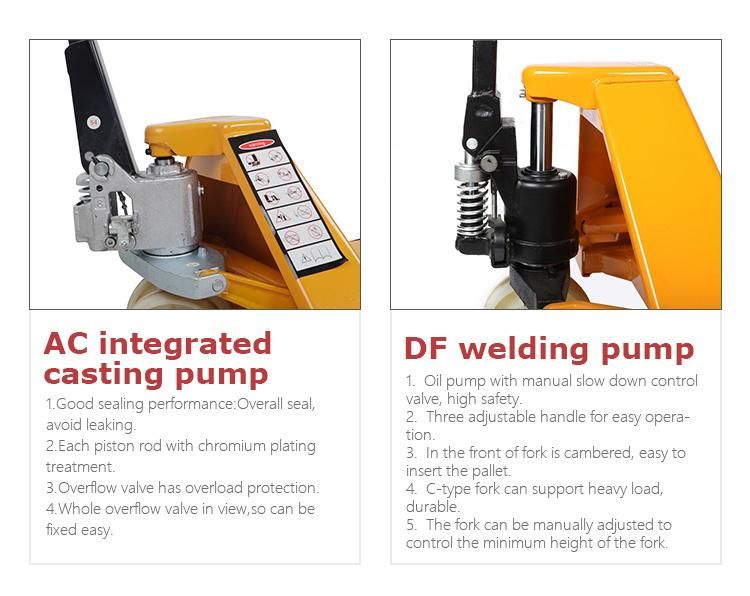

1) Galvanizing fully-sealed pump,double tandem nylon wheels.

2) Strengthen body and fork, 210 steering arc, small turing radius, fork lowering speed is controllable.

3) Entry/exit roller, easy to entry into the pallet,equipment with over-load valve, 3 position hand control,
durable, versatile and easy to use.

4) Heavy duty steel adjustable push rods/steel c-channel/handle base, Powder-coat paint finish.

5) Rebuildable pump, Handle bolt designed for easy assembly and removal.

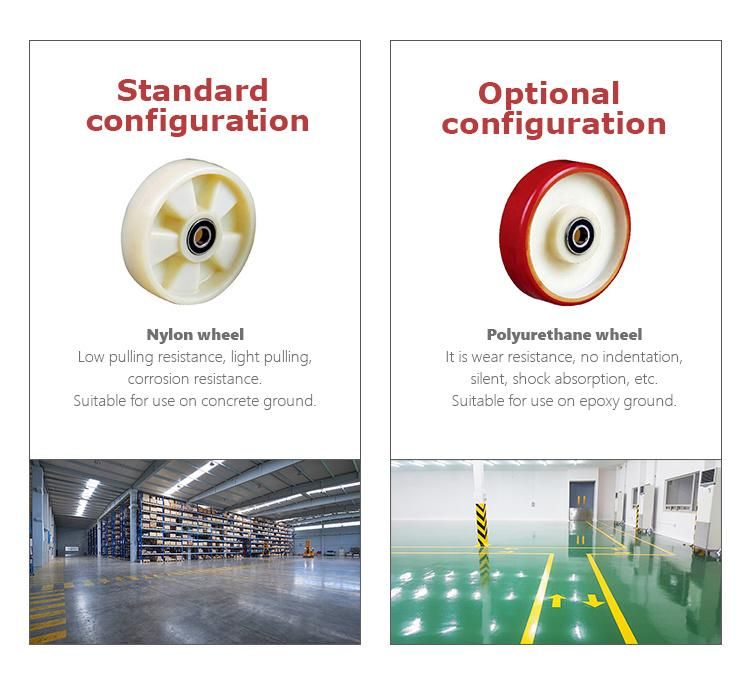

6) Options: PU/Rubber load wheels, single wheel,stainless steel and galvanized trucks available,various
fork lengths and widths,backrests.



After-sales Service

LTMG always treat after-sale service important as the same as product quality.

LTMG grants our clients a One Year warranty for any machine purchased from us.

LTMG can also help clients coordinate with trained service personnel to provide you detailed and
extensive knowledge about your specific machine. With our technical advises, your machine service
life can be significantly prolonged and sustained with high capacity.
