• Model NO.：MF
• Condition：New
• Certificate：ISO9000
• Capacity：1000kg-3000kg
• Material：Steel
• Style：Double Faced
• Entry Type：2-Way
• Transport Package：Nude Package
• Specification：2293*1170mm
• Trademark：MIMA
• Origin：China
• HS Code：8427109000
• Production Capacity：5000 Units , Year

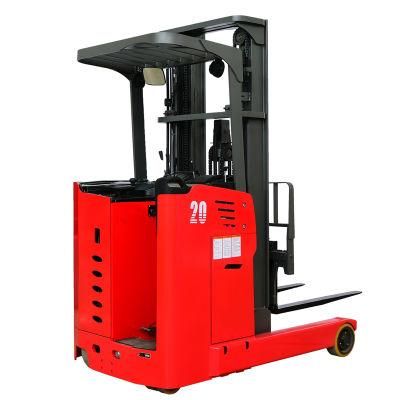

  Electric reach truck  Model   MF20  MF25  MF30  Load capacity         kg  2000  2500  3000  Load center mm  500  500  500  Lifting height     mm  3000  3000  3000  Mast closed height   2082  2082  2082  Tilting angle (forward- backward)α/β(°)  3/5  3/5  3/5  Wheel type   PU  Load wheel sizemm  Φ254*104  Φ267*135   Φ267*135  Drive wheel sizemm  Φ343*108  Φ380*165   Φ380*165  Balance wheel sizemm  Φ180*76  Φ204*76   Φ204*76  Reach strokemm  717  825  925  Fork sizemm 1070x100x40  1070x100x45  1070x125x45   Fork outside widthmm  222-750  222-750  250-750  Overall lengthmm  2293  2387  2487  Overall width     mm  1170  1270  1270  Overall height fork raised(with backrest)mm  3960  3960  3960  Overhead guard height mm  2250  2300  2300  Turning radiusmm  1784  1784  1784  Aisle width for pallet 1000*1200mmmm  2750  2894  3045  Aisle width for pallet 800*1200mmmm  2762  2762  2762  Driving speeds (Loaded/ Unloaded)km/h  8/10  8/10  8/10  Lifting speeds (Loaded/ Unloaded)mm/s  220/380  240/320  220/320  Driving motor(S2-60min)kw  4.5  5.5  5.5  Lifting motor(S3-15%)kw  7.5  8.6  8.6  Total weight( with battery)kg  2750  3300  3400  Brake type   Mechanical  Battery voltageV/Ah  48/300   48/400  48/400  Steering system   EPS

Why choose us

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service. We are looking forward to better cooperation all over the world.

Our workshop and warehouse




Many of our models are in stock, for more details please feel free to contact us.

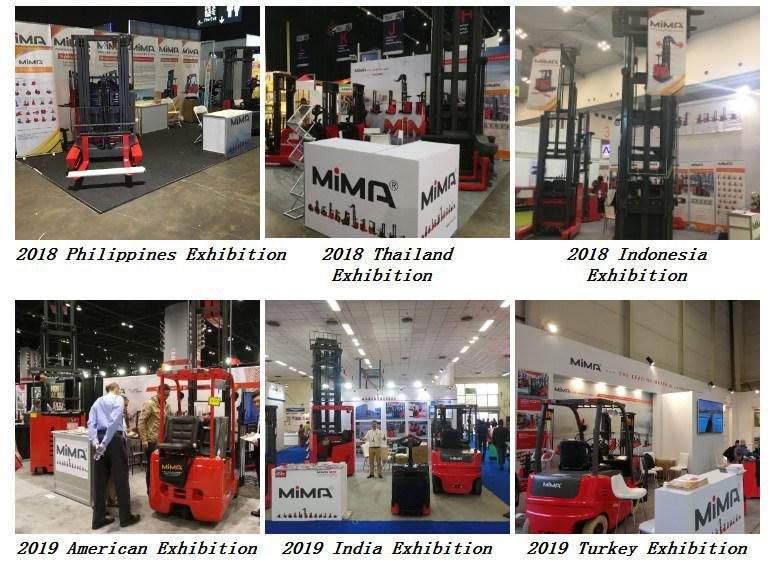

Exhibition
