• Model NO.：MB
• Lift height：3000~5000mm
• Condition：New
• Electric Controller：Curtis
• Loading Capacity：2000kg
• Transport Package：Standard Packing
• Specification：CE
• Trademark：MIMA
• Origin：China
• HS Code：8427109000
• Production Capacity：More Than 3000PCS,Year

Basic Info.

Model NO. MB Lift height 3000~5000mm Condition New Electric Controller Curtis Loading Capacity 2000kg Transport Package Standard Packing Specification CE Trademark MIMA Origin China HS Code 8427109000 Production Capacity More Than 3000PCS/Year

Product Description

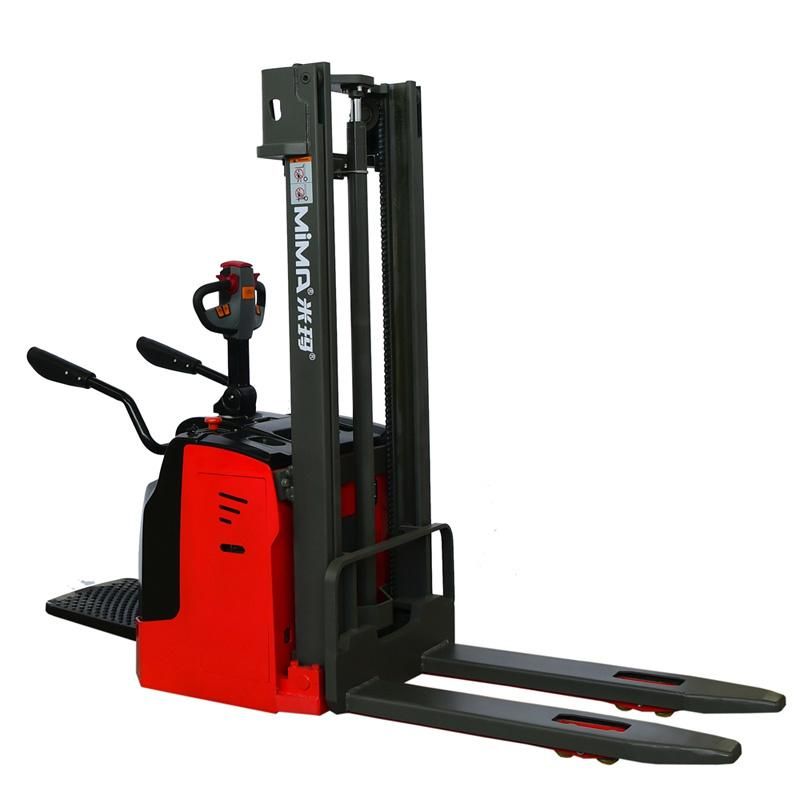

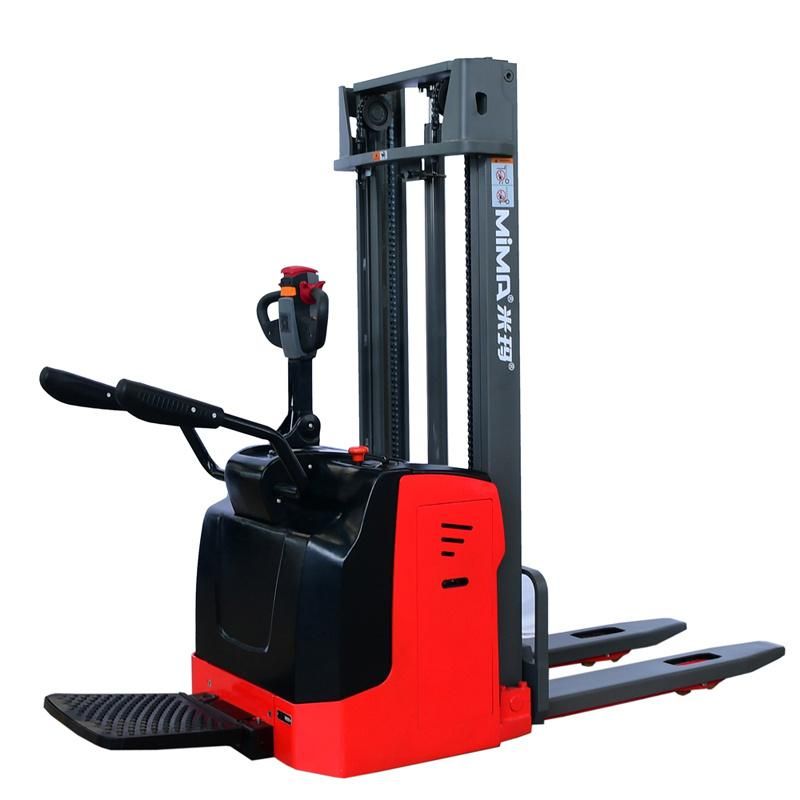

China supplier electric hydraulic pallet stacker forklift with CE
 Product details1.Maintenance free AC motor
2.The 5 pivots and low gravity design provide good stablity.
3.It ensures safety with the function of slop anti-skit, reverse brake and emergency brake.
4.With down buffer function, when the fork reach a certain height, the fork speed will decrease to protect cargos.
5.Arm rest safety function: when the arm rest is put down, the travlling speed will decrease 30-40%. It incrase operator  safety.
6.The turnning speed limit protect forklift from turnning over.
7.When the fork reach the highest position, the power will be cut off.
8. The dismountable pedal make it convenient to change the driving wheel.




Brand		MIMA	MIMA
Model		MB15	MB20
Power type		Battery	Battery
Operation type		Stand on	Stand on
Service weight(incl. battery)	kg	1270	1300
Rated capacity	kg	1500	2000
Load center	mm	600	600
Lift height	mm	3000	3000
Fork size	mm	1150*190*56	1150*190*56
Front overhang	mm	428	428
Turning radius	mm	1755	1755
Max. gradeability	%(tanθ )	8/10	6/8
Driving speed(load,unload)	km/h	5/6	5/6
Lifting speed(load,unload)	mm/s	125/175	125/175
Lowering speed(load,unload)	mm/s	115/135	95/100
Brake type		Electromagnetic	Electromagnetic
Steering system		EPS	EPS

Why choose us

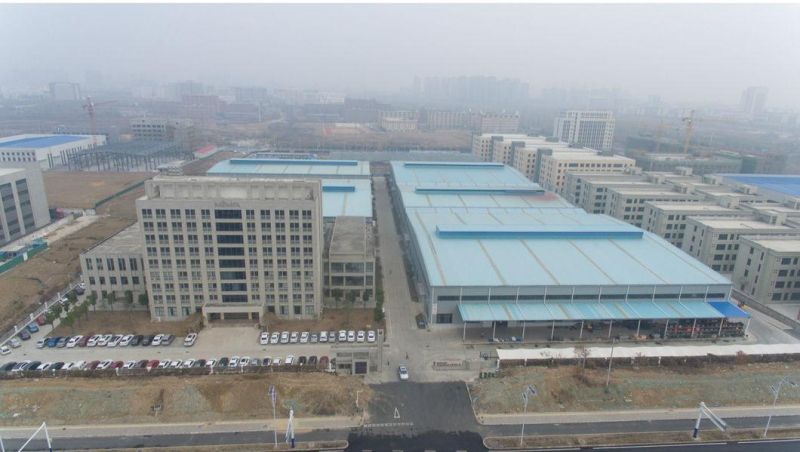

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

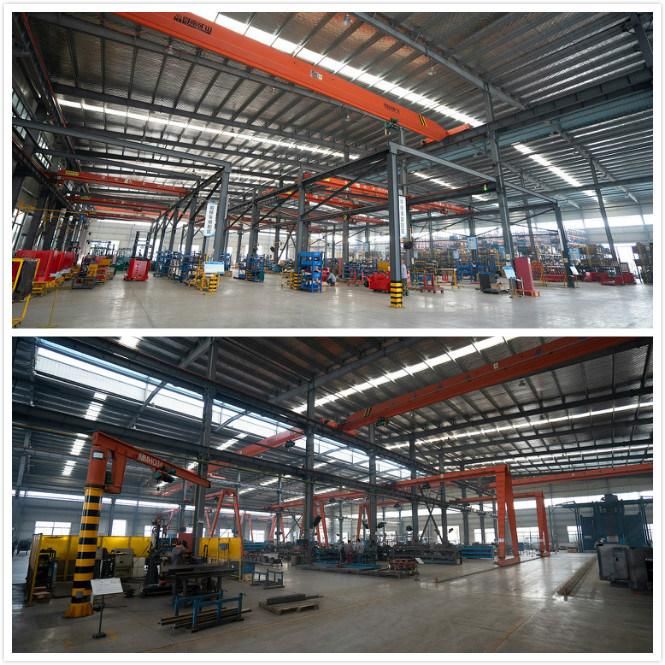

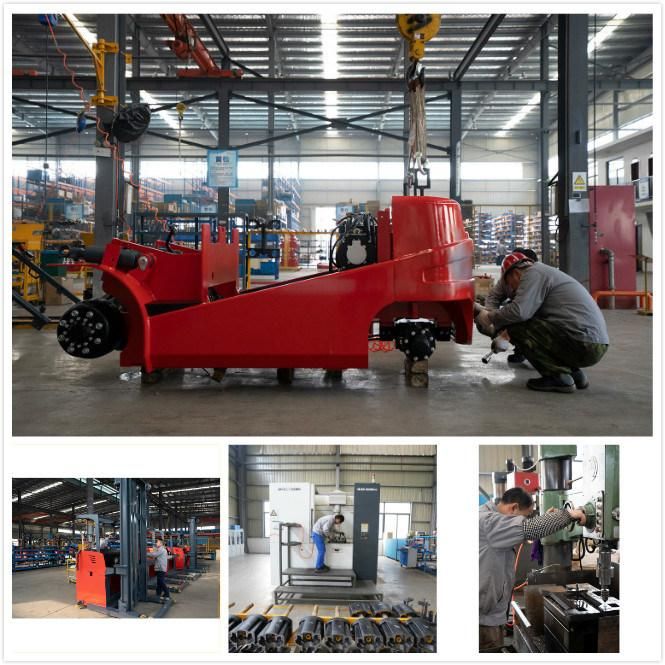

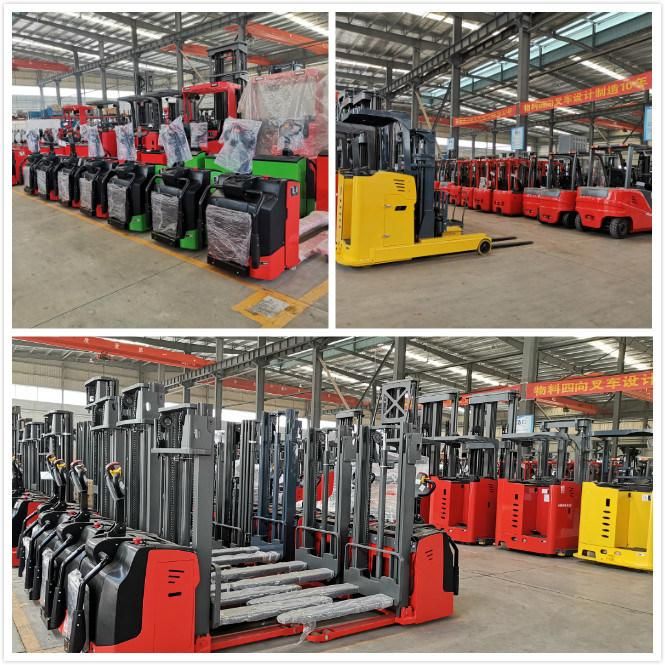

Our workshop and warehouse



Many of our models are in stock, for more details please feel free to contact us.

Package and delivery



Exhibition
