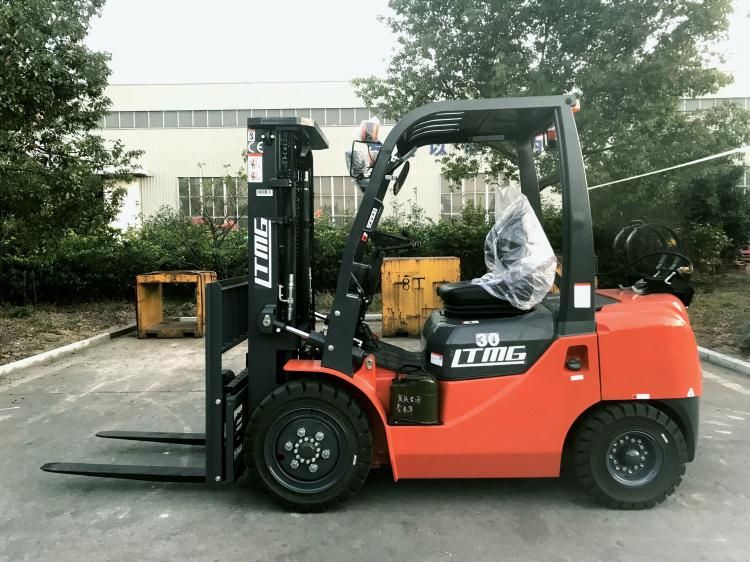

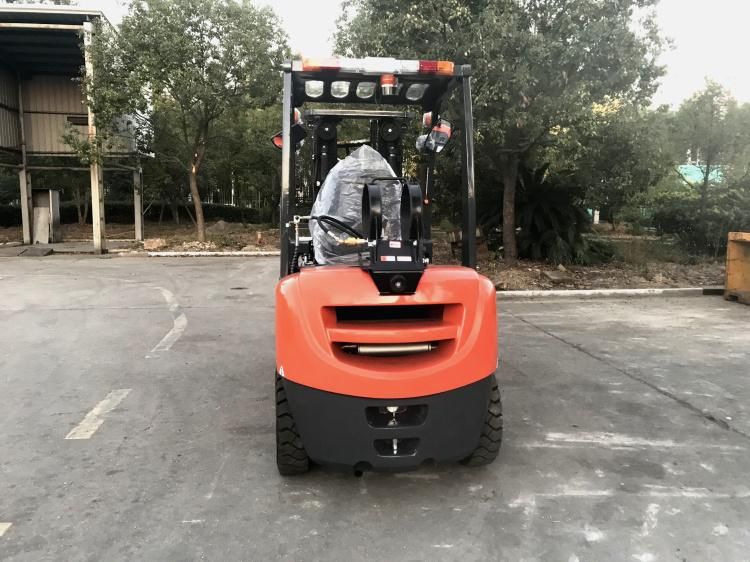

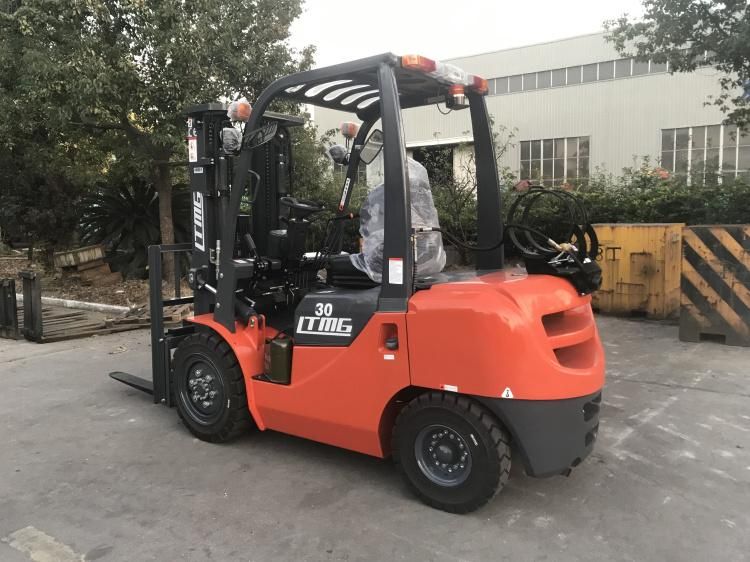

Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices

XIAMEN LTMG CO., LTD.
  • Cab Location：Adjustable
  • Type：LPG Forklift
  • Power：LP Gas Engine
  • Load Capacity：3 Ton
  • Fuel：LPG
  • Load center：500mm

Base Info

  • Model NO.：FG30
  • Lift height：3000mm
  • Condition：New
  • Item Name：Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forkli
  • Brand：Ltmg
  • Product Type：LPG Forklift
  • Load Centre：500mm
  • Min. Turning Radius(Outside)：2440mm
  • Wheelbase：1700mm
  • Ground Clearence：140 mm
  • Warranty：1 Year , 2000 Working Hours
  • Rated Output/r.p.m.：35.6,2100
  • Color：Customized by Customers
  • Certificate：Ce,ISO
  • Overall Width：1225mm
  • Max. Gradeability：20%
  • Service Weight：4300kg
  • Transport Package：Container
  • Specification：2730mm*4150mm*1225mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：800sets,Year

Description

General1Model FG302Power type LPG3Rated Capacitykg30004Load centremm500Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1070×125×457Mast title AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm4809Ground clearance (Bottom of mast)mm14010Overall DimensionLength to face of fork (without fork)mm273011Overall widthmm122512Mast Lowered Heightmm211513Mast Extended Height (with backrest)mm415014Overhead Guard Heightmm209015Turning Radius (outside)mm244016Min. intersecting aislemm2960Performance17SpeedTravel(no load)km/h2018Lifting(full load)mm/s51019Max Gradeability%20Chassis 20TireFront 28×9-15-12PR21Rear 6.50-10-10PR22Wheelbasemm170023Service Weightkg4300Power&Transmission24BatteryVoltage/Capacity                                      V/Ah12/8025EngineModel K2526Manufacture GCT(NISSAN)27Rated output/r.p.m.kwt/r.p.m35.6/210028Rated torque/r.p.m.N·mt/r.p.m176.5/160029No.of Cylinder 430Bore×Strokemm89×10031Displacementcc248832 Fuel Tank CapacityL6033TransmissionType Hydraulic34StageFWD/RVS 1/135Operating pressure for attachmentMpa19
Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices
Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices
Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices


Product Features

1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

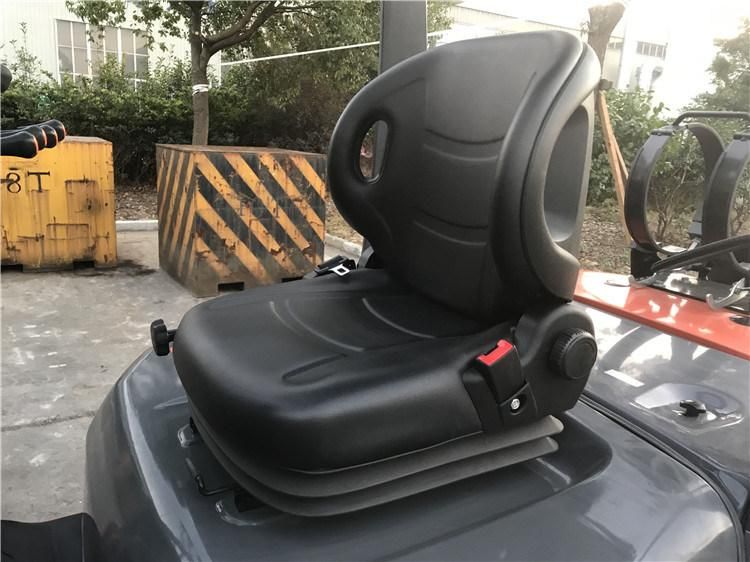

Toyota's suspension seat

Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices

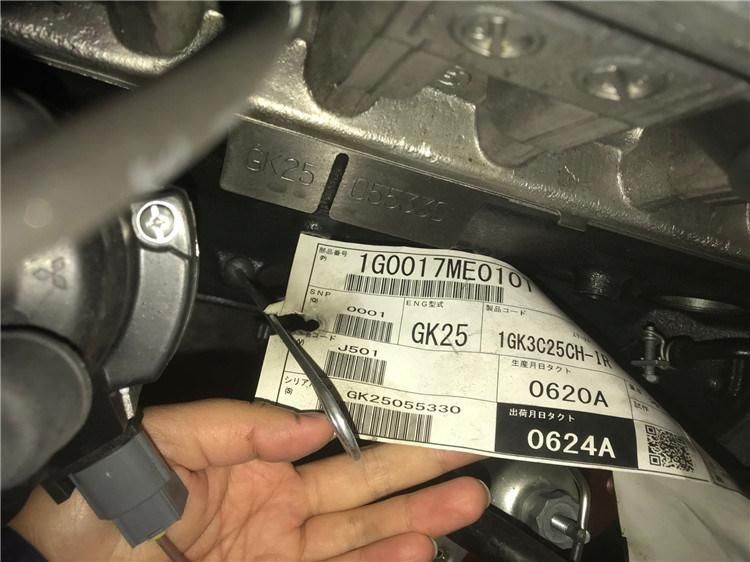

Original Japanese Niaasan K25 engine
Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices

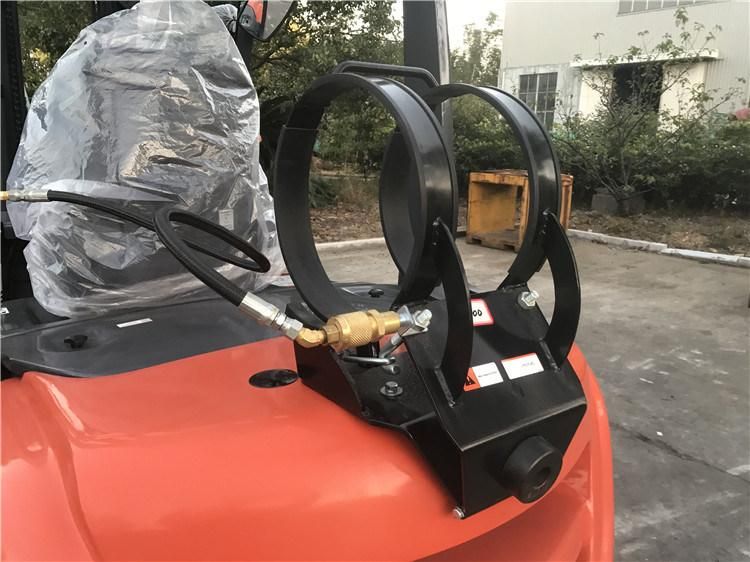

Optional cylinder size

Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices



Packing & Delivery

Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices

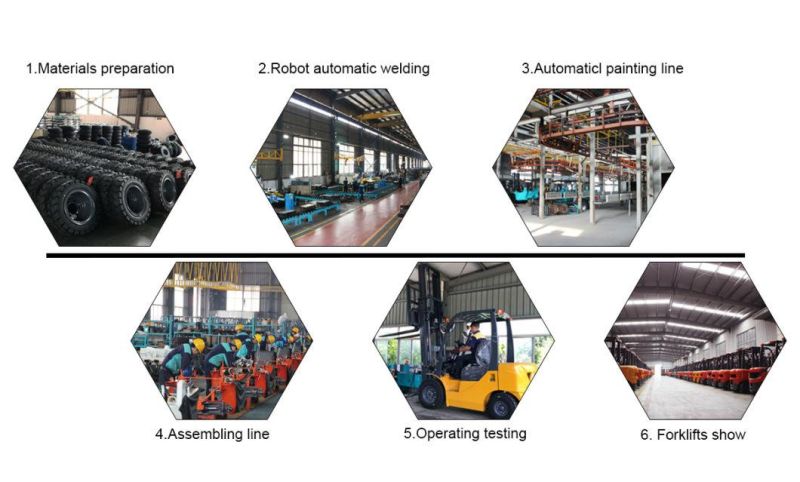

About us

LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.

At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.

LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 110 countries and regions around the world.
Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices
Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices


Customers Show

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.

Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices

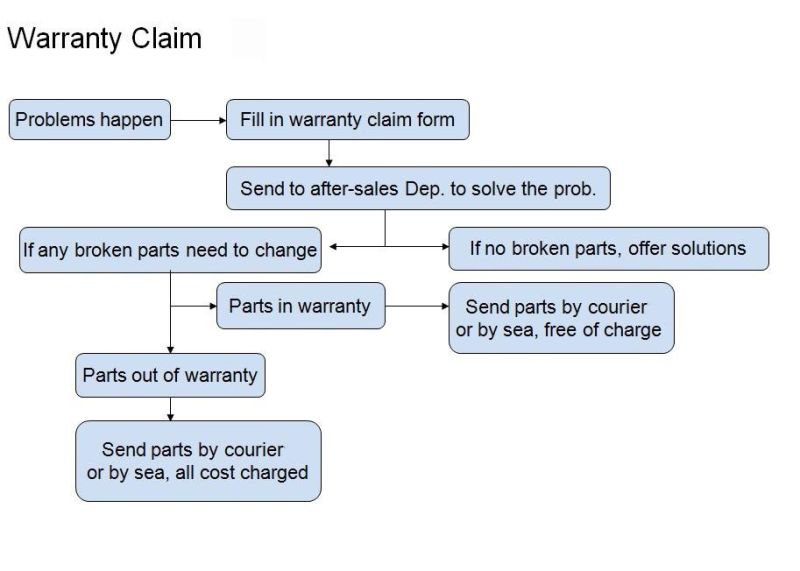

After-sale service

LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients twelve months or 2000 working hours for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.

Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices
Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forklift Prices


FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
