Hot Sale 3 Ton Diesel Forklift Truck for Sale
Jinan Shine International Trade Co., Ltd.- Cab Location：Adjustable
- Type：Heavy Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD30
- Lift height：>5000mm
- Condition：New
- Engine：Japan Isuzu C240 or China Xc490
- Hydraulic System：Japan Shimadzu
- Gear：USA Eaton Steering Gear
- Transmission：Automatic Transmission
- Seat：Luxury Suspension Seat
- Radiator：Copper Radiator
- Light：All LED Light
- Mirror：3 Way Wider Back Mirror
- Overhead Guard：Water Proof Overhead Guard
- Spare Parts：Free Filters and Seals Maintance Parts
- Transport Package：Container Package
- Specification：3 Ton
- Trademark：SNSC
- Origin：China
- HS Code：84272090
- Production Capacity：8000sets,Year
Description
SpecificationsUnit FD30 1 Characteristics Power - diesel 2 Rated Capacity kg 3000 3 Center of load mm 500 4 Lifting height mm 3000 5 Free lifting height mm 145 6 Forks L×W×H mm 1070×125×45 7 Tilt Forward/Backward . 6/12 8 Min.turning radius mm 2600 9 Min.ground clearance(Mast) mm 120 10 Overhead guard height mm 2170 11 Front overhang mm 545 12 Performance Max.traveling speed(loaded) km/h 20 13 Max.lifting speed(loaded/empty) mm/s 470/520 14 Drawback pull/Grade ability kN/% 18/20 15 Dimensions Overall length (without fork) mm 2825 16 Overall width mm 1230 17 Mast lowered height mm 2065 18 Mast extended height mm 4260 19 Chassis Tire Front - 28×9-15-12PR 20 Rear - 6.50-10-10PR 21 Wheelbase mm 1800 22 Tread width Front/Rear mm 1000/970 23 Curb weight None-load kg 4250 24 Powertrain Battery Voltage/Capacity V/Ah 12/90 25 Engine Model - XC490BPG 26 Rated power kw/r.p.m 37/2650 27 Rated torque Nm/r.p.m 148/2000 28 Cylinder amount - 4 29 Bore×Stroke mm 90×105 30 Displacement - 2.54 31 Fuel tank L 70 32 Transmission - 1/1 automatic transmission 33 Working pressure MPa 17.5
Forklift Catalogue:
Diesel Forklift Truck Range from 1 to 10tons; (FD30,FD35,FD40,FD45,FD50,FD60,FD70)
Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20, FB25, FB30, FB35)
LPG & Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15, FL20, FL25, FL30, FL35)
Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck / Stacker ; (YB16,YB20,DB16,DB20)
Our Company:

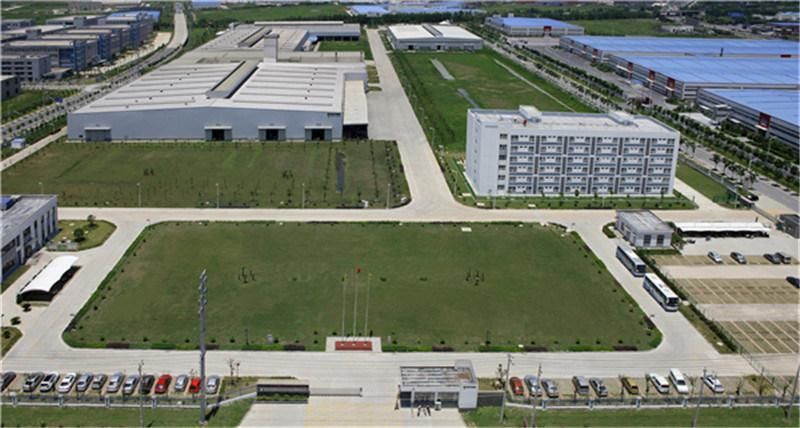

We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product , reasonable price , efficient production time and good after-sales service" as our tenet.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands for FD30 3ton diesel forklift truck price for sale hot sale 3 ton diesel forklift truck for sale.
