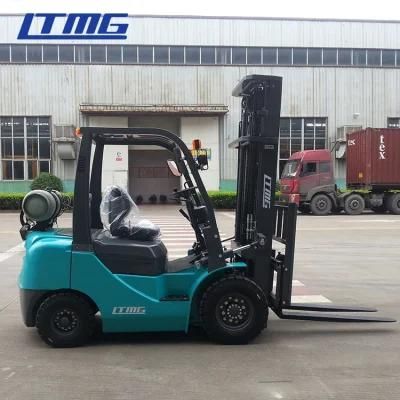

Good Service LPG&Gasoline Mini for Sale Mechanical Electric LPG Forklift
Xiamen LTMG Machinery Co., Ltd.- Warranty：1 Year or 2000 Working Hours
- Cab Location：Not Adjustable
- Type：LPG&Gasoline Forklift
- Power：Gasoline Engine
- Load Capacity：1T - 5T
- Fuel：Gasoline
Base Info
- Model NO.：FG20
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Power Type：LPG&Gasoline
- Fork Size：920*120*35mm
- Weight：2820kg
- Wheelbase：1400mm
- Tire Type：Pneumatic
- No. of Cylinder：4
- Transmission：Hydraulic
- Color：Customize
- Transport Package：Container
- Specification：2245mm*1070mm*2060mm
- Trademark：LTMG
- Origin：China
- HS Code：8427209000
- Production Capacity：800sets,Year
Description
Overview
Product DescriptionModel FG15 FG20 FG25 FG30 FG35 Rated Capacity 1500kg 2000kg 2500kg 3000kg 3500kg Load Centre 500mm 500mm 500mm 500mm 500mm Lift Height 3000mm 3000mm 3000mm 3000mm 3000mm Fork Size 920×120×35 1070×120×40 1070×120×40 1070×125×45 1070×125×50 Length to face of fork(Without fork) 2285mm 2355mm 2355mm 2730mm 2775mm Overall Width 1086mm 1110mm 1110mm 1225mm 1225mm Overhead Guard Height 2040mm 2080mm 2080mm 2090mm 2090mm Turning Radius (outside) 2055mm 2110mm 2110mm 2440mm 2480mm Wheelbase 1400mm 1400mm 1400mm 1700mm 1700mm Engine GCT GCT GCT GCT GCT Model FG40 FG45 FG50 FG60 FG70 Rated Capacity 4000kg 4000kg 5000kg 6000kg 7000kg Load Centre 500mm 500mm 600mm 600mm 600mm Lift Height 3000mm 3000mm 3000mm 3000mm 3000mm Fork Size 1070×125×50 1070×125×50 1220×150×60 1220×150×60 1220×150×70 Length to face of fork(Without fork) 2890mm 2890mm 3440mm 3440mm 3565mm Overall Width 1410mm 1410mm 2010mm 2010mm 2010mm Overhead Guard Height 2120mm 2120mm 2430mm 2430mm 2430mm Turning Radius (outside) 2700mm 2700mm 3250mm 3250mm 3350mm Wheelbase 1900mm 1900mm 2250mm 2250mm 2250mm Engine GCT PSI PSI PSI PSI
Product Specification
