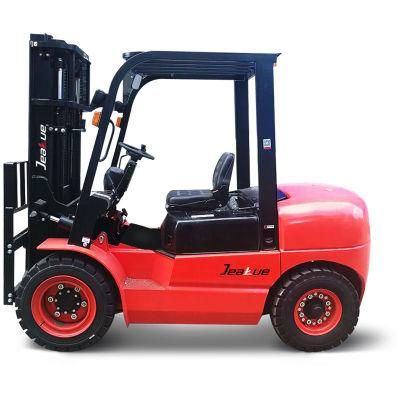

Diesel Forklift Cpcd30 with Isuzu Engine
Wuhan Fusen Machinery Co., Ltd.- Cab Location：No Cabin
- Type：Ordinary Combustion Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：CPCD30
- Lift height：3000~5000mm
- Condition：New
- Engine：Isuzu C240
- Lifting Height：3m to 6m
- Standard Mast：2-Stage
- Fork Length：1070mm
- Transport Package：Nude
- Specification：3ton
- Origin：China
- HS Code：84272090
- Production Capacity：500PCS,Month
Description
Model
CPCD30
Load capacity
mm
3000
Overall dimension(L*W*H)
mm
2680*1225*2070
Load center
mm
500
Tilting angles(forward-backward)
6°/12°
Free lift
mm
305
Max lifting speeds(without load/with load)
mm
520/470
Max driving speeds(without load/with load)
mm
20/18.5
Max lowering speeds(without load/with load )
mm
520/550
Max towing speeds(without load/with load )
N
1038/1146
Max gradeability(without load/with load )
%
15
Minintersecting aisle
mm
2885
Forks(L*W*H)
mm
1070*125*45
Min ground clearance at lower point
mm
110
Weight distribution with load(front/rear)
kg
6500/870
Weight distribution without load (front/rear)
kg
1780/2630
Battery voltage/capacity
v/ah
12/100/20h
Service brake
Hydraulic-foot pedal
Parking brake
Mechanical-hand lever
Internal combustion engine modle
Isuzu C240
Internal combustion engine rate horsepower
Kw/r.p.m
37
Internal combustion engine rate torque
N.m/r.p.m
148
Internal combustion engine number of cylinder
4
Internal combustion engine displacement
L
2.54
Internal combustion engine fuel tank capacity
L
52
Total weight
kg
4410
