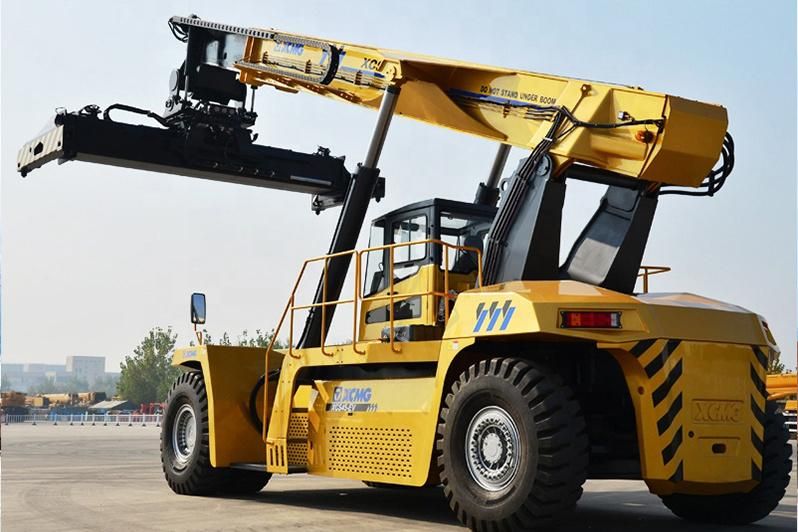

Container Reach Stacker with 45 T Loading Capacity
Shanghai Super-Above Industry Holdings Co., Ltd.- Cab Location：Not Adjustable
- Type：Stacker
- Power：Diesel Engine
- Load Capacity：＞42T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：SARS45
- Lift height：>5000mm
- Condition：New
- Max. Lifting Height：15100 mm
- Max. Lifting Speed：425 mm,S
- Max. Travel Speed：27 Km,H
- Rated Lifting Capacity：45000 Kg
- Transport Package：Naked in Ship
- Origin：Jiangsu, China
- HS Code：8427109000
- Production Capacity：10000PC,Year
Description
Rated lifting capacitykg 45000 Max. lifting height mm 15100 Max. lifting speed mm/s 425 Max. travel speed km/h 27 Engine rated power kW /(r/min) 265/2100
FEATURES
(1) Efficient operation
Unique low speed large torque optimal transmission chain, max. travel speed of 27 km/h and high power performance
contribute to quick job site transfer. Innovative oil cylinder differential control technology and vertically lifting spreader
technology contribute to rapid working
speed, leading to 15% improvement in efficiency while lifting and stacking containers.
(2) Safe and free from worry
With accumulation of experience for 75 years in crane safety control and the technologies developed for container reach
stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading, driving safety
active protection, detection of driver in place, the active safety of the machine during driving and lifting operation are improved
to the greatest extent.
(3) Energy-saving and economical
Three energy-saving measures, such as flow self-adaptive load sensing hydraulic system, efficient power transmission
system and transmission ECO control, lead to high transmission efficiency, less energy loss, reduced fuel consumption
by 10% ~ 15%.
(4) Comfortable driving
Fourteen humanization-oriented designs, such as movable panorama driver's cab, man-machine interactive system for
providing abundant information and perfect lighting system, etc. offer more comfortable driving and operating environment.
FEATURES
(1) Efficient operation
Unique low speed large torque optimal transmission chain, max. travel speed of 27 km/h and high power performance
contribute to quick job site transfer. Innovative oil cylinder differential control technology and vertically lifting spreader
technology contribute to rapid working
speed, leading to 15% improvement in efficiency while lifting and stacking containers.
(2) Safe and free from worry
With accumulation of experience for 75 years in crane safety control and the technologies developed for container reach
stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading, driving safety
active protection, detection of driver in place, the active safety of the machine during driving and lifting operation are improved
to the greatest extent.
(3) Energy-saving and economical
Three energy-saving measures, such as flow self-adaptive load sensing hydraulic system, efficient power transmission
system and transmission ECO control, lead to high transmission efficiency, less energy loss, reduced fuel consumption
by 10% ~ 15%.
(4) Comfortable driving
Fourteen humanization-oriented designs, such as movable panorama driver's cab, man-machine interactive system for
providing abundant information and perfect lighting system, etc. offer more comfortable driving and operating environment.
